Product Specifications
| CUDA Cores | 1536 |
| Core Speed | 1059 MHz |
| Boost Speed | 1111 MHz |
| Memory Size | 4096MB GDDR5 |
| Memory Interface | 256-bit |
| Memory Frequency | 7010 MHz |
| TDP | 230W Active |
| SLI | 3-Way SLI |
| Multi-Screen | 4 Concurrent Screens, NVIDIA 3D Surround |
| Outputs | DVI-I, DVI-D, HDMI®, DisplayPort 1.2 |
| Resolution | 2560x1600 (Digital) |
| Power Input | 1x 8-pin PCI-E Power, 1x 6-pin PCI-E Power |
| Bus Type | PCI-Express 3.0 16x |
| UPC | 751492568317 |
Key Features
- NVIDIA GPU Boost 2.0
- NVIDIA Adaptive Vertical Sync
- NVIDIA TXAA & FXAA Technology
- NVIDIA Surround™
- Support for four concurrent Displays* including:
- Two Dual-Link DVI
- HDMI 1.4b
- DisplayPort 1.2 - Microsoft® DirectX® 11.1
- NVIDIA PhysX® technology
- NVIDIA 3D Vision® - Ready
- NVIDIA SLI®-Ready
- NVIDIA Shield™ - Ready
- NVIDIA CUDA® technology
- PCI Express 3.0 support
- OpenGL 4.3 support
- OpenCL™ support
Requirements
- PCI Express compliant motherboard with one dual-width x16 graphics slot
- One 8-pin and One 6-pin PCI Express supplementary power connectors
- Minimum 600W or greater system power supply (with a minimum 12V current rating of 42A)3
- 300 MB of available hard-disk space
- 2GB system memory (4GB or higher recommended)
- Microsoft Windows 8, Windows 7, Windows Vista, or Windows XP Operating System (32 or 64-bit)
- DVD-ROM drive or Internet connection for installation
- DVI, HDMI, DisplayPort or VGA compatible monitor
Package Contents

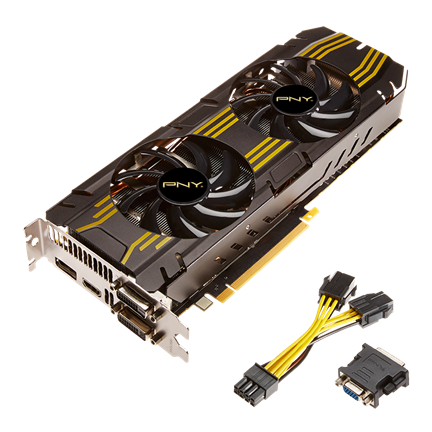

- GeForce® GTX 770 graphics card
- Quick Installation Guide
- Installation DVD, which includes:
- Detailed installation guide
- NVIDIA® Graphics Drivers
- NVIDIA® GeForce® Demos
- PhysX™ System Software - One DVI-to-VGA adapter
- One 8-pin PCIe to Molex Power Adapter
Features & Benefits
SMX
Next generation streaming multiprocessor built from the ground up for incredible performance and power efficiency.
NVIDIA GPU Boost 2.0 Technology
Dynamically maximizes clock speeds based on workload and allows entdusiast class controls such as temperature target and fan controls, extra over-voltage headroom and optimizations for water-cooling solutions. tdis allows greater customization and overclocking options and enables gamers to push performance to new levels.
Microsoft® DirectX® 11
DirectX 11 GPU with Shader Model 5.0 support designed for ultra high performance in the APIĨs key graphics feature, GPU-accelerated tessellation.
NVIDIA® 3D Vision™ Ready4
Support for NVIDIA 3D Vision, bringing a fully immersive stereoscopic 3D experience to the PC A combination of high-tech wireless glasses and advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. In addition, you can stream 3D movies and 3D digital photographs from 3DVisionLive.com in eye popping, crystal-clear quality.
NVIDIA® 3D Vision™ Surround Ready5
with a single GeForce GTX 770 you can expand your PC games across three displays in full stereoscopic 3D for the ultimate ƒ®inside the game experience.* NVIDIA® Surround™ also supports triple screen gaming with non-3D Vision monitors. Add in a fourtd accessory display to get access to your email, web, or other applications while you game.
NVIDIA FXAA Technology
Shader-based anti-aliasing technology available from the NVIDIA Control Panel tdat enables ultra-fast anti-aliasing in hundreds of PC games.
NVIDIA TXAA Technology
Support for new temporal anti-aliasing technique tdat delivers the ultimate combination of image quality and performance.
NVIDIA 3-way SLI® Technology6
Industry leading NVIDIA SLI technology offers amazing performance scaling in games across up to three GPUs.
NVIDIA PhysX® Technology
Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.
NVIDIA Adaptive Vertical Sync
Dynamically enables vertical sync based on your current frame rates for the smoothest gaming experience.
NVIDIA CUDA™ Technology
Unlocks the power of the GPUĨs processor cores to accelerate the most demanding tasks such as video transcoding, physics simulation, ray tracing, and more, delivering incredible performance improvements over traditional CPUs.
NVIDIA® PureVideo® HD Technology
the combination of high-definition video decode acceleration and post-processing tdat delivers unprecedented picture clarity, smootd video, accurate color, and precise image scaling for movies and video.
PCI Express 3.0
Designed for the new PCI Express 3.0 bus architecture offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications, while maintaining backwards compatibility with existing PCI Express motherboards for the broadest support.
Dual-link DVI
Able to drive flat-panel displays up to 2560x1600 resolution over a DVI connector.
DisplayPort
Drive the latest DisplayPort panels with support for resolutions up to 2560x1600.
HDMI7
Support for HDMI including GPU accelerated Blu-ray 3D support, x.v.Color, HDMI Deep Color, and 7.1 digital surround sound.
