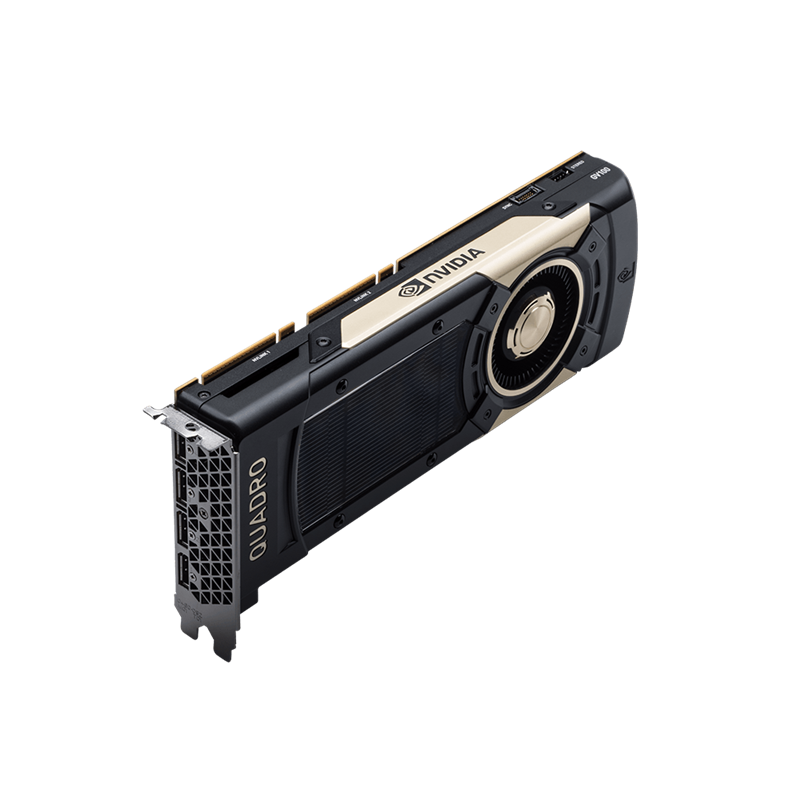

  • 3_Quadro_GV100-3qtr-top-left-10.png

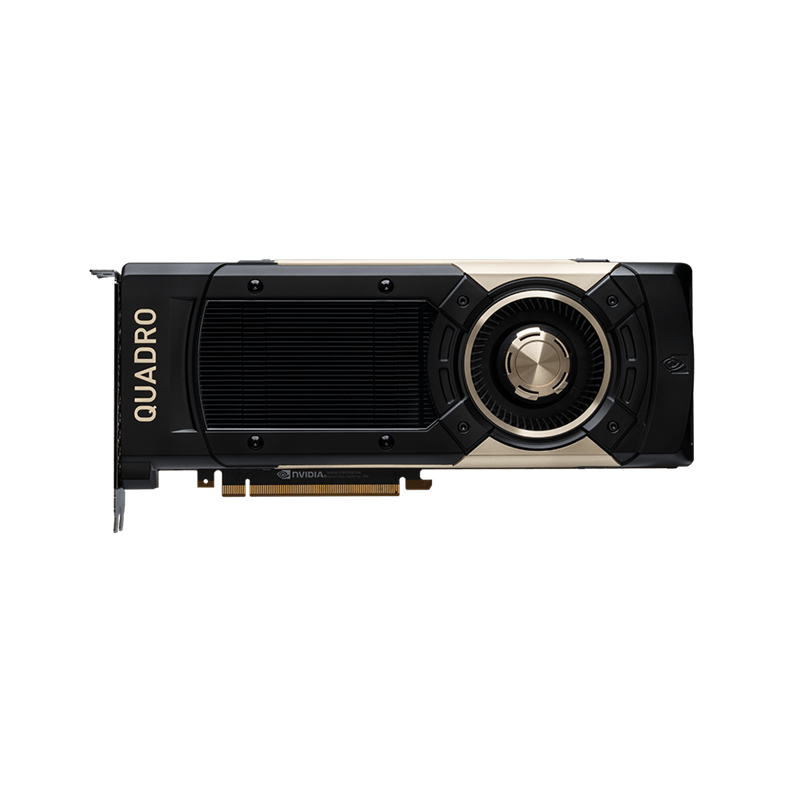

  • 4_Quadro-GV100-front.png

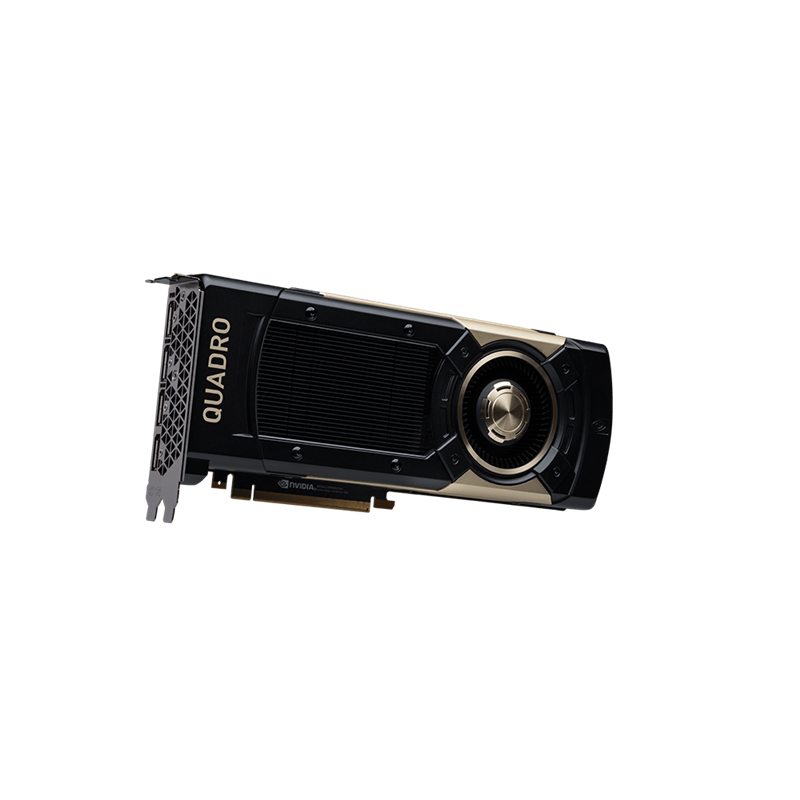

  • 5_Quadro-GV100-3qtr-left-8.png

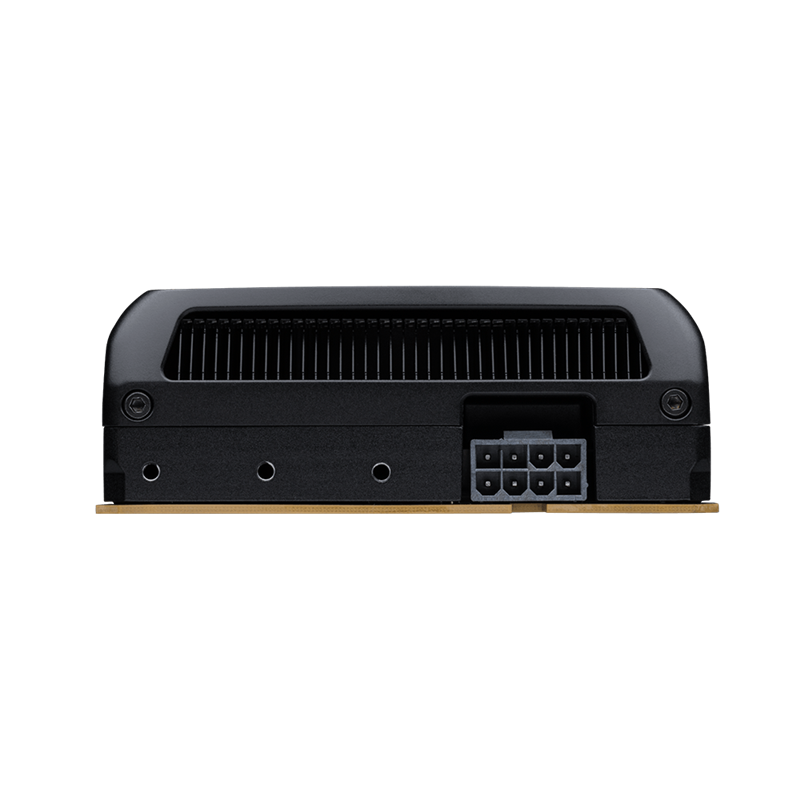

  • 6_Quadro-GV100-right-12.png

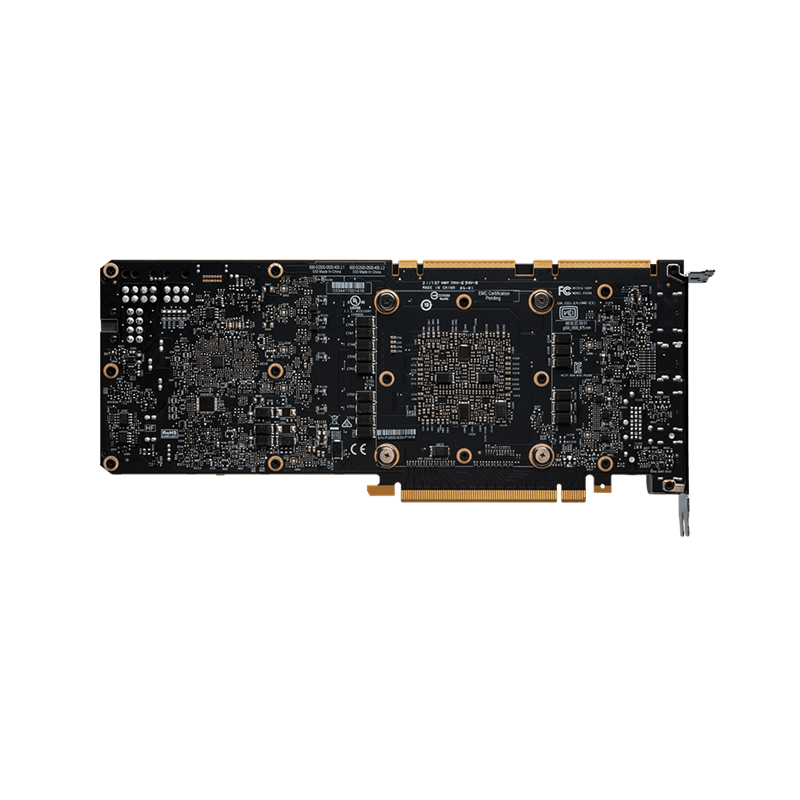

  • 7_Quadro-GV100-back-14.png
  • 4_Quadro-P4000-Sync-Board-3qtr-cables.png
  • 8_Quadro-GV100-left-13.png

NVIDIA Quadro GV100 + HW Sync

NVIDIA® Quadro GV100 + HW Sync

  • SKU: VCQGV100SYNC-PB
  • Description

    NVIDIA Quadro GV100 Sync

    At the Cutting Edge of Visualization and AI

    AI, photo realistic rendering, simulation, and VR are transforming professional workflows. Engineers can now create groundbreaking products faster. Architects can design buildings that could only have existed in their imaginations. And artists can render complex photorealistic scenes in seconds instead of hours. As applications continue to be enhanced with these technologies, professional computing tools need to keep pace.

    The NVIDIA® Quadro® GV100 is reinventing the workstation to meet the demands of these next-generation workflows. It’s powered by NVDIA Quadro Volta, delivering the extreme memory capacity, scalability, and performance that designers, architects, and scientists need to create, build, and solve the impossible.

    Based on a state-of-the-art 12nm FFN (FinFET NVIDIA) high-performance manufacturing process customized for NVIDIA to incorporate 5120 CUDA cores, the NVIDIA Quadro GV100 GPU is the most powerful computing platform for HPC, AI, VR and graphics workloads on professional desktops. Able to deliver more than 7.4 TFLOPS of double-precision (FP64), 14.8 TFLOPS of single-precision (FP32), 29.6 TFLOPS of half-precision (FP16), 59.3 TOPS of integer-precision (INT8), and 118.5 TFLOPs of tensor operation capability, it supports a wide range of compute-intensive workloads flawlessly.

    The NVIDIA Quadro Sync II card is a key component of these advanced display solutions. NVIDIA Quadro Sync II can synchronize up to 4 GV100 boards per card for 16 synchronized displays per Sync II, and with 2 Sync II cards per system, up to 8 NVIDIA Quadro GV100 GPUs per chassis, for a total of 32 synchronized displays per system. The NVIDIA Quadro Sync II, combined with NVIDIA Quadro GV100 powered graphics, is the ultimate solutions for professional synchronized display deployments requiring unparalled rendering and synchronized graphics performance, all with the growth potential and performance upside AI can provide.

    NVIDIA Quadro GV100

    Highlights

    CUDA Cores 5120
    Tensor Cores 640
    Peak Double Precision FP64 Performance 7.4 TFLOPS
    Peak Single Precision FP32 Performance 14.8 TFLOPS
    Peak Half Precision FP16 Performance 29.6 TFLOPS
    Peak Integer Operation (INT8) Performance 59.3 TOPS
    Deep Learning TFLOPS 118.5 TFLOPS
    GPU Memory 32 GB HBM2
    Display Connectors DP 1.4 (4)
    Synchronized Displays per Quadro Sync II 16
    Number of Quadro Sync II Boards Per System 2
    Number of Synchronized Displays Per System 32
    Quadro Sync II Connectors 2x RJ45 (Frame Lock) + BNC (Genlock)
    MOSAIC Platform Support Windows 10, 8.1, 8, 7, Linux

    Digital Signage Solutions

    • Create massive visualization solutions consisting of large numbers of synchronized displays or projectors
    • Use multiple systems with synchronized display outputs to create massive visualization clusters

    Manufacturing Solutions

    • Designers can create massive visualization systems for collaborative design, design reviews, and retail locations
    • AI enhanced rendering performance will open new vistas in interactive photorealistic design across manufacturing workflows

    Media & Entertainment Solutions

    • Broadcasters can synchronize graphics and video for broadcast solutions, virtual sets and on-air graphics
    • Massive visualization solutions can be created for entertainment outlets, sporting events, with hardware synchronized monitors or projectors for artifact free displays

    AEC Solutions

    • Multiple projectors or monitors can be used to review design concepts or changes at scale
    • Fuse design, BIM, and visualization into a unified workflow environment, enhanced with AI

    Visual Simulation Solutions

    • Create flight simulations that circle the globe seamlessly without limitations to altitude or detail
    • Connect multiple displays or projectors to realize a 360-degree field of view
    • Quadro Sync II connects multiple GV100 boards and workstations for massive multi-display or multi-projector simulation environments, all with AI enhanced rendering capabilities and performance

    Contact gopny@pny.com for additional information.

  • Features

    NVIDIA Quadro GV100

    IMAGE QUALITY

    Full-Scene Antialiasing (FSAA)

    Dramatically reduce visual aliasing artifacts or “jaggies” with up to 64x FSAA (128x with SLI HB or NVLink) for unparalleled image quality and highly realistic scenes.

    32K Texture and Render Processing

    Texture from and render to 32K x 32K surfaces to support applications that demand the highest resolution and quality image processing.

    DISPLAY FEATURES

    NVIDIA Quadro MOSAIC Technology

    Transparently scale the desktop and applications across up to 8 GPUs and 32 displays from a single workstation while delivering full performance and image quality.

    DisplayPort 1.4

    Support up to four 5K monitors at 60Hz, or dual 8K displays at 60Hz per card. NVIDIA Quadro GV100 supports HDR color for 4K at 60Hz, 10/12b HEVC decode and up to 4K at 60Hz for 10b HVEC encode. Each DisplayPort connector is capable or driving ultra-high resolutions of 4096 x 2160 at 120 Hz with 30-bit color.

    NVIDIA Quadro View

    NVIDIA Quadro View desktop management software helps you organize single- or multi-monitor workspaces with ease. Divide your workspace into regions to snap applications into place. Save profiles with pre-set configurations for your workflows. And set up hotkeys to quickly access common functions. Quadro View delivers the tools you need to take charge of your desktop.

    NVIDIA Quadro Experience

    NVIDIA Quadro Experience delivers productivity tools that simplify time-consuming tasks so you can get things done faster. Keep your Quadro driver up to date with automatic alerts so your system is always optimized for performance. Capture content in 4K and upload to your favorite third-party sites, broadcast live, or stream to your NVIDIA Shield for effortless collaboration. Get a suite of display management tools with NVIDIA Quadro View software. Even enjoy great gaming with just one click. NVIDIA Quadro Experience is the ultimate productivity companion to your Quadro graphics card.

    NVIDIA Quadro Sync II

    Synchronize the display and image output of up to 32 displays from 8 GPUs (connected through two NVIDIA Quadro Sync II boards) in a single system, reducing the number of systems needed to create an advanced video visualization environment.

    OpenGL Quad Buffered Stereo Support

    Provide a smooth and immersive 3D Stereo experience for professional applications.

    Professional 3D Stereo Synchronization

    Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to a NVIDIA Quadro graphics card.

    SOFTWARE SUPPORT

    NVIDIA CUDA Parallel Computing Platform

    Natively execute standard programming languages like C/C++ and Fortran, and APIs such as CUDA, OpenCL, OpenACC and Direct Compute to accelerate techniques such a ray tracing, video and image processing and computational fluid dynamics.

    Unified Memory

    A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.

    NVIDIA GPUDirect for Video

    GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.

    NVIDIA Enterprise-Management Tools

    Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.

    MULTI-GPU TECHNOLOGY SUPPORT

    NVIDIA NVLink High Speed Interface

    Connect a pair of NVIDIA Quadro GV100 cards with NVLink to increase the effective memory footprint and scale application performance by enabling GPU-to-GPU data transfers at rates up to 200 GB/s (bidirectional).

    Unified Memory

    Leverage multiple GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system.

  • Specifications

    NVIDIA Quadro GV100 + HW Sync

    SPECIFICATIONS

    Compatible in all systems that accept an NVIDIA Quadro GV100 + HW Sync

    CUDA Cores 5148
    Tensor Cores 640
    Peak Single Precision FP64 Performance 7.4 TFLOPS
    Peak Single Precision FP32 Performance 14.8 TFLOPS
    Peak Half Precision FP16 Performance 29.6 TFLOPS
    Peak INT8 Performance 59.3 TOPS
    Deep Learning TFLOPS 118.5 TFLOPS
    GPU Memory 32 GB HBM2
    Memory Bandwidth 870 GB/Sec
    Memory Interface 4096-Bit
    System Interface PCI Express 3.0 x16
    Thermal Management Ultra-Quiet Fansink
    Max Power Consumption 250 W + 12 W for Quadro Sync II
    NVIDIA Quadro Power Guidelines
    Max Digital Resolution
    (2x DP Links)
    5120 x 2880 x24 bpp at 60hz
    (7680 x 4320 x24 bpp at 60hz)
    NVIDIA Quadro and NVS Display Resolution Support

    View All Product Specifications

    3D GRAPHICS ARCHITECTURE

    • Scalable geometry architecture
    • Hardware tessellation engine
    • NVIDIA GigaThread engine with 7 async copy engines
    • Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
    • Up to 32K x 32K texture and render processing
    • Transparent multisampling and super sampling
    • 16x angle independent anisotropic filtering
    • 32-bit per-component floating point texture filtering and blending
    • 64x full scene antialiasing (FSAA)/128x FSAA in SLI Mode
    • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
    • Dedicated H.264 and HEVC Encoder
    • Blu-ray dual-stream hardware acceleration (supporting HD picture-in picture playback)
    • NVIDIA GPU boost automatically improves GPU engine throughput to maximize application performance

    ADVANCED DISPLAY FEATURES

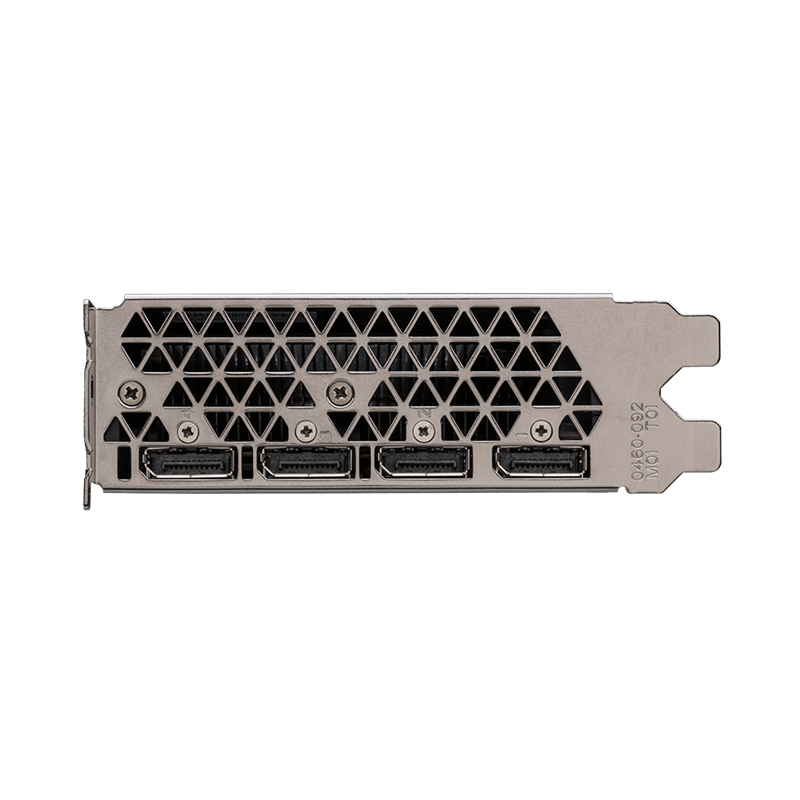

    • Support for any combination of four connected displays
    • Four DisplayPort 1.4 outputs support resolutions such as 3840 x 2160 at 120Hz and 5120 x 2880 at 60Hz
    • DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables (resolution support based on adapter specifications)
    • HDR support over DisplayPort 1.4 (SMPTE 2048/2086, BT. 2020) (4K at 60Hz 10b/12b HEVC Decode, 4K at 60Hz 10b HEVC Encode)
    • HDCP 2.2 support over DisplayPort, DVI and HDMI connectors
    • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
    • NVIDIA 3D Vison technology, 3D DLP, Interleaved, and other 3D stereo format support
    • Full OpenGL quad buffered stereo support
    • Underscan/overscan compensation and hardware scaling
    • NVIDIA NVIEW multi-display technology
    • Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA MOSAIC, NVIDIA Quadro Sync II and NVIDIA warp/blend technologies
    • Turnkey NVIDIA Quadro GV100 + NVIDIA Quadro Sync II bundles available

    AVAILABLE ACCESSORIES

    • NVLINK2-2W2S-NVKIT provides two NVLink connectors for the GV100, effectively fusing two physical boards into one logical entity with 10240 CUDA cores, 1280 Tensor cores, and 64 GB of HBM2 GPU memory, with a bidirectional bandwidth of 200 GB/s. Order PNY PN NVLINK2-2W2S-NVKIT when ultimate performance and capabilities are required with two GV100 boards.
    • DP-HDMI-FOUR-PCK Connect the NVIDIA Quadro GV100 to HDMI displays at resolutions up to 4K with PNY Part Number DP-HDMI-FOUR-PCK. The four included DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
    • DP-HDMI-SINGLE-PCK Connect the NVIDIA Quadro GV100 to an HDMI display at resolutions up to 4K with PNY Part Number DP-HDMI-SINGLE-PCK. The included DisplayPort to HDMI adapter is recommended by NVIDIA, provides outstanding image quality, and is built to professional standards.

    SUPPORTED PLATFORMS

    • Microsoft Windows 10 (64-bit)
    • Microsoft Windows 8.1 and 8 (64-bit)
    • Microsoft Windows 7 (64-bit)
    • Linux – Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit)

    MINIMUM SYSTEM HARDWARE REQUIREMENTS

    • Intel Core i5, i7, Xeon or later
    • AMD Phenom or Opteron-class or later
    • PCIe x16 Gen 3 (preferred) expansion slot
    • 2 GB or more of system memory, 8 GB recommended
    • Internet connection (if preferred for driver installation)
    • DisplayPort (preferred) or DVI compatible displays
    • HDMI display(s) with purchase of optional DP to HDMI adapter(s)

    PACKAGE CONTAINS

    • NVIDIA Quadro GV100 professional graphics board
    • Auxiliary power cable

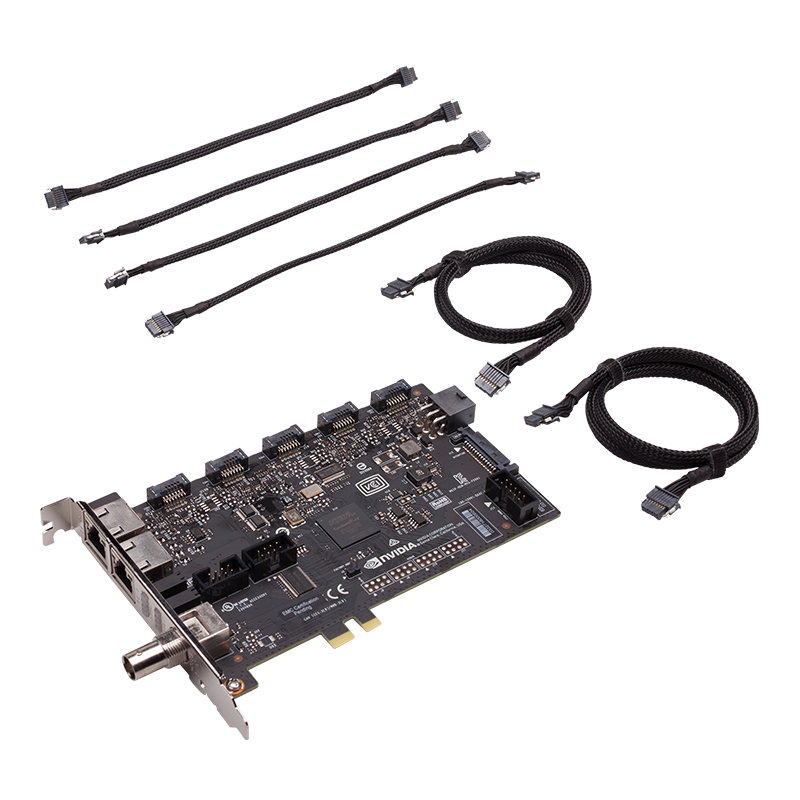

    • NVIDIA Quadro Sync II board
    • Four 12” (30.5 cm) Sync to GPU or Sync-to-Sync connector cables
    • Two 24” (61 CM) Sync to GPU or Sync-to-Sync connector cables
    • Software installation disc for Windows 10, 8.1, 8, and 7 64-bit
    • Printed Quick Start Guides for NVIDIA Quadro GV100 and NVIDIA Quadro Sync II
