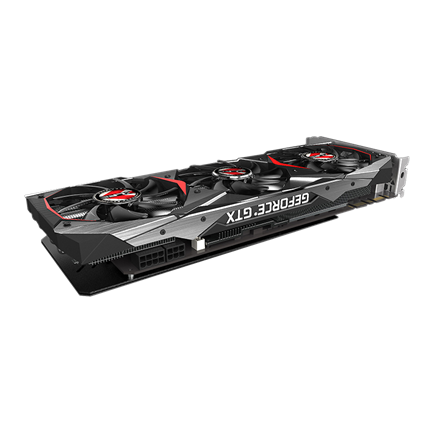

GeForce GTX 1080 Ti XLR8 Gaming OC

Overview
Features | Specifications | Resources | Warranty & Support

GeForce^® GTX
1080 Ti XLR8 OC

Factory Overclocked
1645 MHz Boost Speed

XLR8
Triple Fan Cooler

Full Length
Aluminum Backplate

Fast Performance and Silent Operations

The latest addition to the ultimate gaming platform, this card is packed with extreme gaming horsepower, next-gen 11 GBps GDDR5X memory, and a massive 1GB frame buffer. PNY's GeForce GTX 1080 Ti XLR8 Gaming Edition offers fast performance and silent operation #GameReady

3X Performance of Previous Generation

The latest addition to the ultimate gaming platform, this card is packed with extreme gaming horsepower, next-gen 11 GBps GDDR5X memory, and a massive 1GB frame buffer. PNY's GeForce GTX 1080 Ti XLR8 Gaming Edition offers fast performance and silent operation #GameReady

4 MONITOR SUPPORT

Take your rig to the next level with xlr8 gaming

@XLR8Gam1ng
Full Specifications

NVIDIA®CUDA®Cores3584

Boost Clock (MHz)1645 MHz

Memory Clock (Gbps)11

Memory Amount11GB GDDR5X

Memory Interface352-bit

Memory Bandwidth (GB/sec)484

TDP250 W

SLISLI HB Bridge Supported

Multi-ScreenYes

Max Resolution7680x4320@60Hz (Digital)

Power InputOne 6-Pin, One 8-Pin

Bus TypePCI-Express 3.0 x16

Card Dimensions4.960" x 12.36"; Dual-Slot

Box Dimensions15.5" x 7.7" x 3.8"

WidthDual-slot

Virtual Reality ReadyYes

KEY FEATURES

Simultaneous Multi-Projection

VR Ready

NVIDIA Ansel Support

NVIDIA^® SLI^® w/ HB Bridge Support

NVIDIA G-SYNC™

NVIDIA GameStream™

NVIDIA GPU Boost™ 3.0

Microsoft^® DirectX^® 12 Support

Vulkan API Support

Open GL 4.5 Support

PCI Express 3.0

Max Digital Resolution - 7680x4320@60Hz¹

Display Connectors

(3x) DP 1.4

HDMI 2.0b

Minimum System Requirements

PCI Express-compliant motherboard with one dual-width x16 graphics slot

One 6-pin, One 8-pin PCI Express supplementary power connectors

Minimum 600W or greater system power supply²

300MB of available hard-disk space

8GB system memory (16GB or higher recommended)

Windows 7-10, Linux, FreeBSDx86

Internet connection³

Included in the Box

GeForce GTX 1080 Ti Blower Edition Graphics Card

Quick Installation Guide

One PCIe 8-pin power adapter

DisplayPort to DVI Adapter

7680x4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680x4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

Resources

Download Product Brochure

Click here for the latest FAQs, Help & Tutorials, Downloads, and Brochures & Manuals

Quick Start Guide

GeForce Experience

Warranty & Support

3-Year Warranty
