PNY GeForce RTX 5060 Ti 16GB Models

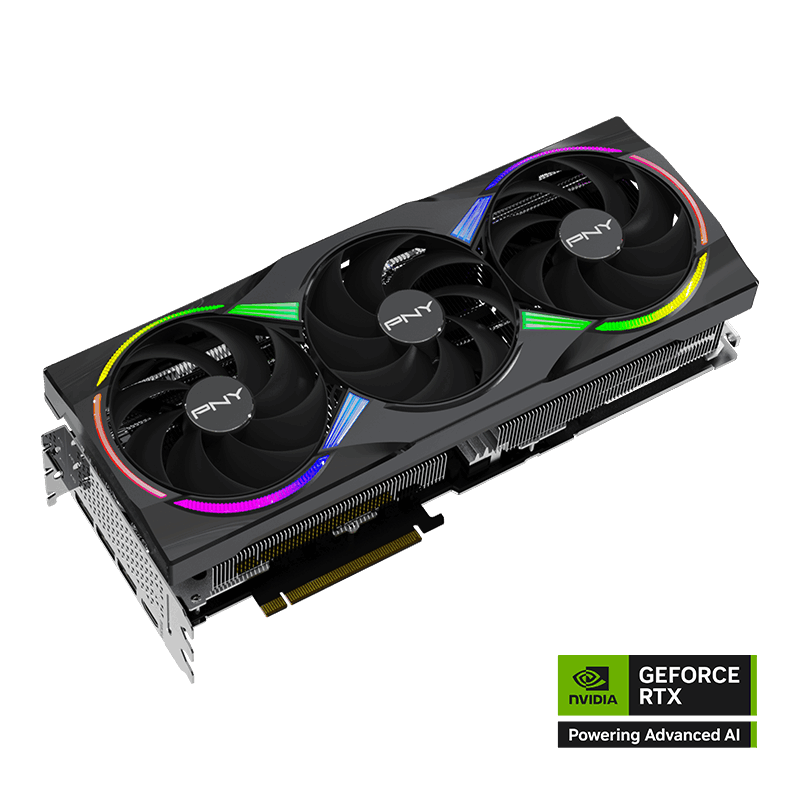

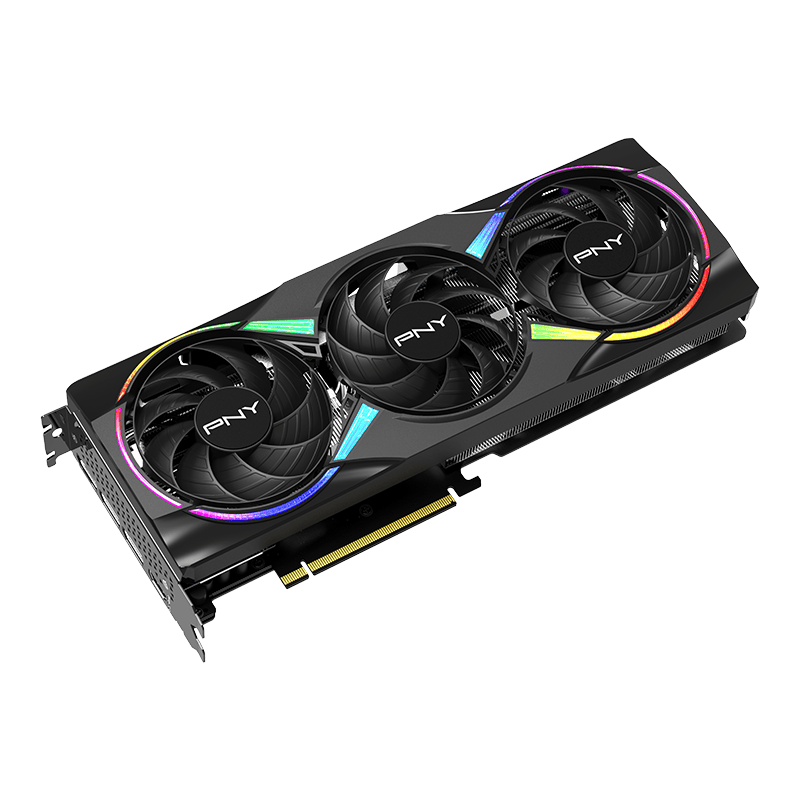

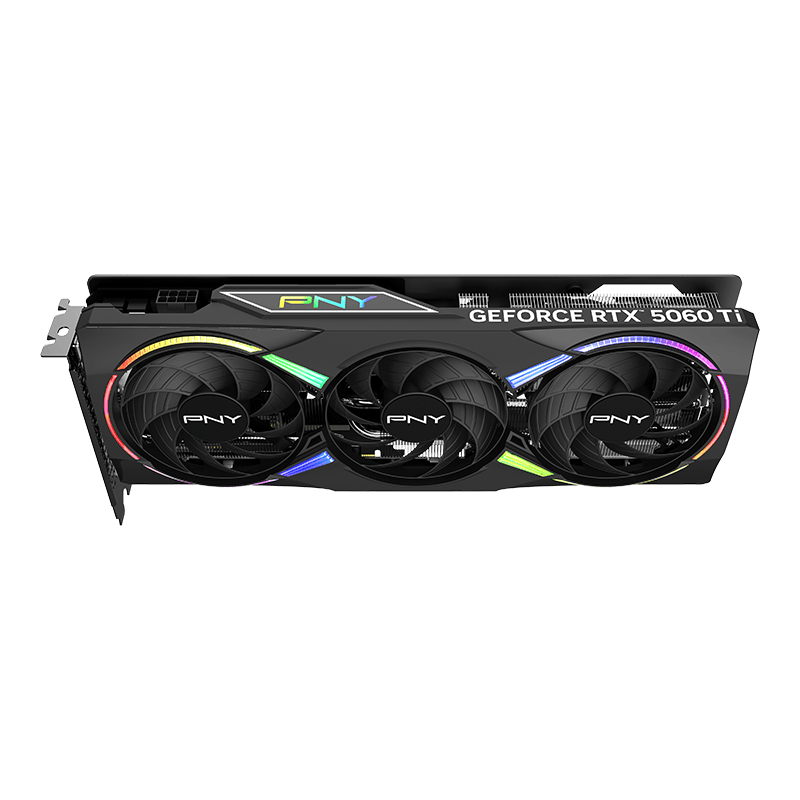

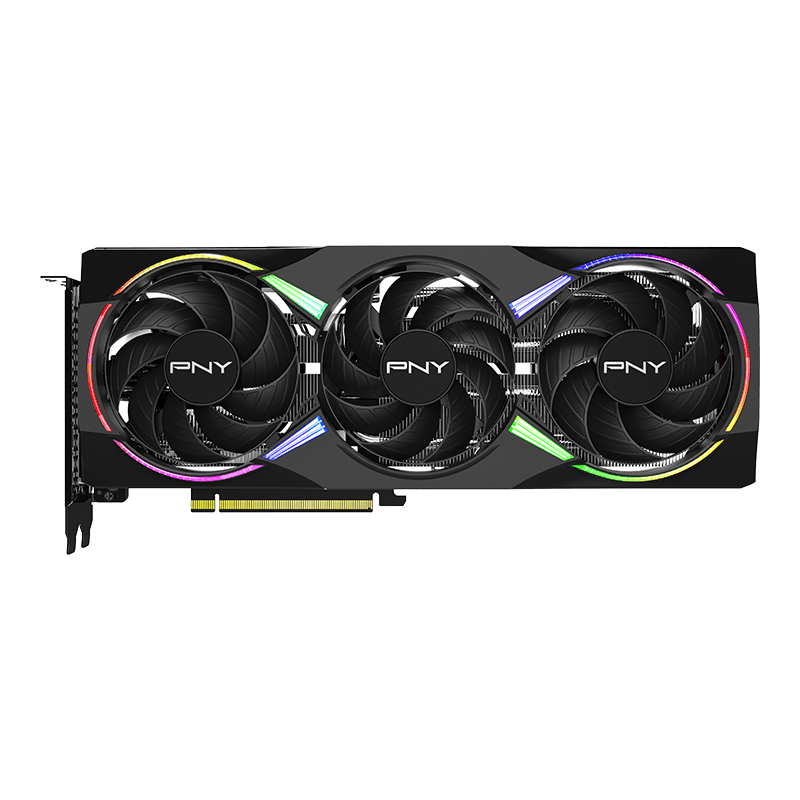

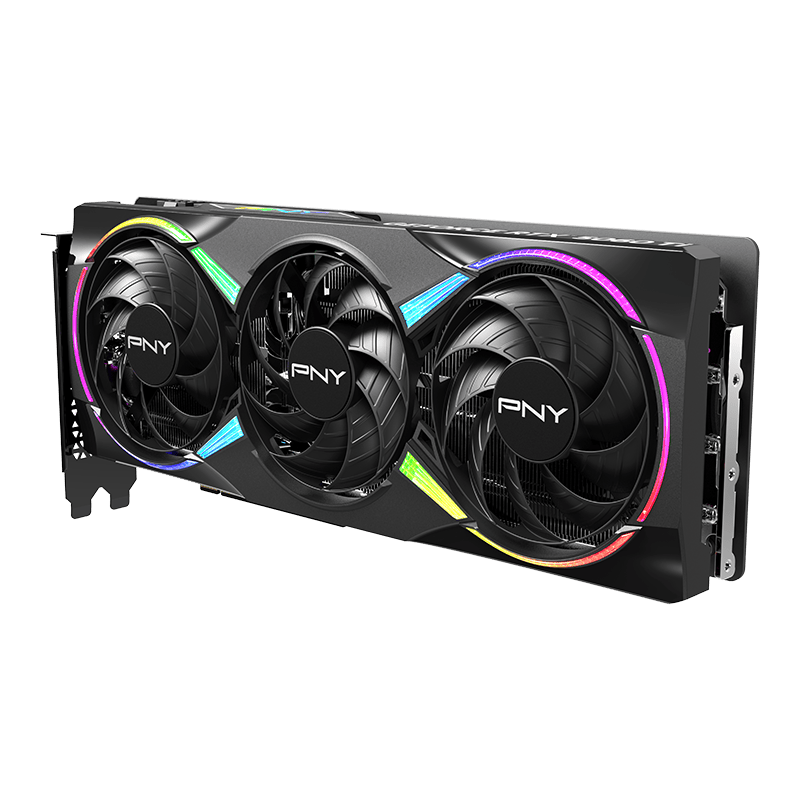

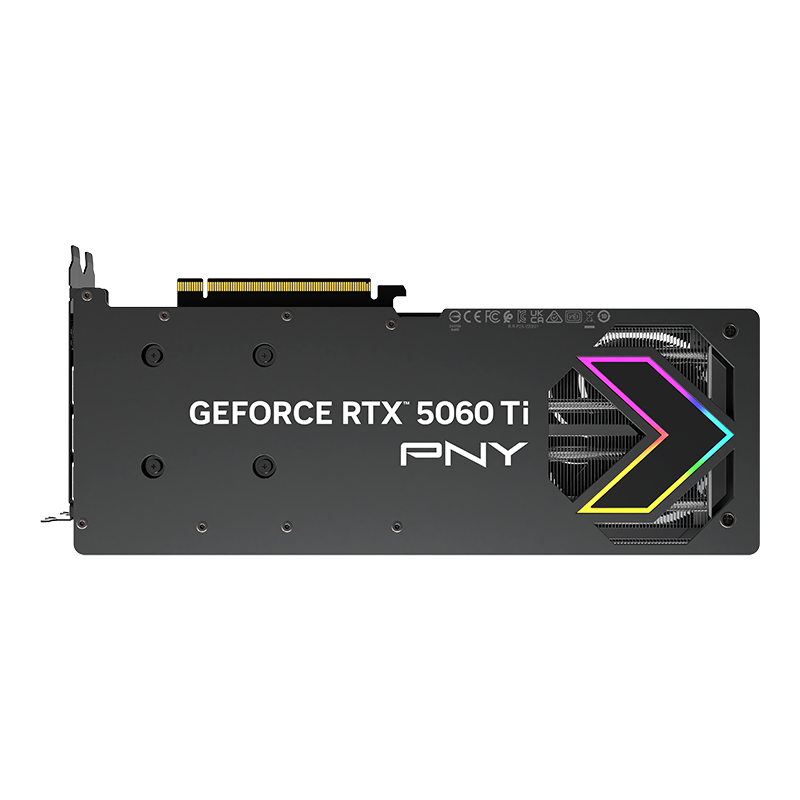

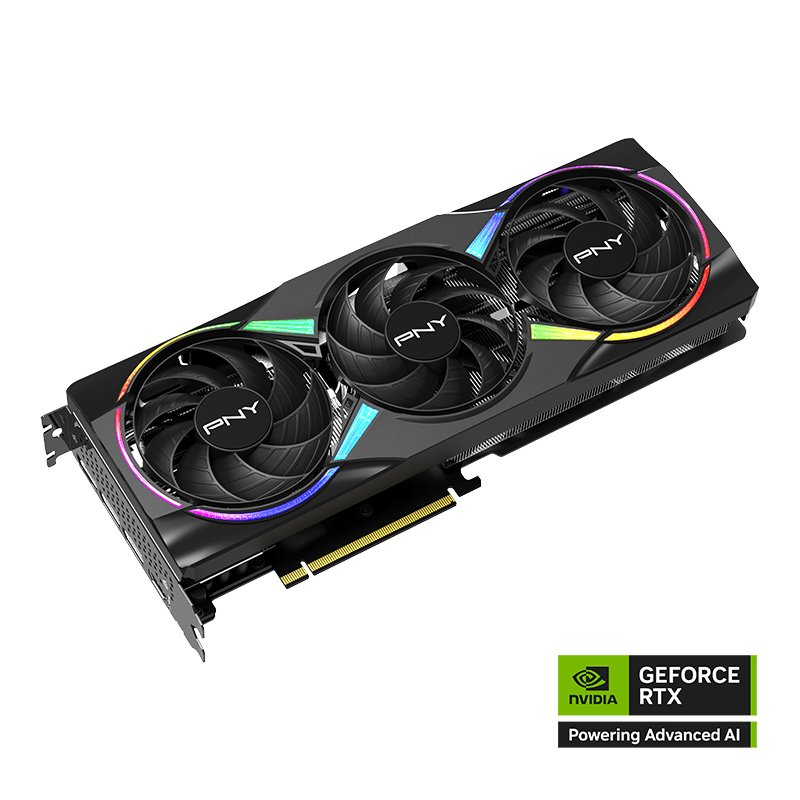

PNY GeForce RTX™ 5060 Ti 16GB EPIC-X RGB™ Triple Fan GPU

SKU: VCG5060T16TFXXPB1

Product Brochure Linecard

Where to Buy

Get game-changing performance with the PNY GeForce RTX™ 5060 Ti, powered by NVIDIA^® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.

Product Registration

Features
- NVIDIA Blackwell Architecture
- 16GB GDDR7 Memory
- 3x Display Port 1x HDMI
- 4608 CUDA^® Cores
- 180 W Max Power Consumption
Specifications

PNY Part Number

VCG5060T16TFXXPB1

UPC Code

751492795065

Architecture

Blackwell

CUDA^® Cores

4608

Clock Speed

2407 MHz

Boost Speed

2572 MHz

View All Specifications

Specifications

PNY Part Number

VCG5060T16TFXXPB1

UPC Code

751492795065

Architecture

Blackwell

CUDA^® Cores

TBD

Clock Speed

2407 MHz

Boost Speed

2572 MHz

Memory Speed (Gbps)

28

Memory Size

16 GB GDDR7

Memory Interface

128-bit

Memory Bandwidth (GB/sec)

448

TDP

180W

NVLink

Not Supported

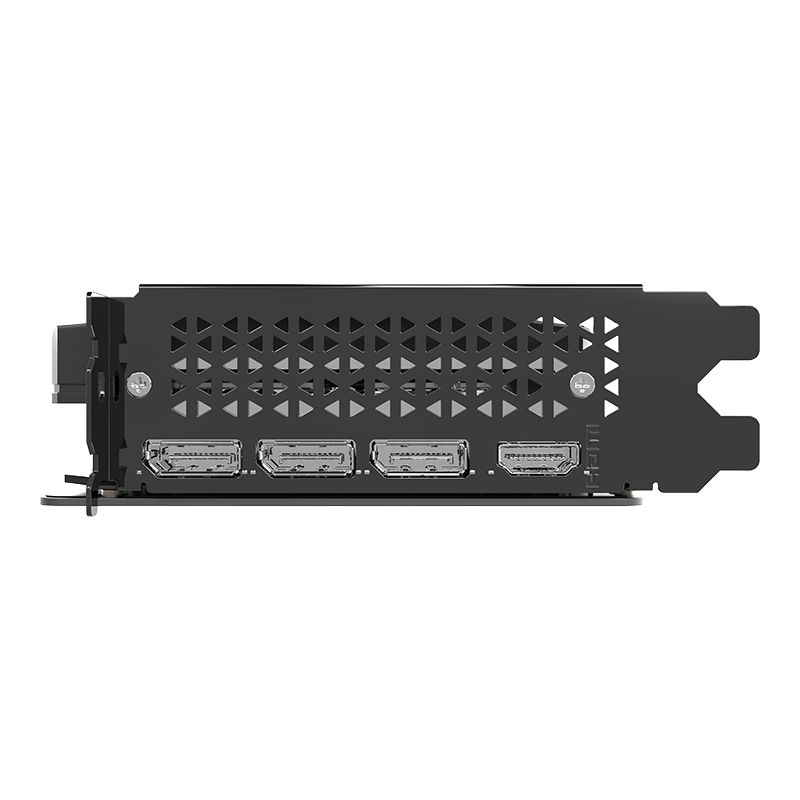

Outputs

DisplayPort 2.1b (x3), HDMI 2.1b

Multi-Screen

4

Resolution

4K at 480Hz or 8K at 165Hz with DSC³

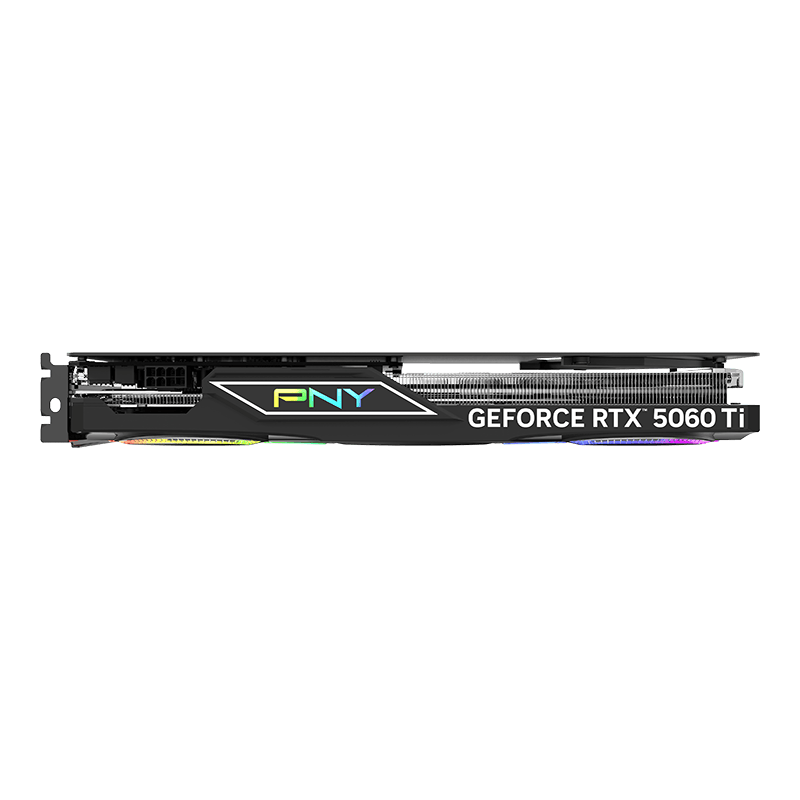

Power Input

1x8-pin

Bus Type

PCI-Express 5.0 x8

Card Dimensions

11.77" x 4.72" x1.57"; 2 Slot

Box Dimensions

15.04" x 7.64" x 2.84" / 382x194x72mm

³ 3 Up to 4K 12-bit HDR at 240Hz with DP 1.4b + DSC or HDMI 2.1b + DSC. Up to 8K 12-bit HDR at 60Hz with DP 1.4a + DSC or HDMI 2.1a + DSC
System Requirements
- PCI Express-compliant motherboard with one 2-width x8 graphics slot
- One 8-pin supplementary power connector
- Total graphics power 180 W
- Required system power 600W²
- Microsoft Windows^® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
- Internet connection¹
¹Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.

²Power requirements can be different depending on system configuration.

WARNING: This product contains chemicals including lead known in the state of California to cause cancer and/or reproductive harm, and birth defects or other reproductive harm.

ADVERTENCIA: Este producto contiene productos químicos reconocidos incluido el plomo reconocidos por el estado de California que provocan cáncer o daños reproductivo, defectos de nacimiento u otros daños reproductivos.

For more information: www.P65Warnings.ca.gov

^® 2025 NVIDIA Corporation. NVIDIA, the NVIDIA logo, GeForce, GeForce RTX, and G-SYNC are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries. All other trademarks and copyrights are the property of their respective owners.

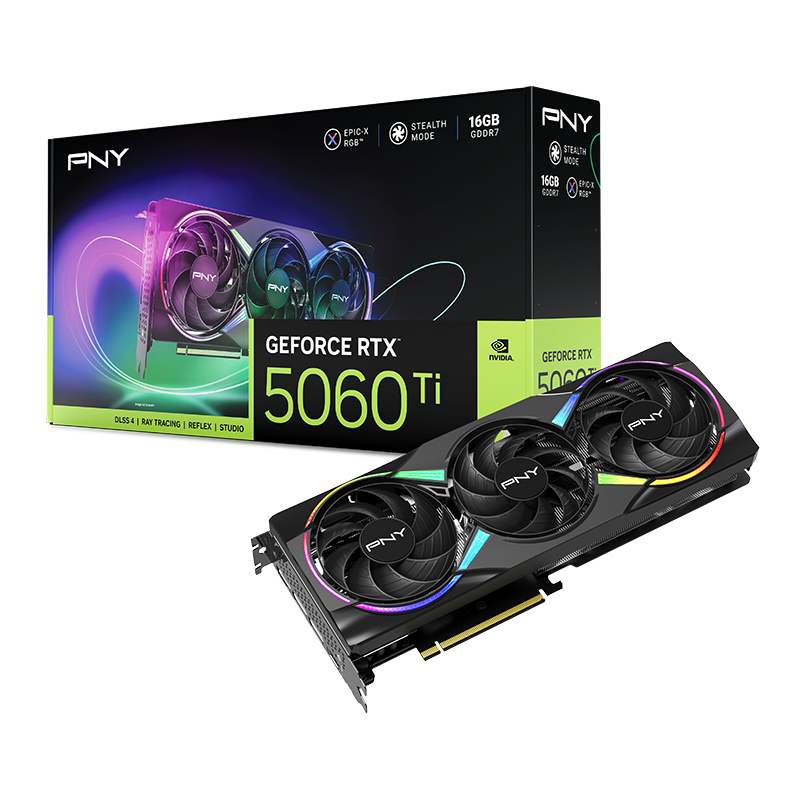

Package Contains
PNY GeForce RTX™ 5060 Ti ARGB

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max Al performance with FP4 and DLSS

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

Game Changer

Powered by NVIDIA^® Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

AI-Enhanced Graphics and Performance

NVIDIA DLSS 4 with Multi Frame Generation

Game-Winning Responsiveness

NVIDIA Reflex 2 with Frame Warp

True-to-Life Graphics

Full ray tracing with neural rendering

Digital Humans and AI Assistants

NVIDIA ACE

Accelerate Your Creativity

NVIDIA Studio creator tools and technology

Enhance Any Video with AI

NVIDIA Broadcast and ninth-gen NVIDIA Encoder

Performance and Reliability

NVIDIA app with Game Ready and Studio Drivers

The Ultimate Gaming Display Technologies

NVIDIA G-SYNC
