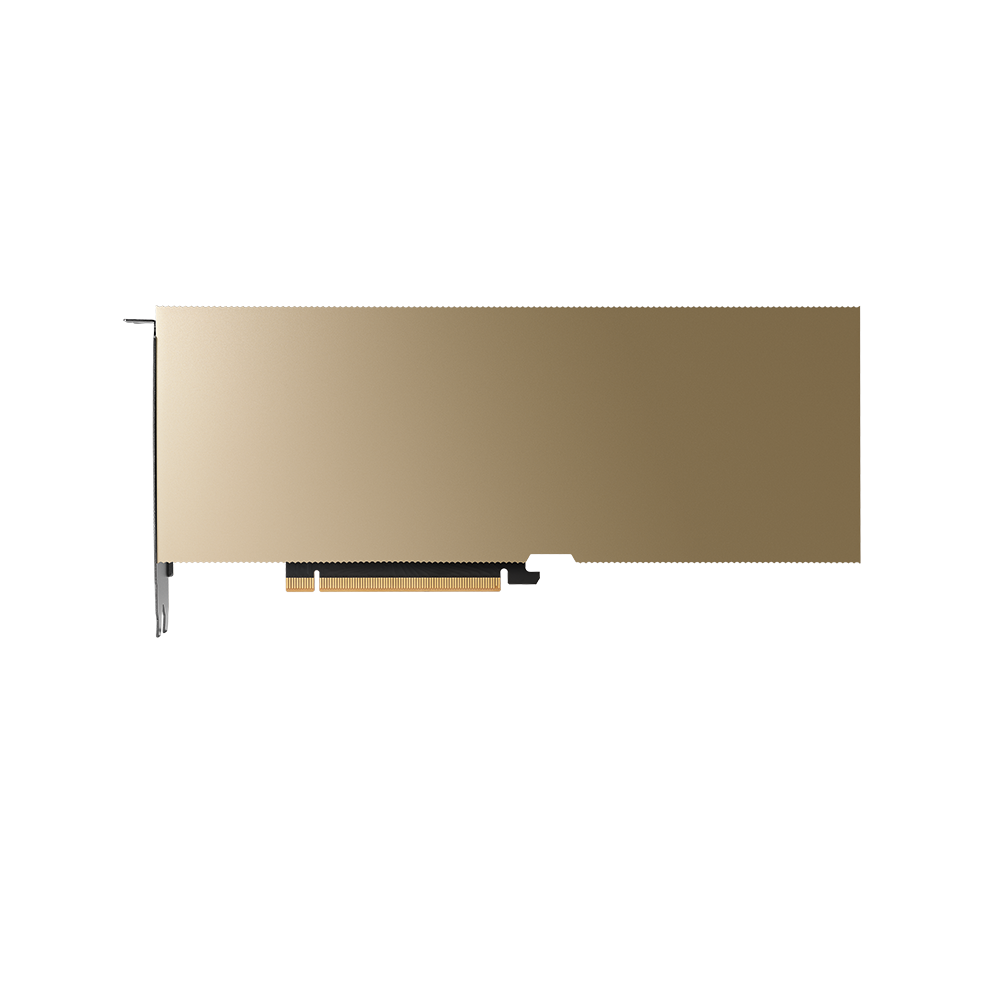

  • NVIDIA-L40-Front-1k.png

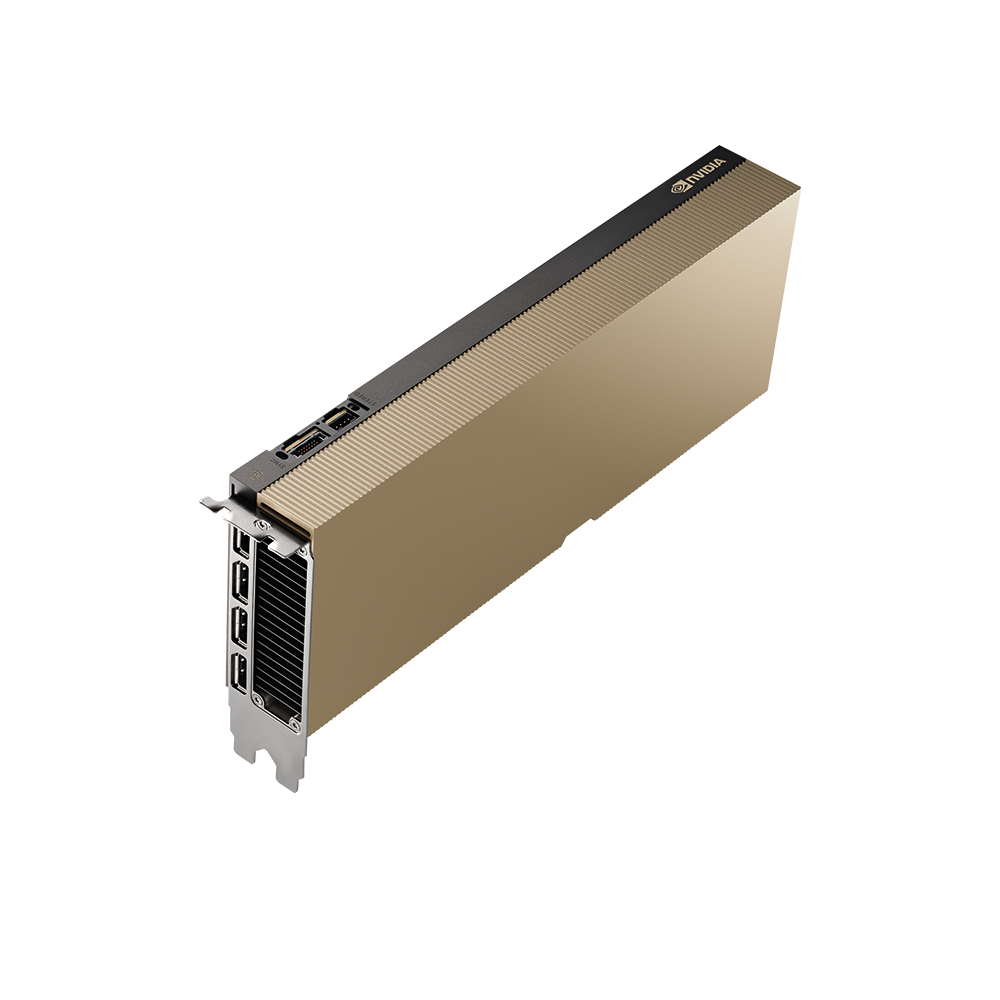

  • NVIDIA-L40-3QTR-1k.png

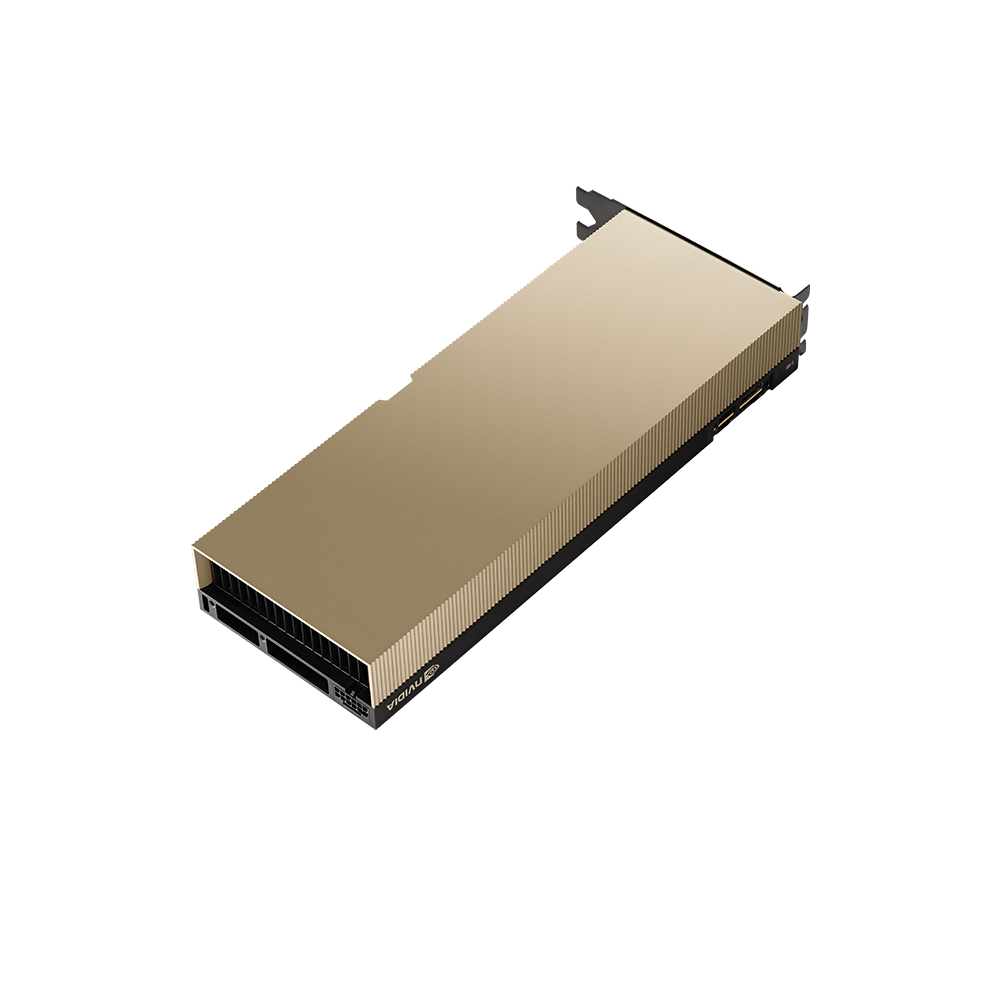

  • NVIDIA-L40-3QTR-Front-Left-Reverse-1k.png

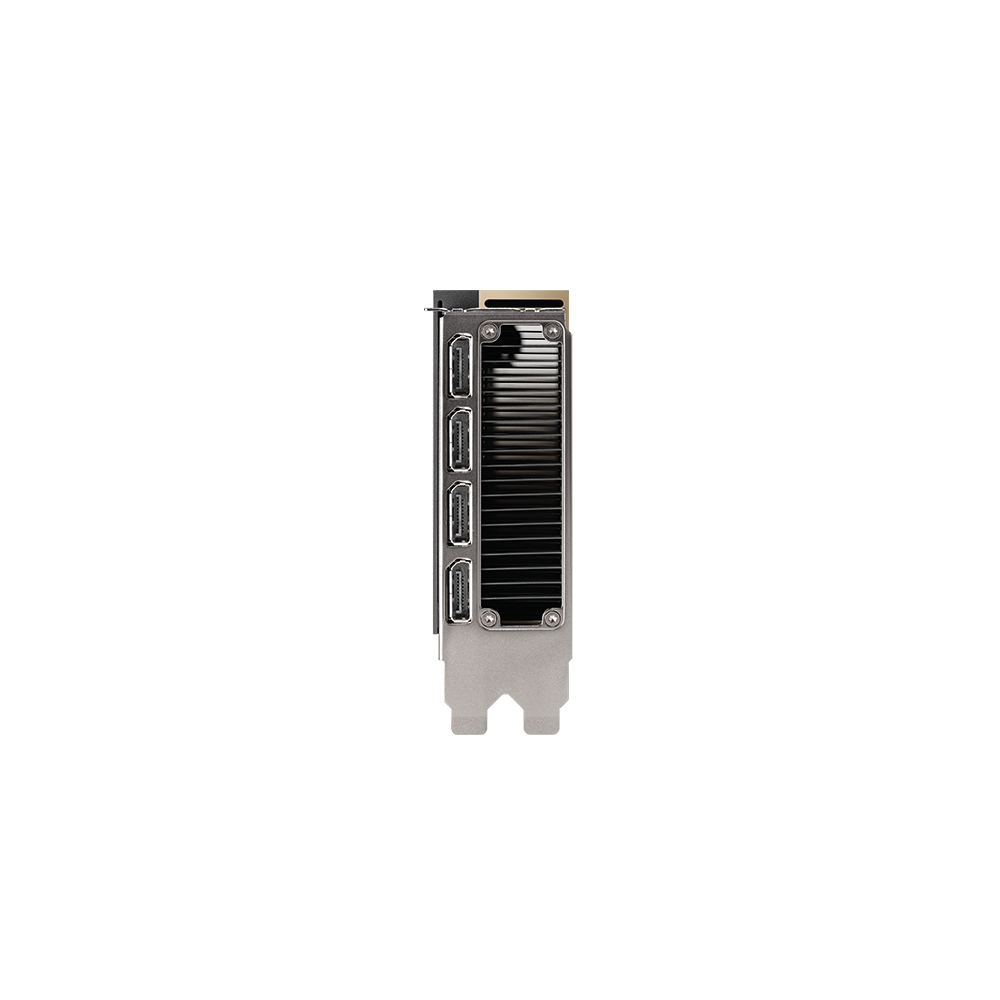

  • NVIDIA-L40-Bracket-1k.png

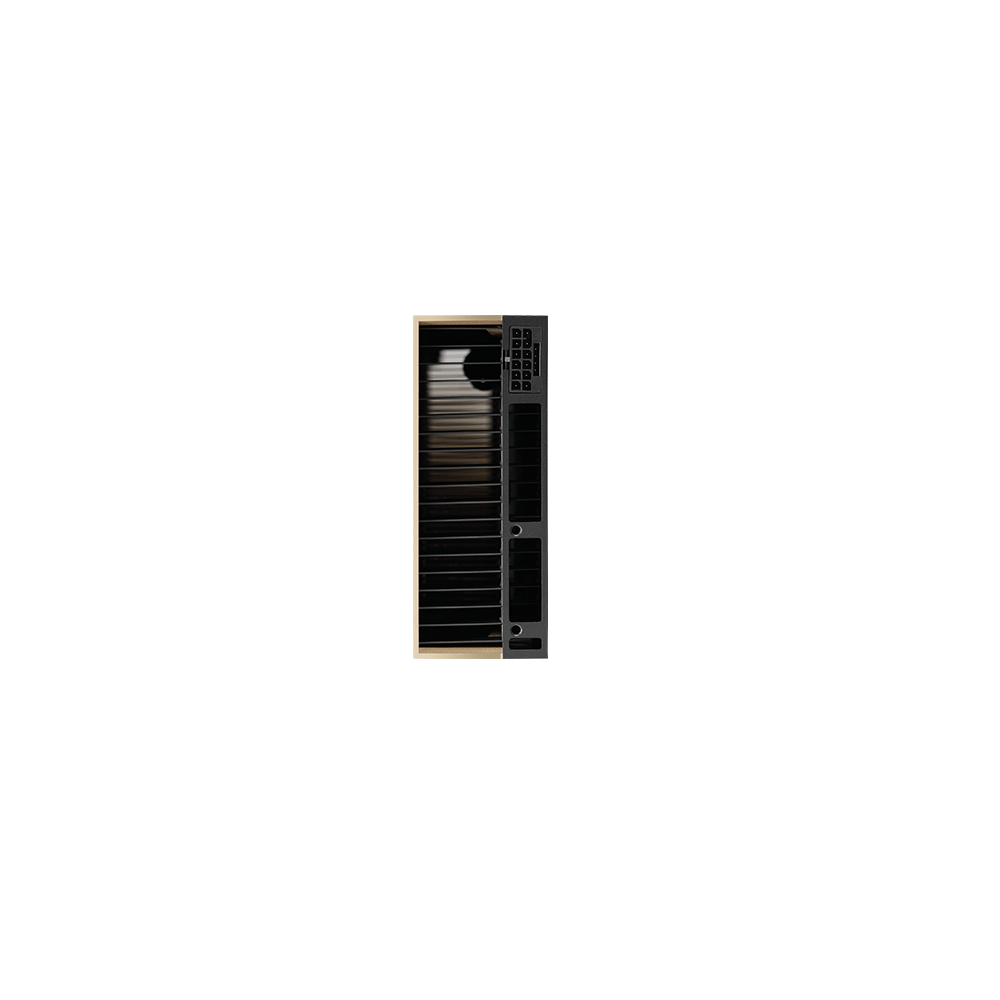

  • NVIDIA-L40-Power-1k.png

NVIDIA® L40

NVIDIA L40

  • SKU: TCSL40PCIE-PB

Where to Buy

  • Description

    NVIDIA L40

    Performance Icon
    Next Generation Graphics

    The NVIDIA L40 brings the highest level of power and performance for visual computing workloads in the data center.

    Turing Shaders Icon
    Powerful Compute and AI

    Groundbreaking features in the NVIDIA L40 accelerate a wide range of compute-intensive workloads running in the data center, including training, inferencing, data science, and graphics applications.

    State-Of-The-Art Graphics Icon
    Data Center-Ready

    Designed for 24 x 7 enterprise data center operations and optimized to deploy at scale, the NVIDIA L40 utilizes enterprise-grade components, power-efficient hardware, and features like secure boot with internal root of trust.

    Overview

    Unprecedented Visual Computing Performance for the Data Center

    From virtual workstations to large-scale modeling and simulation, modern visual computing and scientific applications are growing in complexity and quantity. Enterprises need data center solutions that can deliver extreme performance and scale with versatile capabilities to conquer the diverse computing demands of these increasingly complex workloads.

    The NVIDIA L40 delivers unprecedented visual computing performance for the data center, providing next-generation graphics, compute, and AI capabilities to GPU-accelerated applications. Based on the Ada Lovelace GPU architecture, the L40 features third-generation RT Cores that enhance real-time ray tracing capabilities, and fourth-generation Tensor Cores with support for the FP8 data format to deliver over a petaflop of inferencing performance. These new features are combined with the latest generation CUDA Cores and 48GB of graphics memory to accelerate visual computing workload from high-performance virtual workstation instances to large-scale digital twins in NVIDIA Omniverse. With up to twice the performance of the previous generation at the same power, the NVIDIA L40 is uniquely suited to provide the visual computing power required by the modern data center.

      Product Specifications

      Performance Highlights

      CUDA Cores

      18176

      Tensor Cores

      568 | Gen 4

      RT Cores

      142 | Gen 3

      GPU Memory

      48 GB GDDR6 ECC

      Memory Interface

      384-bit

      Memory Bandwidth

      864 GB/s

      Display Connectors

      4x DP 1.4a

      Maximum Digital Resolution

      4x 5K at 60 Hz | 2x 8K at 60 Hz
      4x 4K at 120 Hz | 30-bit Color

      Form Factor

      4.4" H x 10.5" L | Dual Slot

      Thermal Solution

      Passive

      Maximum Power Consumption

      300 W

      Warranty Shield Icon

      Warranty


      3 Year
