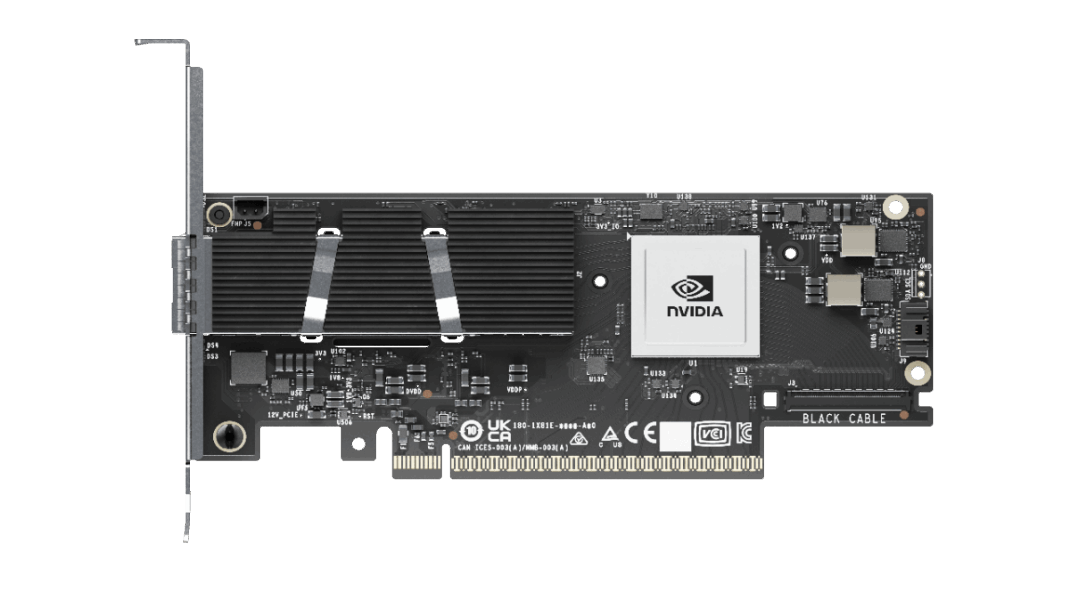

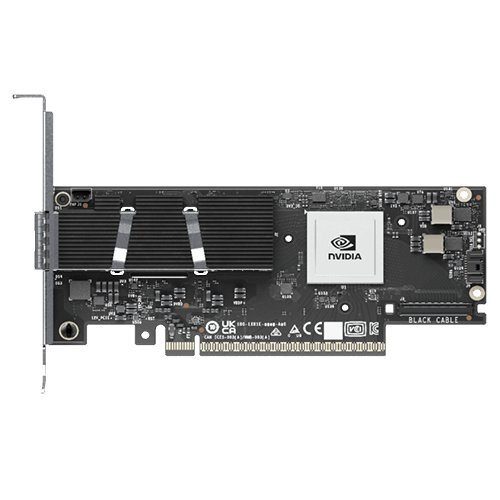

NVIDIA ConnectX-8 SuperNIC

NVIDIA ConnectX-8 SuperNIC

NVIDIA ConnectX-8-SuperNIC

  • SKU: EU-174
Where to Buy

The NVIDIA® ConnectX®-8 SuperNIC™ is optimized to supercharge hyperscale AI computing workloads. With support for both InfiniBand and Ethernet networking at up to 800 gigabits per second (Gb/s), ConnectX-8 SuperNIC delivers extremely fast, efficient network connectivity, significantly enhancing system performance for AI factories and cloud data center environments.

NVIDIA ConnectX-8

NVIDIA ConnectX-8 SuperNIC

ConnectX-8 SuperNICs enable advanced routing and telemetry-based congestion control capabilities, achieving the highest network performance and peak AI workload efficiency. Additionally, ConnectX-8 InfiniBand SuperNICs extend the capabilities of NVIDIA® Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)™ to boost in-network computing in high-performance computing environments, further enhancing overall efficiency and performance for both training and inferencing at scale.

Supported network protocols

Infiniband, Ethernet

Maximum total bandwidth

800 Gb/s

InfiniBand speeds

800/400/200/100 Gb/s

Ethernet speeds

400/200/100/50/25 Gb/s

Host interface

PCIe Gen6: up to 48 lanes
