NVIDIA HGX A100 Certified System

NVIDIA HGX A100 Certified System

  • SKU: NF5488A5
  • Description

    Overview

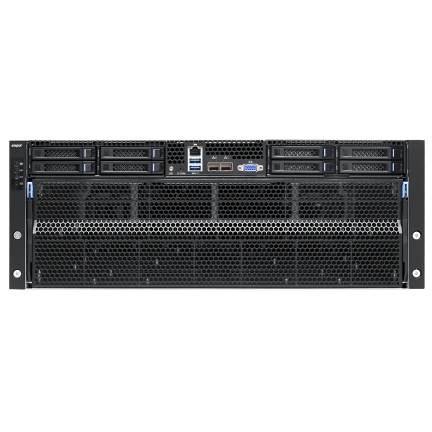

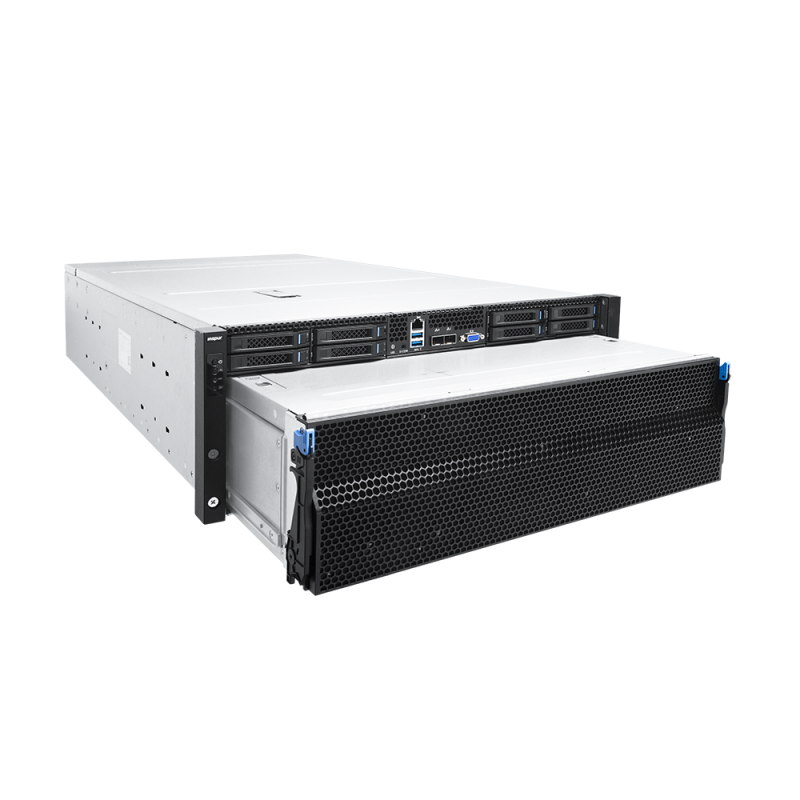

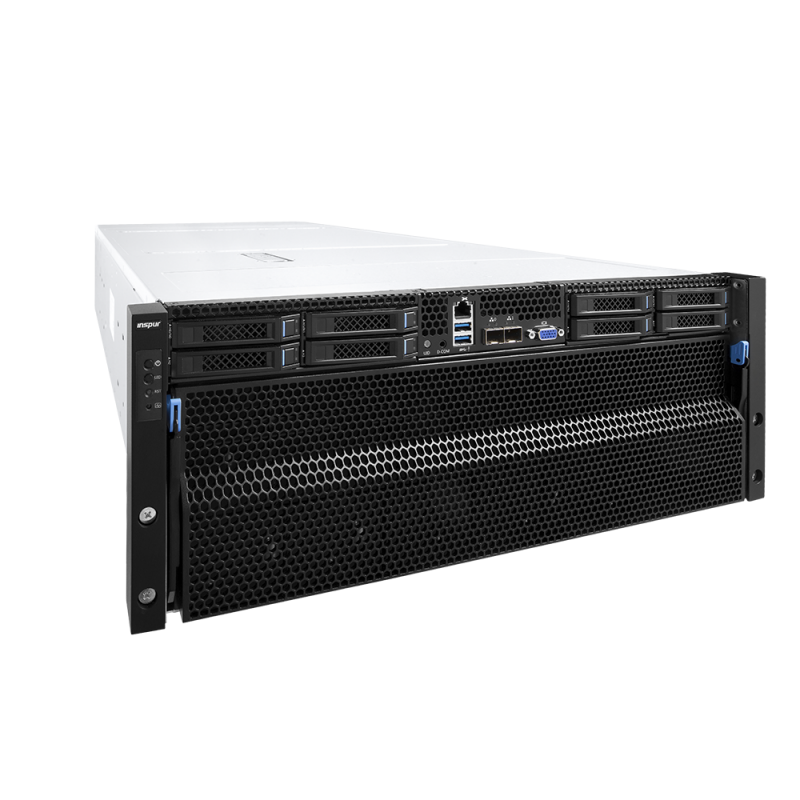

    NF5488A5
    GPU SERVER FOR AI TRAINING AND INFERENCE

    NVIDIA certified system from INSPUR
    NF5488A5 server provides users with ultimate AI performance and ultra-high-speed bandwidth while offering powerful computing support for various AI scenarios such as intelligent customer service, financial analysis, smart city, and intelligent language processing.

    Record-Setting AI Performance

    Best single sever performance in the MLPerf v0.7 benchmark, setting 18 performance records and achieving 549,000 inferences per second in the ResNet50 inference task.

     Extreme Hardware Design

    8x fully interconnected NVLink 3.0 NVIDIA A100 GPUs, 2x AMD EPYC Rome processors enabling PCIe4.0 in 4U and delivering 5 petaFLOPS and high data throughput.

     Accelerating AI Training
    Supports the latest A100 40/80G GPU with HBM2e, doubling the memory capacity of its predecessor and a 30% increase in GPU memory bandwidth in a single node, delivering 15% performance increase in AI model training tasks with tens of billions of parameters.

    Product Specifications

    NF5488A5 Specifications

    Processor



    Processor Type

    2* AMD R OME Zen2 CPU, TDP 225W

    Memory



    Memory type

    DDR4 RDIMM/LRDIMM 2933MHz / 3200MHz

    Memory slot quantity

    32

    Total memory capacity

    Supports up to 8192GB (256G per memory module)

    GPU


    HGX2 baseboard

    Supports 8* NVIDIA Tesla Ampere SXM4 A100 40GB or 80GB
    GPU, up to 400W; Supports NVSwitch fully-connected topology

    I/O



    USB

    2* front USB3.0 port

    Network port

    10G Dual port SFP +

    VGA

    1* front VGA port

    Mgmt

    1* front RJ45 IPMI port, and 1* rear RJ45 Switch
    BMC port

    PCIe

    Supports 4* PCIe Gen4 x16 25W low-profile PCIe card

    Display


    Controller type

    Integrated in Aspeed 2500 chip, supporting up to
    1900*1200 resolution

    Drive



    Drive type

    Supports SATA/NVME drives, up to:
    8* 2.5’’ SATA drive +4* NVMe SSD; Or 6* 2.5’’
    SATA drive + 2* NVMe SSD
    Up to 2* M.2 SSD within the server

    Power



    Specifications

    4* 3000W 80Plus Platinium PSU, supporting 3+1 redundancy

    Power input

    Please refer to the power input on the nameplate
    label of the host

    Physical



    Ext. packing dimensions

    722mm (W) x 368mm (H) x 1168mm (D)

    Host machine dimensions

    448mm (W) x 175.5mm (H) x 850mm (D)

    Weight

    Full configuration: NW 62kg, GW 95kg (Gross weight including host + packaging box + rails + accessory box)

    Environmental



    Operating temperature

    10°C ~35°C

    Storage & transporatation temperature

    -40°C ~60°C

    Operating humidity

    20% ~80% relative humidity

    Storage & transportation humidity

    20% ~93% (40°C) relative humidity
