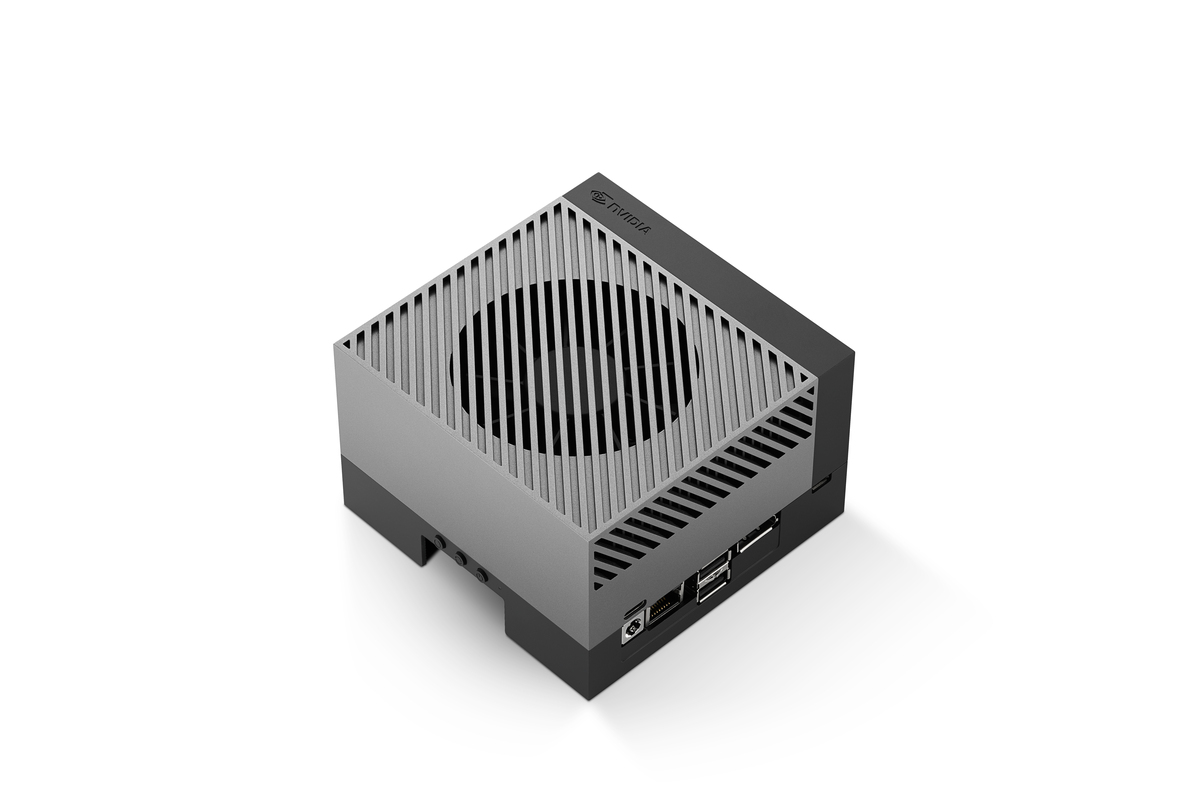

The NVIDIA® Jetson AGX OrinTM series provides server class performance, delivering up to 275 TOPS of AI performance for powering autonomous systems. The Jetson AGX Orin series includes the Jetson AGX Orin 64GB and the Jetson AGX Orin 32GB modules. These power-efficient system-on-modules (SOMs) are form-factor and pin-compatible with Jetson AGX XavierTM and offer up to 8X AI performance. Jetson AGX Orin modules feature the NVIDIA Orin SoC with a NVIDIA Ampere architecture GPU, Arm® Cortex®-A78AE CPU, next-generation deep learning and vision accelerators, and a video encoder and a video decoder. High speed IO, 204 GB/s of memory bandwidth, and 32GB or 64GB of DRAM enable these modules to feed multiple concurrent AI application pipelines. With the SOM design, NVIDIA has done the heavy lifting of designing around the SoC to provide not only the compute and I/O but also the power and memory design
Specifications
|
Supported Device
|
Jetson AGX Xavier
|
|
Supported Device Technology
|
Application Processor and SOC
|
|
RAM Size
|
32GB
|
|
USB
|
9
|
|
Ethernet
|
1
|
|
Operating Systems
|
Linux
|
|
PC Card Interface
|
micro SD
|
|
JTAG Support
|
Yes
|
|
Audio Interfaces
|
Yes
|
|
Linux
|
Linux
|
|
Daughter Cards
|
Yes
|
