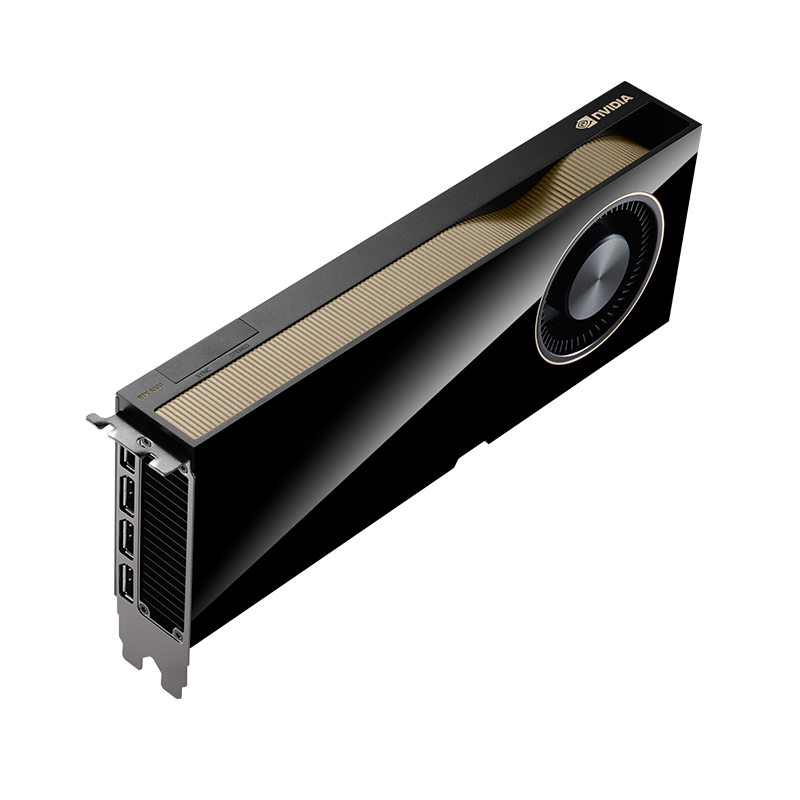

  • NVIDIA RTX 6000 Ada Generation Top Left

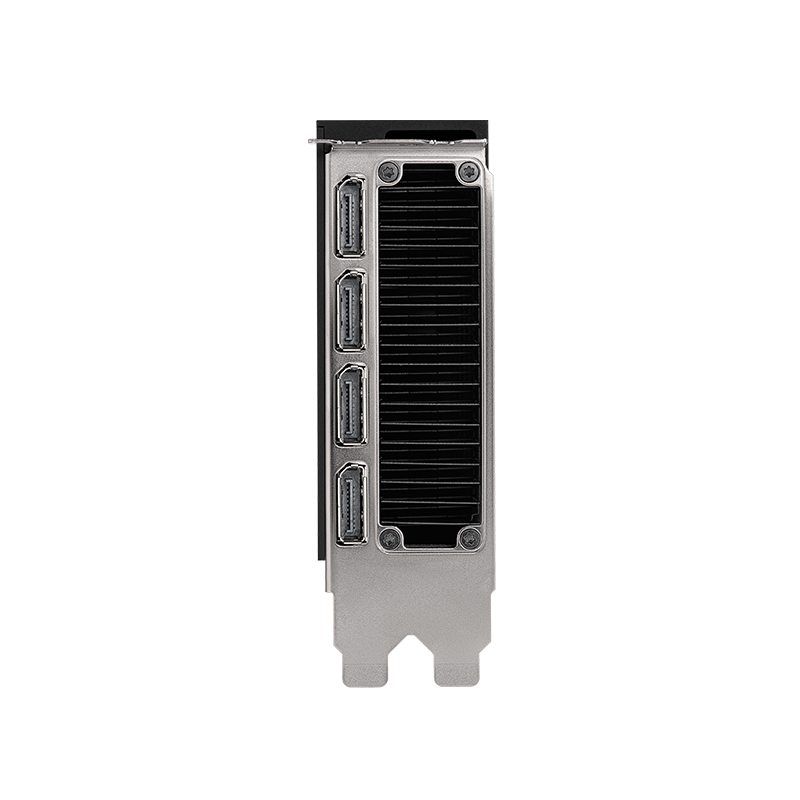

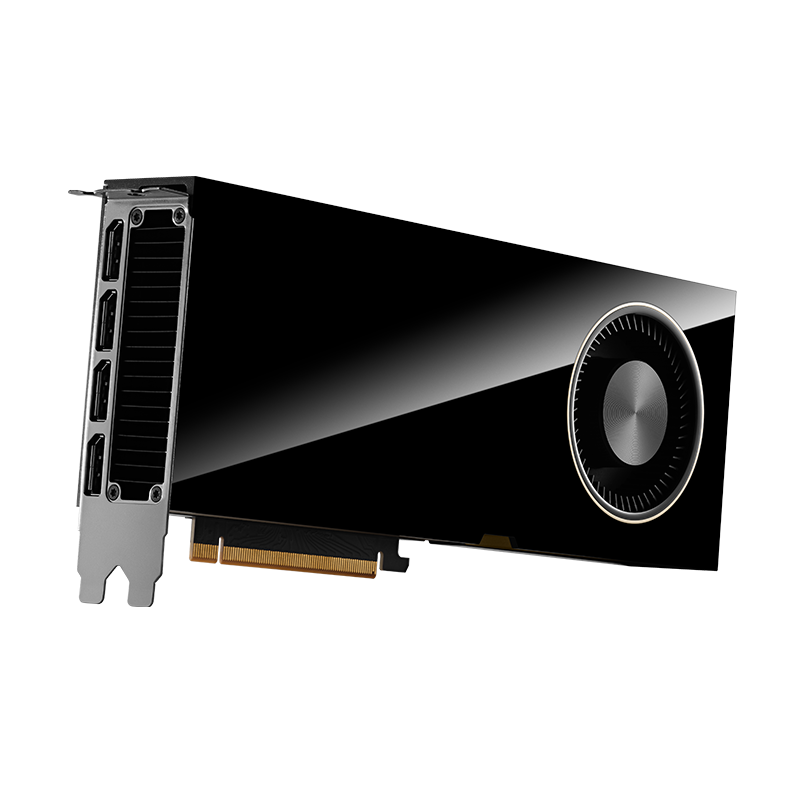

  • NVIDIA RTX 6000 Ada Generation Left

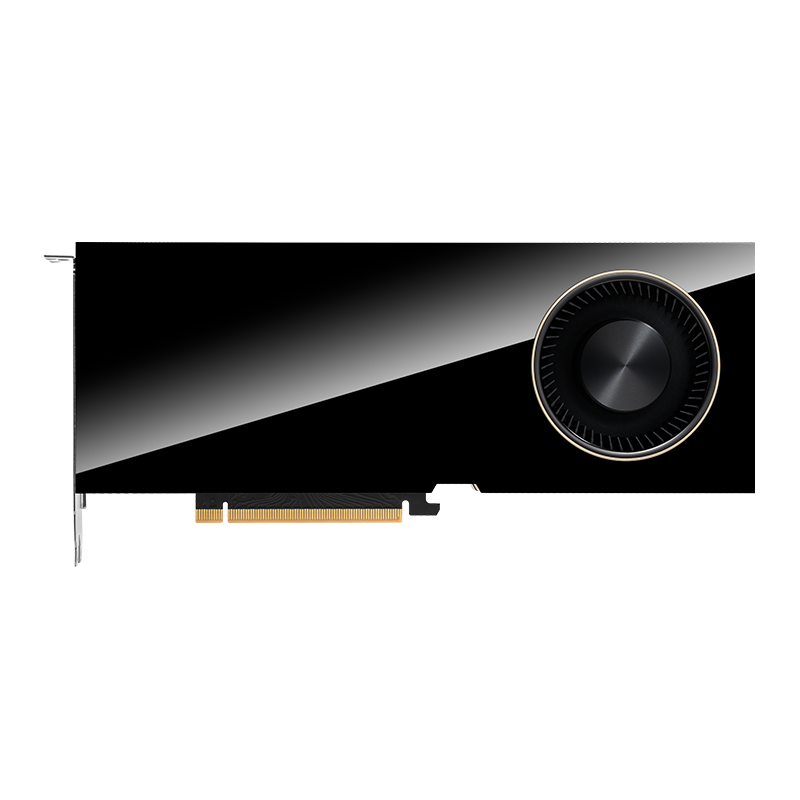

  • NVIDIA RTX 6000 Ada Generation Front
  • NVIDIA RTX 6000 Ada Generation Side

NVIDIA RTX™ 6000 Ada Generation

NVIDIA RTX™ 6000 Ada Generation

  • SKU: VCNRTX6000ADA-PB

Where to Buy

  • Description

    NVIDIA RTX 6000 ADA Generation

    Performance For Endless Possibilities

    The way people work is undergoing a drastic change with distributed teams and remote workers as the new normal. Artists are facing an ever-increasing demand for differentiated and visually compelling content. Designers and engineers are striving to create more complex and efficient designs in highly supply-constrained environments. Scientists, researchers, and medical professionals are faced with incredible challenges that require the rapid development of solutions on a global scale.

    The NVIDIA RTX™ 6000 Ada Generation is designed to meet the challenges of today’s professional workflows. Built on the NVIDIA Ada Lovelace architecture, the RTX 6000 combines 142 third-generation RT Cores, 568 fourth-generation Tensor Cores, and 18176 CUDA® cores with 48GB of graphics memory to deliver the next generation of AI graphics and petaflop inferencing performance for unprecedented speed-up of rendering, AI, graphics, and compute workloads. RTX 6000-powered workstations provide what you need to succeed in today’s ultra-challenging business environment.

    NVIDIA RTX 6000 Ada Generation

    Highlights

    Architecture NVIDIA Ada Lovelace Architecture
    Process Size 4nm NVIDIA Custom Process | TSMC
    Die Size 608.4 mm
    Transistors 76.3 Billion
    CUDA Cores 18176
    Tensor Cores 568 Gen-4
    RT Cores 142 Gen-3
    GPU Memory 48 GB GDDR6 with ECC
    Memory Interface 384-bit
    Graphics Bus PCI Express Gen 4.0 x16
    Display Connectors DP 1.4 (4)
    Form Factor 4.4" H x 10.5" L, Dual-Slot
    Thermal Solution Active Fansink
    AR/MR/VR/XR Capable Yes
    NVIDIA 3D Vision and 3D Vision Pro Support via Optional 3-pin mini-DIN
    Frame Lock Compatible with NVIDIA Quadro Sync II
    Maximum Power Consumption 300 W
    Auxiliary Power Connector 1x PCIe CEMS 16-pin
    NVENC | NVDEC 3x | 3x + AV1 Encode and Decode

    NVIDIA RTX 6000 Ada Generation

    The NVIDIA RTX 6000 Ada combines the highest levels of rendering, visualization, AI, and compute performance available in a professional graphics cards. It provides the capability for massive graphics and visualization, real-time photorealistic rendering, immersive AR/MR/VR/XR environments, powerful compute, and the creation and deployment of AI solutions.

    If you need the most powerful real-time rendering, graphics, AR/MR/VR/XR, compute, and deep learning solution available from a professional desktop workstation the NVIDIA RTX 6000 Ada is the ideal board for your professional desktop workstation.

    Request More Information



    >

  • Features

    NVIDIA RTX 6000 ADA GENERATION

    PERFORMANCE AND USEABILITY FEATURES

    NVIDIA Ada Lovelace Architecture

    NVIDIA RTX™ 6000 Ada Generation is the most powerful workstation GPU offering high-performance, real-time ray tracing, AI-accelerated compute, and professional graphics rendering. Building upon the major SM enhancements from the Ada Lovelace GPU, the NVIDIA Ada Lovelace architecture provides more cores, higher clocks, and a larger L2 cache for more performance to enhance ray tracing operations, tensor matrix operations, and frame rates with DLSS 3.0.

    CUDA Cores

    The NVIDIA Ada Lovelace architecture-based CUDA Cores offer more than 2X the single-precision floating point (FP32) throughput compared to the previous generation, providing significant performance improvements for graphics workflows such as 3D model development and compute for workloads such as desktop simulation for computer-aided engineering (CAE). The RTX 6000 Ada enables two FP32 primary data paths, doubling the peak FP32 operations.

    3rd Generation RT Cores

    Incorporating 3rd generation ray tracing engines, NVIDIA Ada Lovelace architecture-based GPUs provide incredible ray-traced rendering performance. A single RTX 6000 Ada board can render complex professional models with physically accurate shadows, reflections, and refractions to empower users with instant insight. Working in concert with applications leveraging APIs such as NVIDIA OptiX, Microsoft DXR, and Vulkan ray tracing, systems based on the RTX 6000 Ada will power truly interactive design workflows to provide immediate feedback for unprecedented levels of productivity. The RTX 6000 Ada features up to 2X faster ray-triangle intersection throughput compared to the previous generation.

    4th Generation Tensor Cores

    Specialized for deep learning matrix multiply and accumulate math operations at the heart of neural network training and inferencing functions, the RTX 6000 Ada includes enhanced Tensor Cores that accelerate more data types and still support the Fine-Grained Structured Sparsity feature that delivers more than 2X throughput for tensor matrix operations compared to the previous generation. New Tensor Cores will accelerate new FP8 precision modes. Independent floating-point and integer data paths allow more efficient execution of workloads using a mix of computation and addressing calculations.

    PCIe Gen 4

    The RTX 6000 Ada supports PCI Express Gen 4, which provides double the bandwidth of PCIe Gen 3, improving data-transfer speeds from CPU memory for data-intensive tasks like AI and data science.

    Higher Speed GDDR6 Memory

    Built with 48GB GDDR6 memory delivering up to 25% greater throughput for ray tracing, rendering, and AI workloads than the previous generation. The RTX 6000 Ada provides the industry's largest graphics memory footprint to address the largest datasets and models in latency-sensitive professional applications.

    5th Generation NVDEC Engine1

    NVDEC is well suited for transcoding and video playback applications for real-time decoding. The following video codecs are supported for hardware-accelerated decoding: MPEG-2, VC-1, H.264 (AVCHD), H.265 (HEVC), VP8, VP9, and AV1 video formats. Video encoding at 8K/60 will be achievable for professional video editing.

    8th Generation NVENC Engine1

    NVENC can take on the most demanding 4K or 8K video encoding tasks to free up the graphics engine and the CPU for other operations. The RTX 6000 Ada provides better encoding quality than software-based x264 encoders. The RTX 6000 Ada incorporates AV1 video encoding which is 40% more efficient than H.264 encoding for 4K HDR video. AV1 will provide better quality at the same bitrate bandwidth.

    Error Correcting Code (ECC) on Graphics Memory

    Meet strict data integrity requirements for mission-critical applications with uncompromised computing accuracy and reliability for workstations.

    Graphics Preemption

    Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.

    Compute Preemption

    Preemption at the instruction level provides finer-grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.

    Multi-GPU Technology

    NVIDIA SLI® Technology

    Leverage multiple GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system.

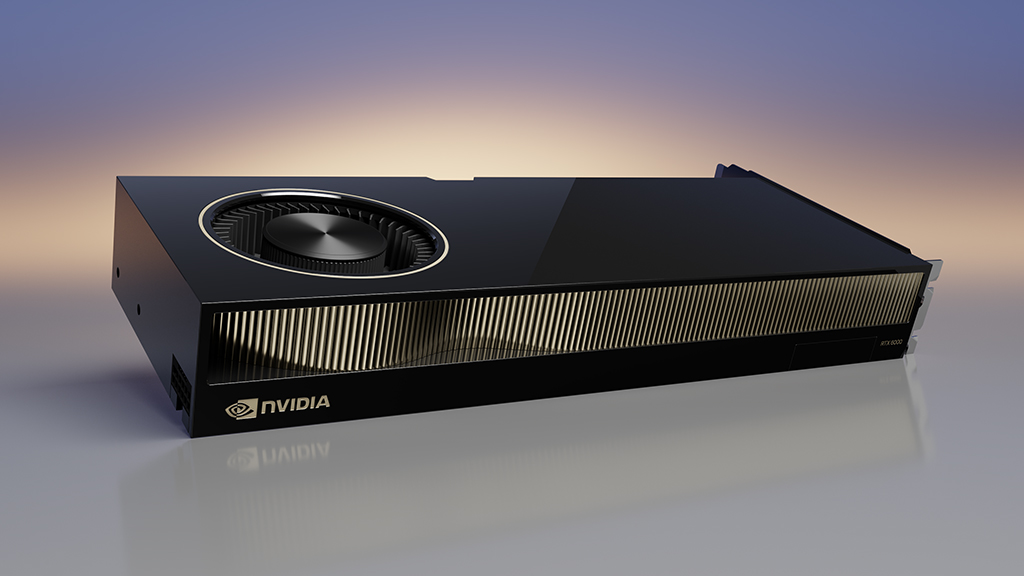

    DISPLAY FEATURES

    NVIDIA Mosaic Technology

    Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

    DisplayPort 1.4a

    Support up to four 5K monitors @ 60Hz, or dual 8K displays @ 60Hz per card. The RTX 6000 Ada supports HDR color for 4K @ 60Hz for 10/12b HEVC decode and up to 4K @ 60Hz for 10b HEVC encode. Each DisplayPort connector can drive ultra-high resolutions of 4096x2160 @ 120 Hz with 30-bit color.

    NVIDIA RTX™ Desktop Manager2

    Gain unprecedented end-user control of the desktop experience for increased productivity in a single large display or multi-display environments, especially in the current age of large, widescreen displays.

    NVIDIA Quadro Sync II

    Synchronize the display and image output of up to 32 displays3 from 8 GPUs (connected through two Sync II boards) in a single system, reducing the number of machines needed to create an advanced video visualization environment.

    Frame Lock Connector Latch

    Each frame lock connector is designed with a self-locking retention mechanism to secure its connection with the frame lock cable to provide robust connectivity and maximum productivity.

    OpenGL Quad Buffered Stereo Support

    Provide a smooth and immersive 3D Stereo experience for professional applications.

    Ultra-High-Resolution Desktop Support

    Get more Mosaic topology choices with high-resolution display devices with a 32K Max desktop size.

    Professional 3D Stereo Synchronization

    Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to an NVIDIA RTX professional graphics card.

    SOFTWARE SUPPORT

    NVIDIA Virtual GPU Software

    Support for NVIDIA virtual GPU (vGPU) software allows a personal workstation to be repurposed into multiple high-performance virtual workstation instances enabling remote users, to share resources to drive high-end design, AI, and compute workloads.

    NVIDIA RTX™ Experience4

    NVIDIA RTX Experience delivers a suite of productivity tools to your desktop workstation, including desktop recording in up to 8K, automatic alerts for the latest NVIDIA RTX Enterprise driver updates, and access gaming features. The application is available for download here.

    Software Optimized for AI

    Deep learning frameworks such as Caffe2, MXNet, CNTK, TensorFlow, and others deliver dramatically faster training times and higher multi-node training performance. GPU-accelerated libraries such as cuDNN, cuBLAS, and TensorRT delivers higher performance for both deep learning inference and High-Performance Computing (HPC) applications.

    NVIDIA CUDA® Parallel Computing Platform

    Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC, and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics.

    Unified Memory

    A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.

    NVIDIA GPUDirect® for Video

    GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.

    NVIDIA Enterprise Management Tools

    Maximize system uptime, seamlessly manage wide-scale deployments, and remotely control graphics and display settings for efficient operations.


    Performance numbers may be subject to change until product availability.


    1This feature requires implementation by software applications, and it is not a stand-alone utility.
    2Product formerly known as NVIDIA Quadro View has undergone a brand transition.
    3Support requires Linux and NVIDIA RTX Enterprise Driver R387 or newer. NVIDIA SLI Certified System required for over 4 GPUs.
    4Product formerly known as NVIDIA Quadro Experience, rebrand effective 4/21/2021.

  • Specifications

    NVIDIA RTX 6000 ADA GENERATION

    SPECIFICATIONS

    Product

    NVIDIA RTX™ 6000 Ada Generation

    Architecture

    NVIDIA Ada Lovelace Architecture

    Foundry

    TSMC

    Process Size

    4 nm NVIDIA Custom Process

    Transistors

    76.3 billion

    Die Size

    608.4 mm2

    CUDA Parallel Processing Cores

    18,176

    NVIDIA Tensor Cores

    568

    NVIDIA RT Cores

    142

    Single-Precision Performance1

    91.1 TFLOPS

    RT Core Performance1

    210.6 TFLOPS

    Tensor Performance1

    1457.0 TFLOPS2

    GPU Memory

    48 GB GDDR6 with ECC

    Memory Interface

    384-bit

    Memory Bandwidth

    960 GB/s

    Max Power Consumption

    300W

    Graphics Bus

    PCI Express 4.0 x16

    Display Connectors

    DP 1.4a (4)3

    Form Factor

    4.4" H x 10.5" L Dual Slot

    Product Weight

    1.180 kg

    Thermal Solution

    Blower Active Fan

    vGPU Software Support3

    NVIDIA vPC/vApps, NVIDIA RTX Virtual Workstation (vWS)

    vGPU Profiles Supported

    1 GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB, 48 GB

    NVIDIA® 3D Vision® and 3D Vision Pro

    Support via 3-pin Mini DIN

    Frame Lock

    Compatible (with Quadro Sync II)

    NVLink

    Not Supported

    NVLink Interconnect

    Not Supported

    Power Connector

    1x PCIe CEM5 16-pin

    NVENC | NVDEC

    3x | 3x (+AV1 Encode & Decode)

    Performance numbers may be subject to change until product availability.


    1Peak rates are based on GPU boost clock.
    2Effective FP8 TFLOPS using the new sparsity feature.
    3Display ports are on by default for the RTX 6000 Ada Generation. Display ports are not active when using vGPU software.
    3Virtualization support for the RTX 6000 Ada Generation will be available in an upcoming NVIDIA virtual GPU (vGPU) release, anticipated in Q1, 2023.
