NVIDIA Spectrum™ SN3000 series

NVIDIA Spectrum™ SN3000 series

Mellanox Spectrum® SN3000

  • SKU: EU-129
Product Brochure
Where to Buy Request More Information

NVIDIA® Spectrum™ SN3000 switches, based on the second-generation Spectrum switch application-specific integrated circuit (ASIC), are purpose-built for leaf, spine, and super-spine data center applications. Allowing maximum flexibility, the SN3000 series provides port speeds spanning from 1 to 200 gigabits per second (Gb/s) with a port density that enables full-rack connectivity to any server at any speed. In addition, the uplink ports allow a variety of blocking ratios to suit any application requirement.

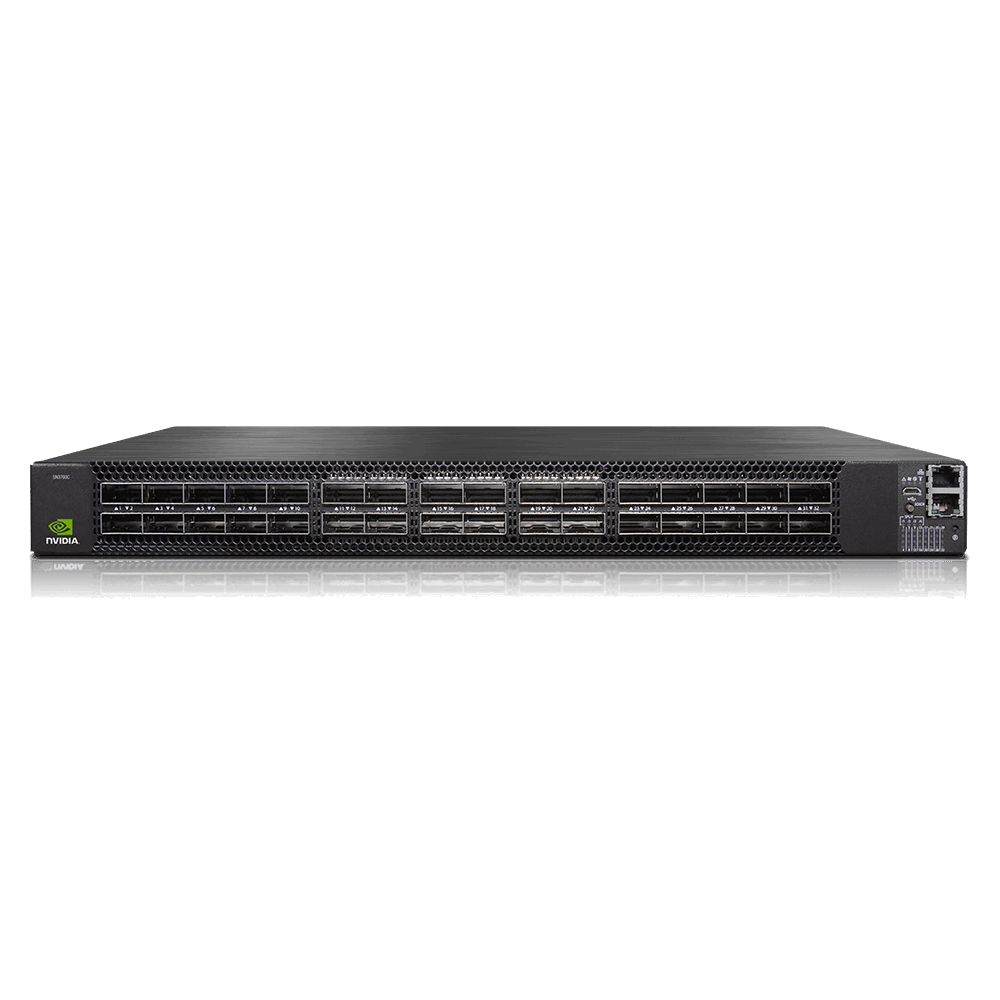

NVIDIA Spectrum™-2 SN3000 Series

NVIDIA Spectrum™-2 SN3000 Series

Ideal for leaf and spine data center network solutions, the SN3000 series delivers maximum flexibility with port speeds up to 200Gb/s per port and port density that enables full-rack connectivity to any server at any speed.

SN3420

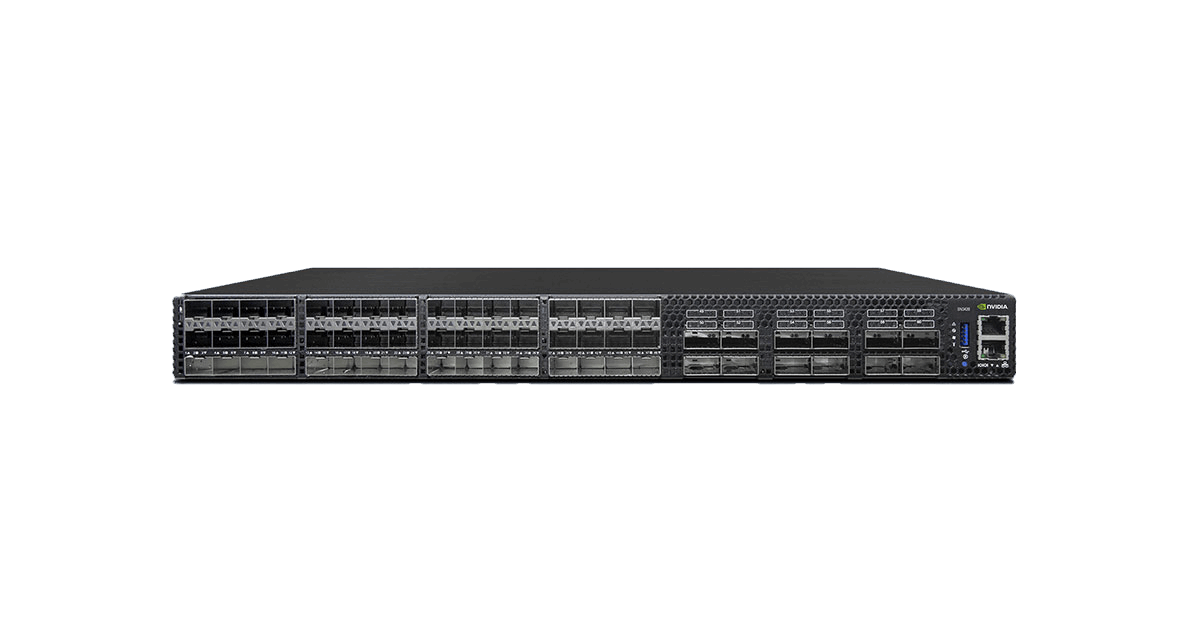

As data center switching architectures increasingly adopt 100GbE, the SN3420 switch offers a high-performance, cost-effective way to evolve host connectivity from 10G to 25G. Equipped with 48 ports of 10/25GbE and 12 ports of up to 100GbE and utilizing 25G NRZ per lane in a compact 1U form factor, the SN3420 is an ideal top-of-rack (ToR) switch platform, delivering a total throughput of up to 2.4Tb/s with a processing capacity of 3.58Bpps. The SN3420 enables the seamless use of QSFP28 connections for leaf-spine topology and future-proofing the data center.
