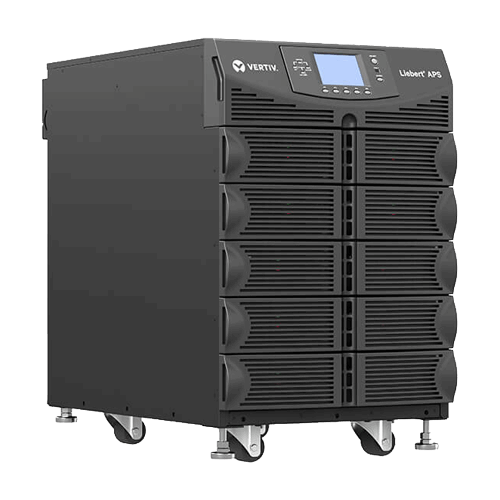

Vertiv™ Liebert® APS Modular UPS 5kVA – 20kVA

Vertiv™ Liebert® APS Modular UPS 5kVA – 20kVA

Vertiv™ Liebert® APS Modular UPS 5kVA – 20kVA

  • SKU: AS1A0NCUMNNXNVM, AS1B0NCVMNNXNVM, AS1C0NCWMNXNVM, AS2A0NCUMNNXNVM, AS2B0NCVMNNXNVM, AS2C0NCWMNXNVM, AS2D0NCXMNXNVM
Product Brochure
Where to Buy Request More Information

The Vertiv™ Liebert® APS is a modular, single phase output UPS, with both single and three phase input options to provide both high availability and flexibility. The Vertiv™ Liebert® APS adapts efficiently and effectively to both immediate and evolving power requirements, offering capacity on demand with flexible power modules which allow capacity upgrades in 5 kVA/4.5kW increments up to 20 kVA N+1.

  • Features
    • High Output Power Factor​: With 0.9 power factor per module (5 kVA / 4.5 kW), it delivers more usable power in the same footprint, optimizing rack and floor space.
    • Intelligent Battery Management​: It has temperature-compensated charging for VRLA. This management extends battery life and reduces replacement costs.
    • Flexible Runtime Options​: Add battery modules or external battery cabinets for extended backup. Scale runtime without taking the load offline, which is ideal for evolving site requirements.
    • Remote Monitoring & Control​: It comes with factory-installed Vertiv™ Liebert® IntelliSlot™ RDU120 card with Vertiv™ LIFE™ Services. This enables secure remote management, predictive analytics, and proactive service to maximize uptime.
    • Compact, Versatile Deployment​: It allows tower or rack configuration with optional PODs for varied outlet types. This fits diverse IT and edge environments with simplified installation and adaptability.

Vertiv™ Liebert® APS Modular UPS 5kVA – 20kVA

The modular design offers maximum power availability with built-in redundancy for fault tolerance.

The Vertiv™ Liebert® APS adapts efficiently and effectively to both immediate and evolving power requirements, offering capacity on demand with flexible power modules which allow capacity upgrades in 5 kVA/4.5kW increments up to 20 kVA N+1.

Modular, Scalable Architecture

Modules come in 5–20 kVA capacity and scalable in 5 kVA increments with N+1 redundancy. With Pay-as-you-grow flexibility, add power or battery modules as demand increases without replacing the entire system.

Fault-Tolerant Design

Built-in, module-level controls mean the UPS will not power down in the event of a module failure.

Hot-Swappable Modules

This user-replaceable power, battery, and control modules allow you to perform maintenance or upgrades without downtime, providing continuous availability.

Built-In Redundancy

It has module-level N+1 redundancy for power and battery, which eliminates single points of failure, so critical loads remain protected even during maintenance or component failure.

Products Part Number

Vertiv™ Liebert® APS UPS 10-Bay Frame 1-Phase 5kVA - AS1A0NCUMNNXNVM

Power Rating: 5 kVA (4.5 kW)

Vertiv™ Liebert® APS UPS 10-Bay Frame 1-Phase 10kVA - AS1B0NCVMNNXNVM

Power Rating:10 kVA (9 kW)

Vertiv™ Liebert® APS UPS 10-Bay Frame 1-Phase 15kVA - AS1C0NCWMNXNVM

Power Rating: 15 kVA (13.5 kW)

Vertiv™ Liebert® APS UPS 16-Bay Frame 1-Phase 5kVA - AS2A0NCUMNNXNVM

Power Rating: 5 kVA (4.5 kW)

Vertiv™ Liebert® APS UPS 16-Bay Frame 1-Phase 10kVA - AS2B0NCVMNNXNVM

Power Rating: 10 kVA (9 kW)

Vertiv™ Liebert® APS UPS 16-Bay Frame 1-Phase 15kVA - AS2C0NCWMNXNVM

Power Rating: 15 kVA (13.5 kW)

Vertiv™ Liebert® APS UPS 16-Bay Frame 1-Phase 20kVA - AS2D0NCXMNXNVM

Power Rating: 20 kVA (18 kW)
