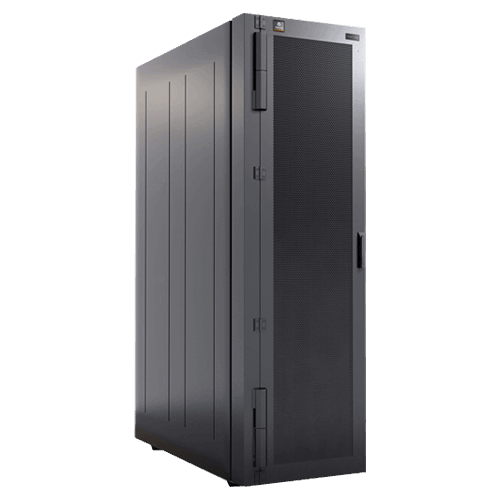

Vertiv™ Liebert® DCD Water Based Cooling Modules up to 50 kW

Vertiv™ Liebert® DCD Water Based Cooling Modules up to 50 kW

Vertiv™ Liebert® DCD Water Based Cooling Modules up to 50 kW

  • SKU: Liebert® DCD35, Liebert® DCD47, Liebert® DCD50

The Liebert® DCD chilled-water cooling family was designed specifically for high heat density applications where the challenges of reducing energy consumption and increasing processing capabilities are the top priority for data center managers. By delivering cooling directly at the source, the DCD Rear Door Heat Exchanger provides highly efficient cooling to produce a room-neutral environment. It is available with advanced controls and monitoring capabilities, allowing for remote access to thermal conditions in the data center at all times.

  • Features
    • Reduced capital expenditures
    • Simplified installation
    • Optimized configuration with in-row or perimeter placement
    • Improved heat rejection capacity
    • Enhanced reliability and efficiency
    • Ensured water quality

Vertiv™ Liebert® DCD Water Based Cooling Modules up to 50 kW

The Liebert® DCD chilled water-based cooling family was designed specifically for high heat density applications.

Where the challenges of reducing energy consumption and increasing processing capabilities are the top priority for data center managers. By delivering cooling directly at the source, the DCD Rear Door Heat Exchanger provides highly efficient cooling to produce a room-neutral environment.

Products Part Number

Liebert® DCD35

Rated Capacity (kW): 35

Capacity Modulation Range:  0 - 100%

Liebert® DCD47

Rated Capacity (kW): 47

Capacity Modulation Range:  0 - 100%

Liebert® DCD50

Rated Capacity (kW): 50

Capacity Modulation Range:  0 - 100%

Support & Resources

Support Phone IconSupport


Technical Specifications


Liebert® DCD35 Liebert® DCD47* Liebert® DCD50
Rated Capacity (kW) 35 47 50
Capacity Modulation Range 0 - 100% 0 - 100% 0 - 100%
Active Module Specifications
Nominal Airflow
m³/h (cfm)
6300 (3700) (n+1 fan)
9000 (5300) (no redundancy)
6300 (3700) (n+1 fan)
9000 (5300) (no redundancy)
7400 (4350) (n+1 fan)
10800 (6350) (no redundancy)
Power Consumption 980 W 980 W 1185 W
Dimensions, mm (in)
Unit W × D × H 600 × 120*** × 1954
(23.5 × 6.0 × 76.9)
600 × 300 × 1954
(23.5 × 8.7 × 76.9)
800 × 120*** × 1954
(31.5 × 6.0 × 76.9)
