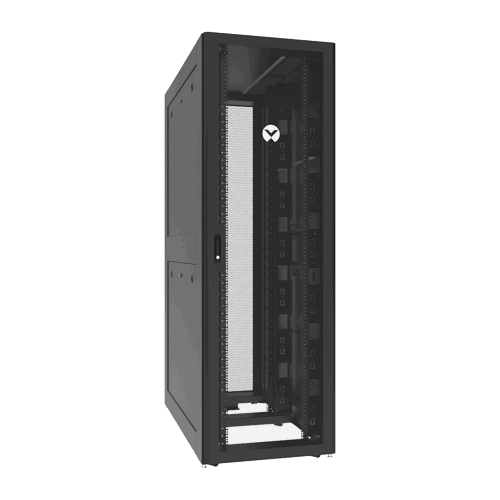

Vertiv™ Rack Extreme

Vertiv™ Rack Extreme

Vertiv™ Rack Extreme

  • SKU: EU-178
Product Brochure
Where to Buy Request More Information

The Vertiv™ Rack Extreme delivers unmatched performance for high density IT and industrial environments. It supports evolving infrastructure needs with its 2,045 kg dynamic and static weight capacity, supporting taller and deeper rack mount equipment. It also offers configurable airflow, cable management, and power options to support evolving infrastructure needs.

  • Features
    • HEX-MESH DOOR DESIGN: It enables efficient cooling and equipment performance within the cabinet and across the data center.
    • TOP CABLE TROUGH (TCT): It provides an optional overhead pathway that keeps cables organized and accessible, optimizing airflow and simplifying maintenance.
    • CABLE ACCESS TOP PANEL: It offers horizontal or vertical access through a brush‑grommet opening, keeping cables organized and reducing clutter.
    • ADJUSTABLE RAILS: It uses depth‑adjustable rails with FMP, T‑slots, and square‑hole patterns to improve flexibility for D-ring accessories.
    • CORNER POWER DISTRIBUTION UNIT (PDU) BARS: It includes two PDU cable bars per cabinet to make power connections easier to access and manage.

Vertiv™ Rack Extreme

Vertiv™ Rack Extreme offers the durability and adaptability requirements of modern data center operations.

With multiple sizes, accessories, and mounting options, the Vertiv™ Rack Extreme offers the durability and adaptability requirements of modern data center operations.

SUPERIOR STRENGTH

Its fully welded frame and 2.5-mm mounting rails support up to 2,045 kg. of static and dynamic load for exceptional performance and durability in high density environments.

ENHANCED STRUCTURAL CAPACITY

It accommodates heavier, taller, and deeper rack-mount equipment with both static and dynamic weight ratings.

EFFICIENT AIRFLOW AND CABLING

Its integrated features and optional accessories optimize airflow and cable management in high-density environments.

RELIABLE TRANSPORT AND DEPLOYMENT

It uses innovative shipping solutions, including shock pallets and multi use ramps, to protect equipment and enable efficient global deployment.

Support & Resources

Model Specifications Overview

Model Overview

Height (RMU) Width (mm) Depth (mm) Color Doors Shipping Example
GLxxUEX-52 600 1100 B (Black) MM (Mesh front/rear) PL (Standard Pallet) Configured Vertiv™ Rack Xtreme

45UEX-80120B-MS-PL
45U × 800mmW × 1200mmD,
black,
mesh front and split mesh rear door,
standard pallet
GLxxUEX-48 750 1200 W (White) MS (Mesh front / split mesh rear) SP (Shock Pallet)
GLxxUEX-45 800 1400 SS SC (Shock Crate)1
GLxxUEX-42 1600*

* Only with additional extension frame.
