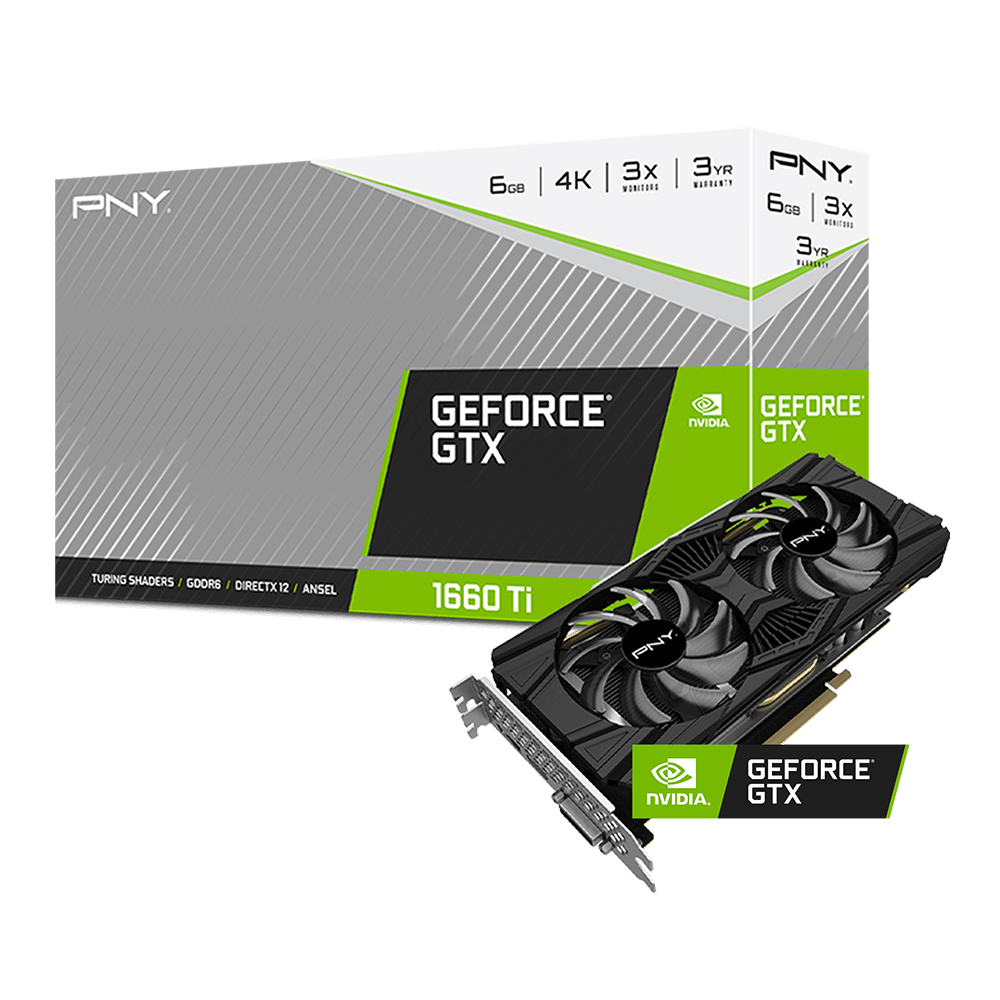

PNY GEFORCE® GTX 1660 Ti 6GB Dual Fan

SKU: VCG1660T6DFPPB

Where to Buy

Description

PNY GeForce GTX 1660 Ti 6GB Dual Fan

Best-In-Class Performance

Best-in-class performance with the advanced graphics capabilities of the award-winning NVIDIA^® Turing™ architecture.

Turing Shaders

Concurrent execution of floating point and integer operations, adaptive shading technology, and a new unified memory architecture enable awesome performance increases on today's games.

State-Of-The-Art-Graphics

State-of-the-art graphics features, including variable rate shading, mesh shading, and multi-view rendering.

Overview

The GeForce^® GTX 1660 Ti™ is up to 20% faster than the original GTX 1660 and up to 1.5X faster than the previous-generation GTX 1060 6GB. Powered by the award-winning NVIDIA Turing architecture and ultra-fast GDDR6 memory, it's a supercharger for today's most popular games. Time to gear up and get SUPER.

Experience the breakthrough graphics performance of the award-winning NVIDIA Turing™ architecture with GeForce^® GTX 16 Series graphics cards and laptops. Upgrade your PC for performance that's blazing-fast on today's most popular games, and even faster with modern titles. Step up to GeForce GTX.

Get game ready with performance that rivals the GeForce GTX 1070 on the latest games with the GeForce GTX 1660 Ti.

KEY FEATURES

Based on Turing Architecture
NVIDIA GeForce Experience™
NVIDIA Ansel
NVIDIA Highlights
NVIDIA^® G-SYNC™ Compatible
Game Ready Drivers
Microsoft^® DirectX^® 12 API, Vulkan API, OpenGL 4.6
DisplayPort 1.4, HDMI 2.0b, DVI-D
HDCP 2.2
NVIDIA GPU Boost™
VR Ready

SYSTEM REQUIREMENTS

PCI Express-compliant motherboard with one dual-width x16 graphics slot
One 8-pin supplementary power connectors
450 W or greater system power supply²
1.5GB available hard-disk space
8GB system memory (16GB or higher recommended)
Microsoft Windows 10 (April 2018 update or later), Windows 7 64-bit, Linux 64-bit
Internet connection³

Product Specifications

PNY Part Number	VCG1660T6DFPPB
UPC Code	751492649351
CUDA Cores	1536
Clock Speed	1500 MHz
Boost Speed	1770 MHz
Memory Speed (Gbps)	14
Memory Size	6GB GDDR6
Memory Interface	192-bit
Memory Bandwidth (GB/sec)	288
TDP	120 W
NVLink	Not Supported

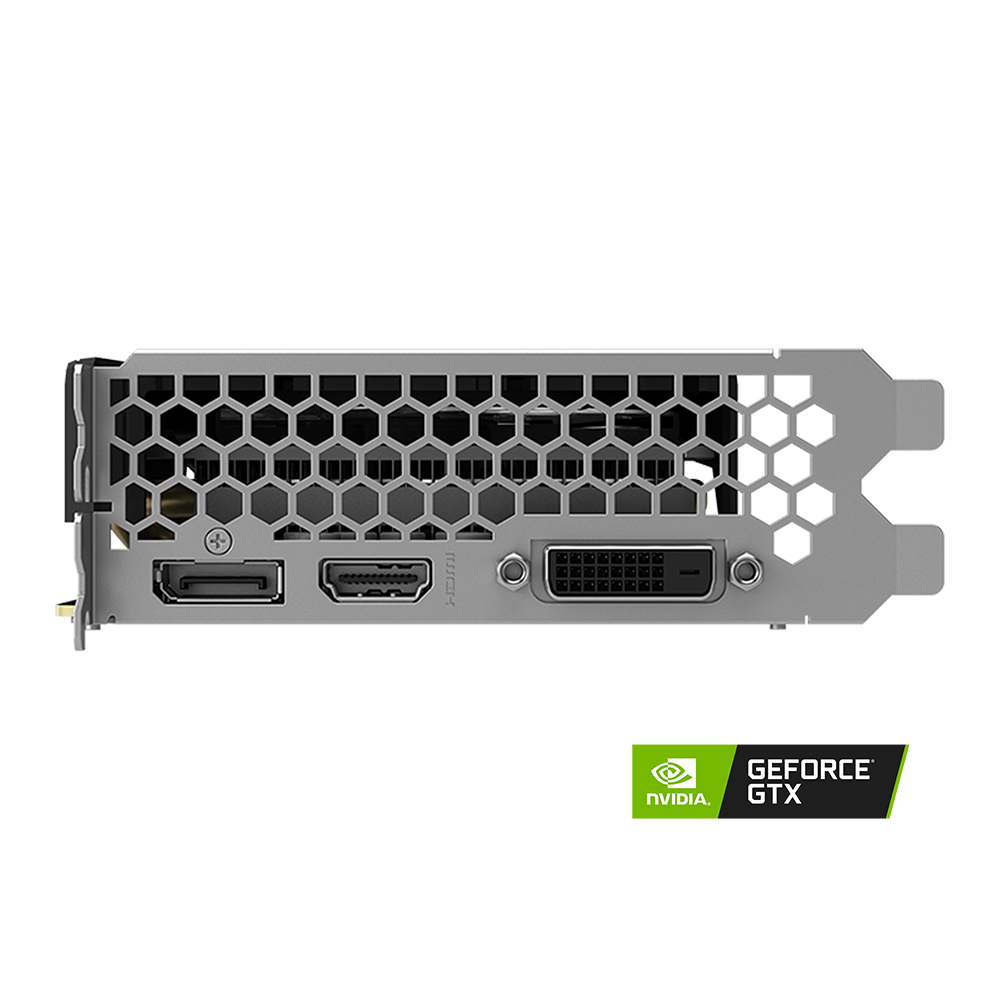

Outputs	DisplayPort 1.4, HDMI 2.0b, DVI-D
Multi-Screen	Yes
Resolution	7680 × 4320 @60Hz (Digital)¹
Power Input	One 8-Pin
Bus Type	PCI-Express 3.0 × 16
Card Dimensions	23.5" x 11.4" x 3.5"; Dual-Slot

Warranty

3 Year

Product Resources

Resources & Downloads
Product Support & FAQs
Quick Start Guide
GeForce Experience

Tech Support

Have a question?
Support Form

7680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 × 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.
