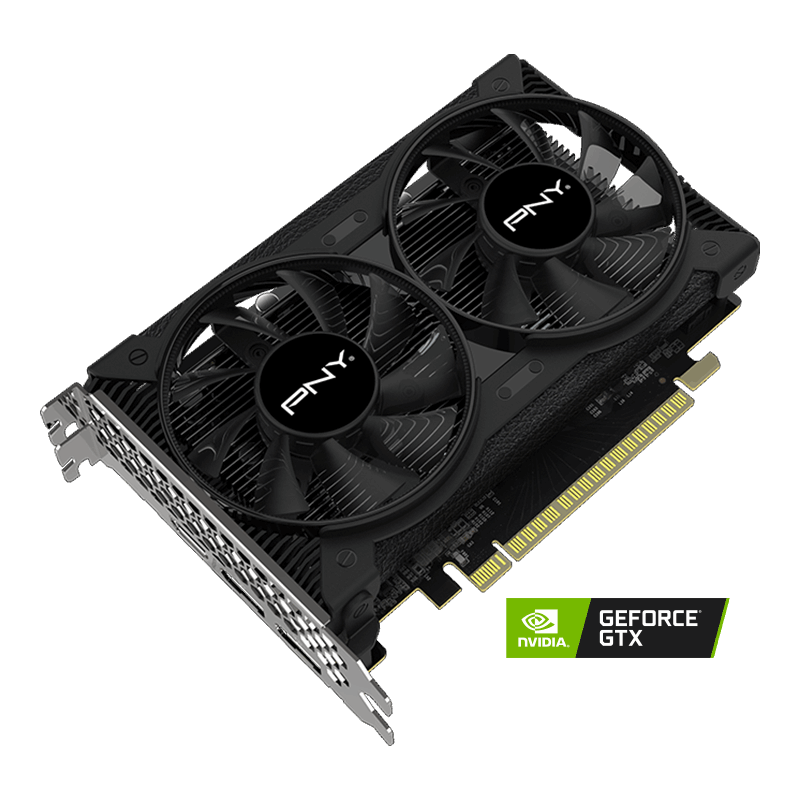

  •  PNY GeForce GTX 1630 4GB Dual Fan

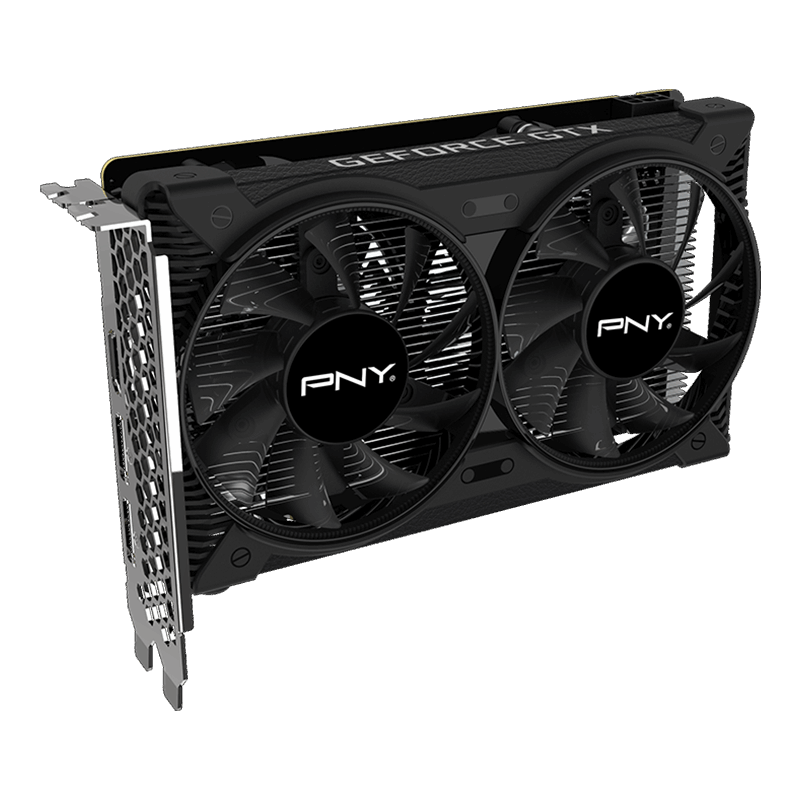

  •  PNY GeForce GTX 1630 4GB Dual Fan Right Angle

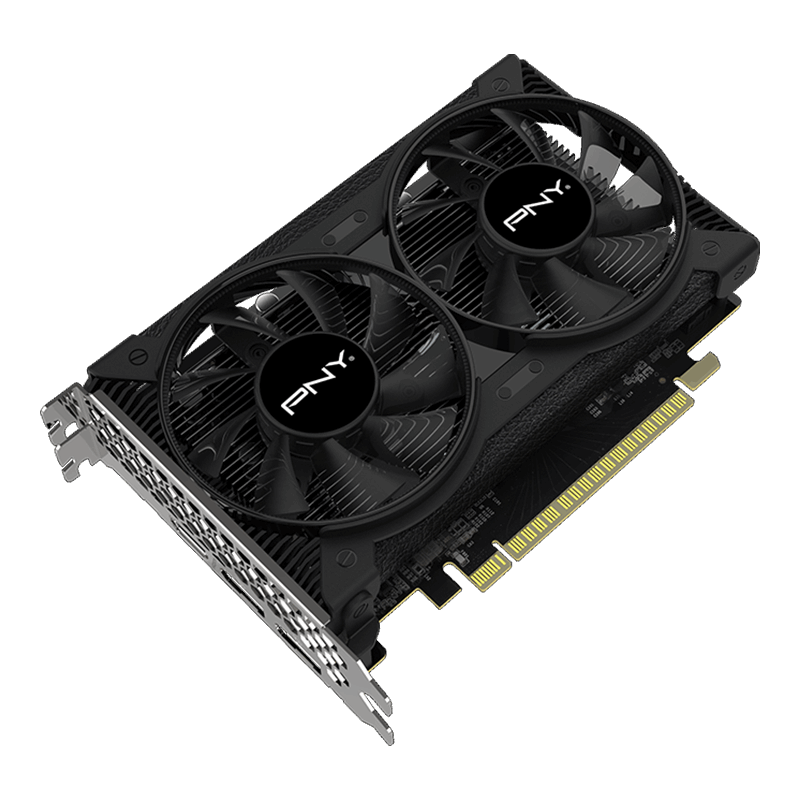

  •  PNY GeForce GTX 1630 4GB Dual Fan Side Angle

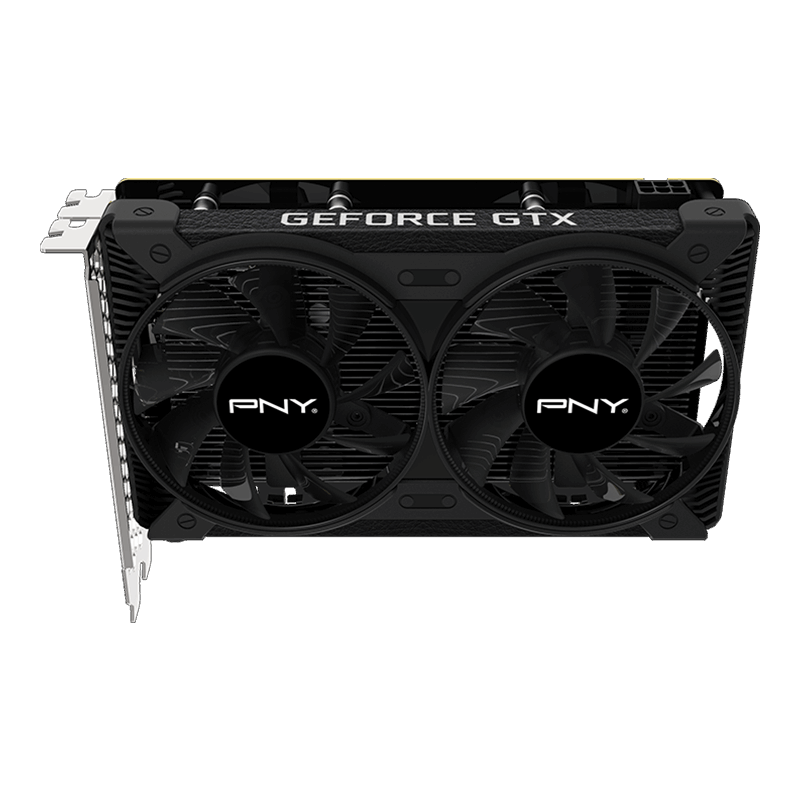

  •  PNY GeForce GTX 1630 4GB Dual Fan Top Angle

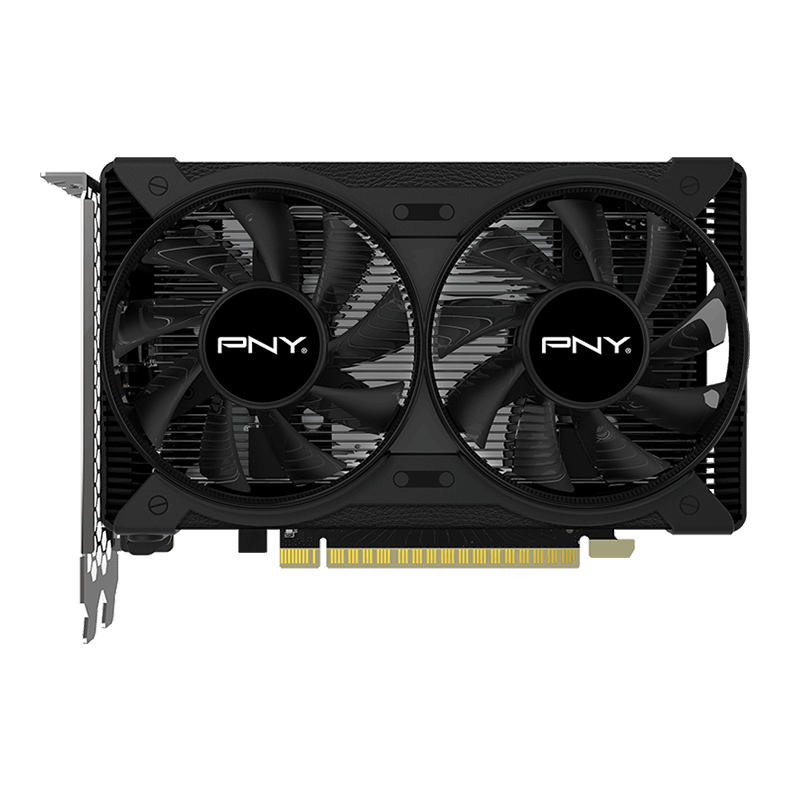

  •  PNY GeForce GTX 1630 4GB Dual Fan Top

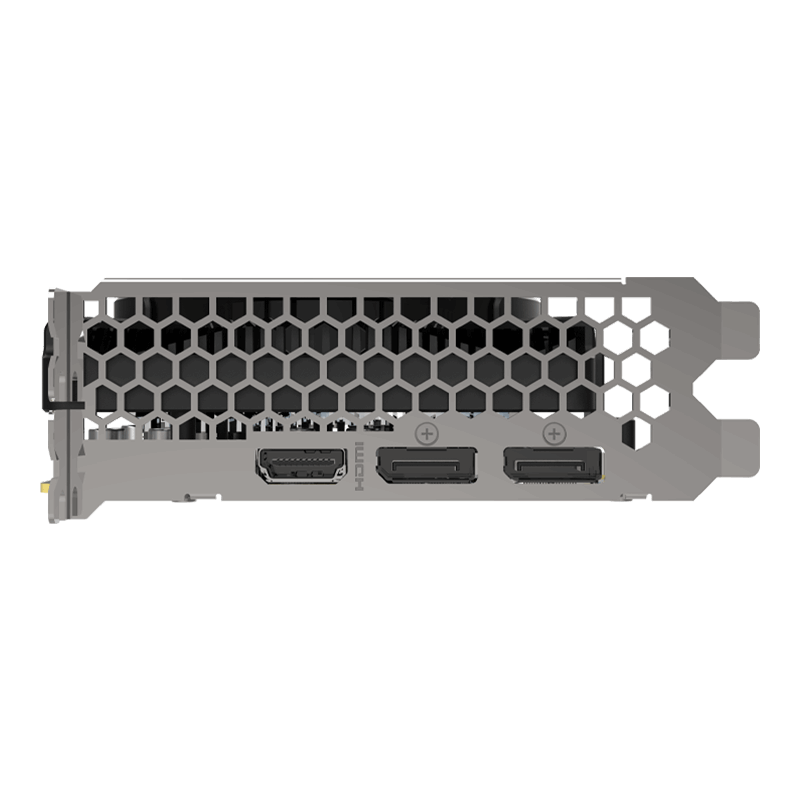

  •  PNY GeForce GTX 1630 4GB Dual Fan Front

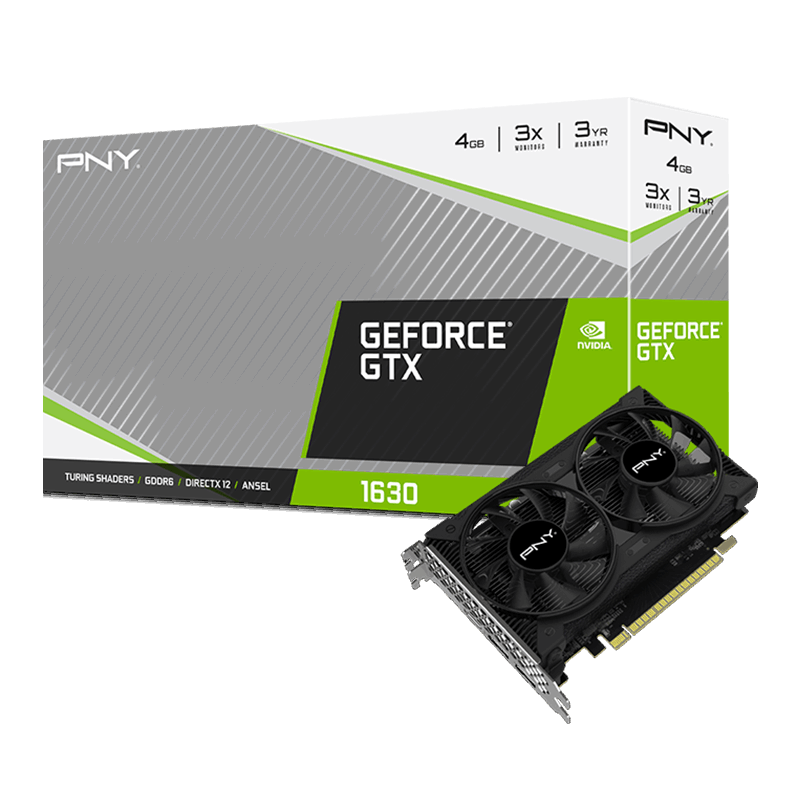

  •  PNY GeForce GTX 1630 4GB Dual Fan with Packaging
  •  PNY GeForce GTX 1630 4GB Dual Fan Package

PNY GeForce GTX 1630 4GB Dual Fan

PNY GeForce® GTX 1630 4GB Dual Fan

  • SKU: VCG16304DFPPB
  • Description

    PNY GeForce GTX 1630 4GB Dual Fan

    Performance Icon
    Best-In-Class Performance

    Best-in-class performance with the advanced graphics capabilities of the award-winning NVIDIA® Turing™ architecture.

    Turing Shaders Icon
    Turing Shaders

    Concurrent execution of floating point and integer operations, adaptive shading technology, and a new unified memory architecture enable awesome performance increases on today’s games.

    State of the Art Graphics Icon

    State-of-the-art graphics features, including variable rate shading, mesh shading, and multi-view rendering.


    The GeForce® GTX 1630 is built with powerful graphics performance of the award-winning NVIDIA Turing™ architecture. It’s a supercharger for today’s most popular games, and even faster with modern titles.

    This graphics card is designed to deliver a powerful combination of gaming innovation, next-gen graphics, and quiet, power-efficient operation.

    Easily upgrade your PC and get game ready with performance. Step up to better gaming with GeForce GTX.


    • Based on Turing Architecture
    • GDDR6 Graphics Memory
    • NVIDIA® GeForce Experience™
    • NVIDIA® Ansel
    • NVIDIA® Highlights
    • Game Ready Drivers
    • Microsoft® DirectX® 12 API, Vulkan API, OpenGL 4.6
    • DisplayPort 1.4a (x2), HDMI 2.0b
    • HDCP 2.2
    • NVIDIA® GPU Boost™


    • PCI Express-compliant motherboard with one dual-width x16 graphics slot
    • One 6-pin supplementary power connectors
    • 300 W or greater system power supply2
    • 1.5 GB available hard-disk space
    • 4GB system memory (8 GB recommended)
    • Microsoft Windows® 11 64-bit, Microsoft Windows® 10 64-bit (April 2018 update or later), Linux 64-bit
    • Internet connection3
    Product Specifications
    PNY Part Number UPC Code CUDA Cores Clock Speed Boost Speed Memory Speed (Gbps) Memory Size Memory Interface Memory Bandwidth (GB/sec) TDP NVLink Outputs Multi-Screen Resolution Power Input Bus Type Card Dimensions Box Dimensions
    VCG16304DFPPB 751492680682 512 1740 MHz 1785 MHz 12 4GB GDDR6 64-bit 96 75 W Not Supported DisplayPort 1.4a (x2), HDMI 2.0b Yes 7680 x 4320 @60Hz (Digital)1 One 6-Pin PCI-Express 3.0 x 16 6.69" x 4.41" x 1.57"; Dual-Slot 12.4" x 2.24" x 7.12"

    GeForce GTX

    Warranty Shield Icon


    3 Year

    Tech Support Icon

    Tech Support

    Have a question?
    Call a Specialist or chat online.
    Call 1-800-234-4597.

    1. 7680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 × 4320 @60Hz YUV420 8-bit with DisplayPort 1.4a connector.

    2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

    3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.
