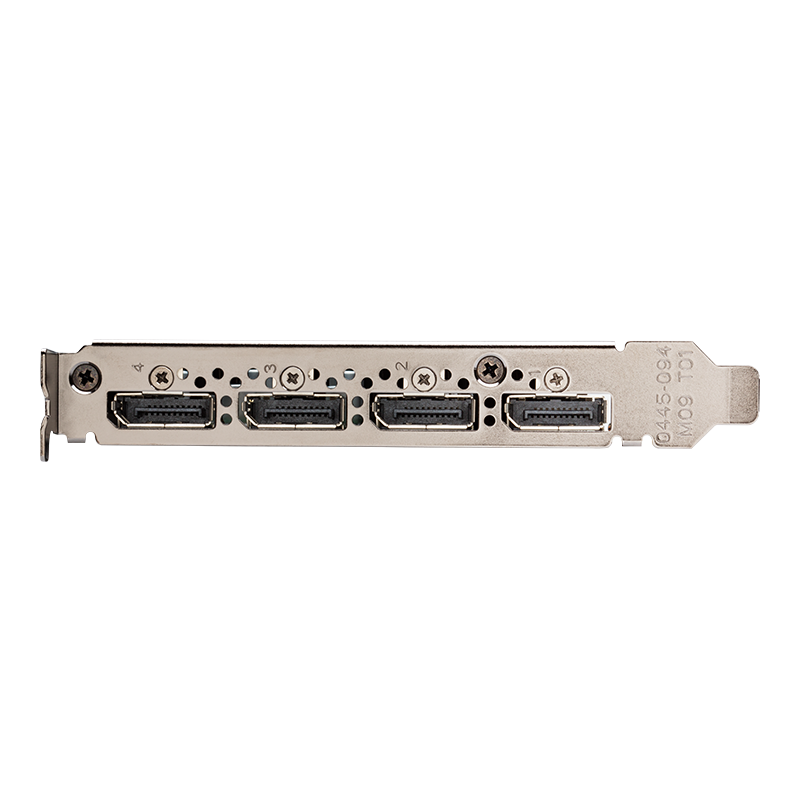

NVIDIA Quadro M4000 Bracket

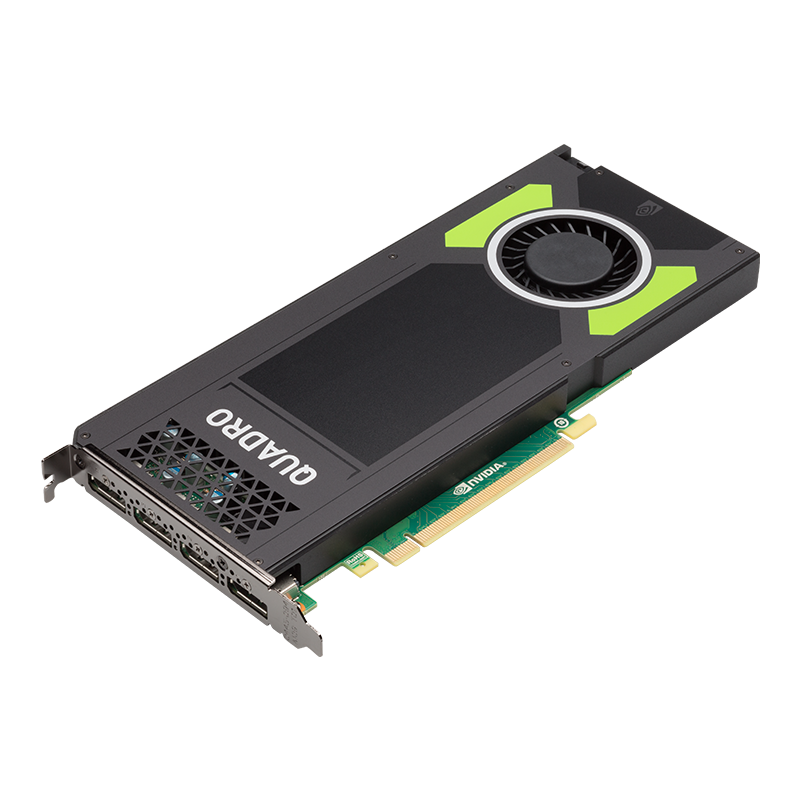

NVIDIA Quadro M4000 Front Angle

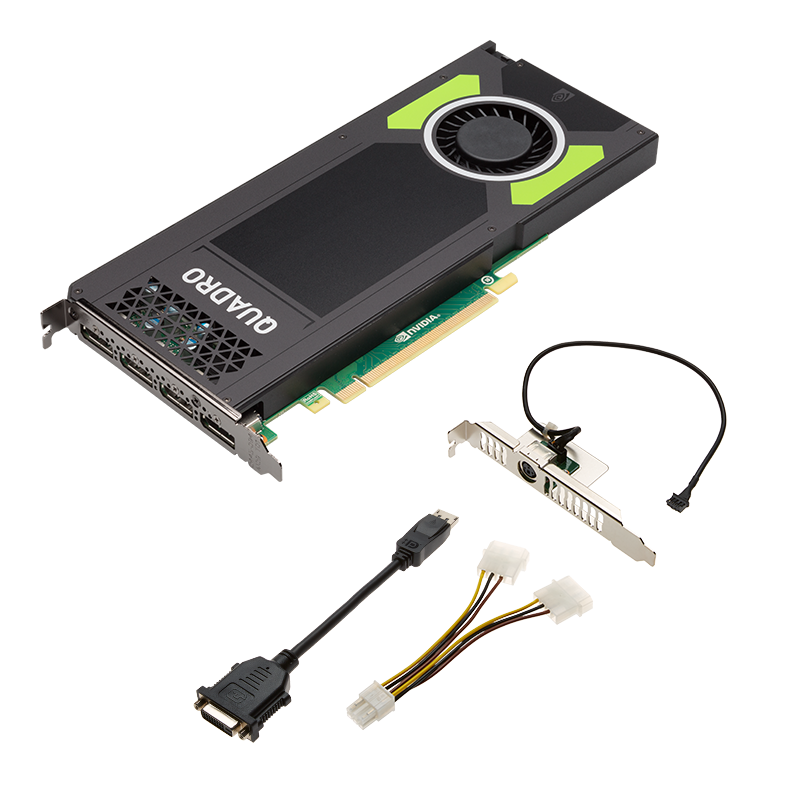

NVIDIA Quadro M4000 Kit

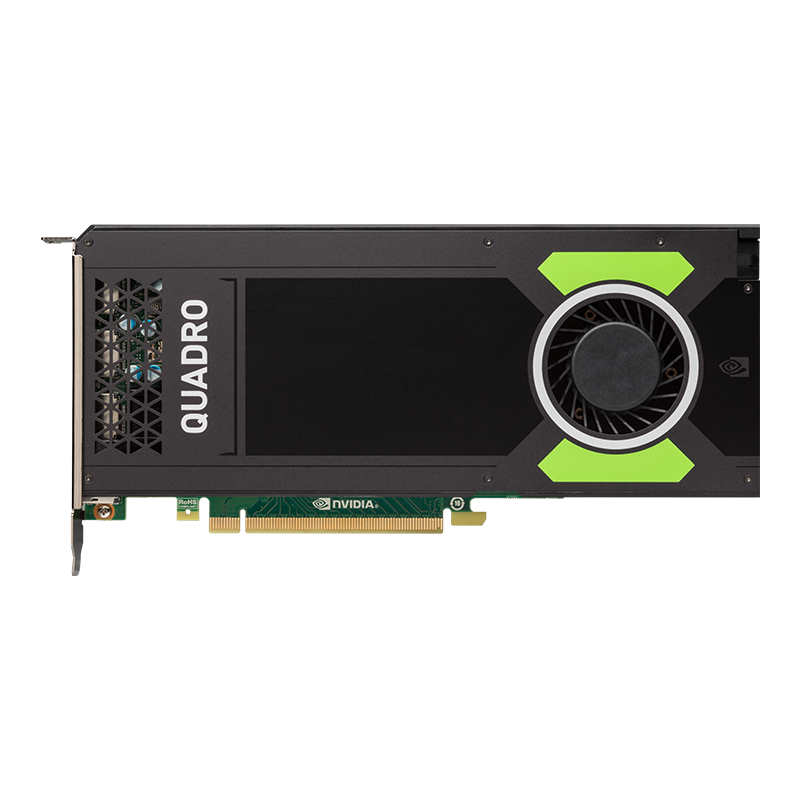

NVIDIA Quadro M4000 Front

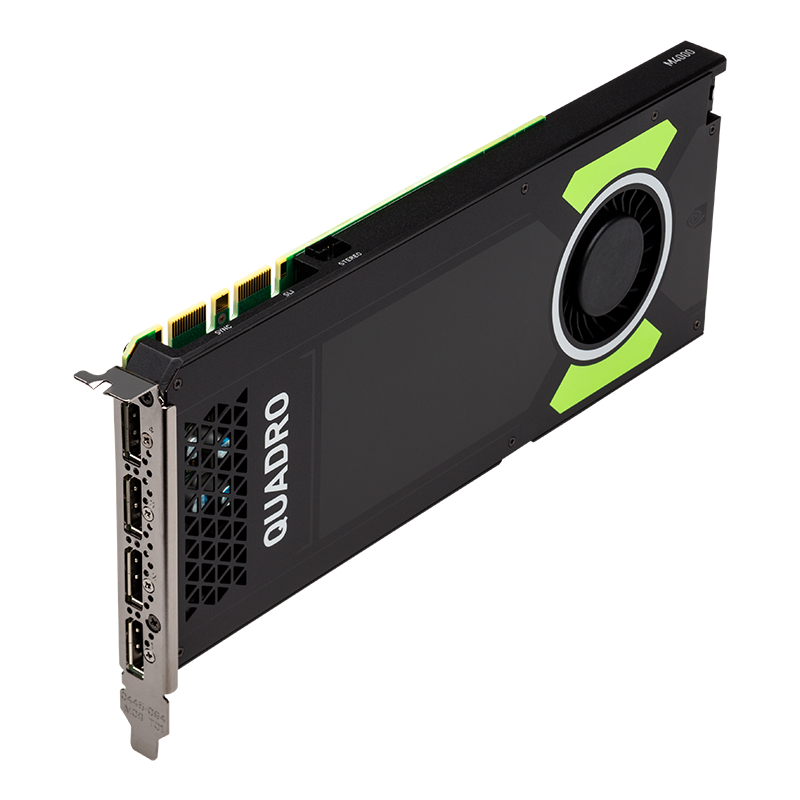

NVIDIA Quadro M4000 Top
NVIDIA Quadro M4000 Bracket
NVIDIA Quadro M4000 Front Angle
NVIDIA Quadro M4000 Kit
NVIDIA Quadro M4000 Front
NVIDIA Quadro M4000 Top

NVIDIA Quadro M4000

NVIDIA® Quadro M4000

  • SKU: VCQM4000-PB
  • Description

    Legacy NVIDIA Quadro

    NVIDIA Quadro M4000

    Extreme Performance in a Single-Slot Form Factor

    Get real interactive expression with NVIDIA® Quadro®—the world’s most powerful workstation graphics. Tackle your most demanding visualization workloads with ease using the advanced NVIDIA Maxwell™ GPU architecture and the flexibility of a single-slot form factor. 8 GB of ultra-fast memory enables the creation and rendering of large, complex models and the computation of massive datasets. A new display engine drives up to four 4K resolutions displays natively (4096 x 2160 at 60 Hz with 30-bit color). Pair up two or more outputs to drive displays greater than 4K, and take advantage of NVIDIA Quadro Sync support to frame-lock multiple displays together, or use external I/O boards and NVIDIA’s GPUDirect™ for Video to integrate the NVIDIA Quadro M4000 into broadcast, video or film production workflows.

    Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media and entertainment, sciences, and energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization and simulation, or spectacular visual storytelling—and get results to market faster.

    Highlights

    CUDA Cores 1664
    GPU Memory 8 GB GDDR5
    Memory Interface 256-bit
    Memory Bandwidth 192 GB/s
    System Interface PCI Express 3.0 x16
    Display Connectors DP 1.2 (4) + Stereo
    DisplayPort 1.2 Yes
    Warranty 3 Years
    PNY Part Number VCQM4000-PB

    MANUFACTURING SOLUTIONS

    PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3-year warranty, pre- and post-sales support, dedicated NVIDIA Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install.

    Warranty


    PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3-year warranty, free pre- and post-sales support, dedicated NVIDIA Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install.

    3-Year Limited Warranty

    Free dedicated phone and email technical support (1-800-230-0130)

    Dedicated NVIDIA Quadro Field Application Engineers

    Contact gopny@pny.com for additional information.

  • Features

    NVIDIA Quadro M4000

    FEATURES & BENEFITS

    3D Graphics Architecture

    • Scalable geometry architecture
    • Hardware tessellation engine
    • NVIDIA GigaThread engine with dual copy engines
    • Shader Model 5.0 (OpenGL 4.5 and DirectX 12)
    • Up to 16K x 16K texture and render processing
    • Transparent multisampling and super sampling
    • 16x angle independent anisotropic filtering
    • 128-bit floating point performance
    • 32-bit per component floating point texture filtering and blending
    • 64X full scene antialiasing
    • FXAA and TXAA full scene antialiasing
    • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
    • Dedicated H.264 encoder
    • Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)
    • NVIDIA GPU Boost automatically adjusts the GPU engine throughput to maximize application performance.

    Parallel Computing Capabilities

    • SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)
    • HyperQ (allows multiple CPU cores to simultaneously utilize a single M4000 GPU to execute independent compute kernels)
    • Dynamic Parallelism (GPU dynamically spans new threads without going back to the CPU)
    • API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
    • NVIDIA Parallel Data Cache hierarchy (per SM L1 and unified L2 caches)
    • 96KB of RAM (dedicated shard memory per SM)

    Advanced Display Features

    • 30-bit color (10-bit per each red, green and blue channel)
    • Support for any combination of four connected displays
    • DisplayPort 1.2 (supporting resolutions such as 4096 x 2160 at 60 Hz)
    • DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables optionally available (resolution support based on dongle specifications)
    • 10-bit internal display processing (hardware support for 10-bit scanout for both windowed desktop and full screen, only available on Windows with Aero disabled and Linux
    • NVIDIA 3D Vision™ technology, 3D DLP, interleaved, and other 3D stereo format support
    • Full OpenGL quad buffered stereo support
    • Underscan/overscan compensation and hardware scaling
    • Support for NVIDIA Quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools
    • Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA Mosaic, NVIDIA Sync and NVIDIA Warp/Blend technologies

    DisplayPort and HDMI Digital Audio

    • Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
    • Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176KHz, and 192 KHz
    • Word sizes of 16-bit, 20-bit, and 24-bit

    GPU FEATURES

    Maxwell Streaming Multiprocessor

    The heart of Maxwell’s power efficient performance is its newly designed Streaming Multiprocessor which delivers incredible performance and unmatched power efficiency, through an improved instruction scheduler and new data path organization.

    Maxwell Memory Architecture

    Improved caching effectiveness and significant enhancements in memory compression techniques in Maxwell reduces traffic and provides higher performance for applications dependent on memory bandwidth. Additionally, Maxwell‘s dedicated shared memory per SM (separated from the L1 cache) and larger L2 cache, dramatically improves programmability and efficiency.

    Viewport Multicast

    Dedicated hardware to automatically broadcast input geometry to render to multiple render targets which drastically speeds up multi projection (the ability to render the same scene from multiple views) leading to accelerated rendering for cube maps used in multi-view projectors.

    Sparse Textures

    Virtualizes texture sizes enabling applications to seamlessly work with large and complex data sets regardless of the available frame buffer.

    Accelerated Voxelization

    Enhancements to voxel handling techniques enables fast voxelization which significantly accelerates workflows like fluid simulation and 3D Printing.

    Bindless Graphics

    Optimizes GPU utilization by dramatically reducing CPU-GPU interactions, enabling developers to implement more sophisticated and complex algorithms providing end users greater performance and higher levels of visual fidelity.

    H.264 and HEVC Encoder

    Dedicated H.264 and HEVC encode engine that is independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications.

    NVIDIA CUDA Architecture

    Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.

    NVIDIA Scalable Geometry Engine

    Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.

    Dynamic Parallelism

    Simplifies GPU programming by allowing programmers to easily accelerate all parallel nested loops – resulting in a GPU dynamically spawning new threads on its own without going back to the CPU.

    Large Framebuffers with Ultra-Fast Bandwidth

    Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets.

    PCI Express 3.0 Compliance

    Supports data transfer rate up to 8 GB/sec per lane for an aggregate bandwidth of 32 GB/sec bi-directional (16 GB/sec in each direction.)

    Unified Driver Architecture (UDA)

    Guarantees forward and backward compatibility with software drivers, simplifying upgrading to a new NVIDIA Quadro solution whenever you're ready.

    Remote Workstation Application Acceleration

    Remotely interact with professional GPU-accelerated applications through software such as Microsoft RDP and Splashtop.

    Ultra-Quiet Design

    Silent cooling design enables lower acoustics for an ultra-quiet desktop environment.

    NVIDIA GPU Boost

    Automatically maximizes application performance in real time while staying within the power and thermal envelope of the card.

    IMAGE QUALITY

    Multi-pixel Programmable Sampling

    Maxwell features multi-pixel programmable sampling, increasing sample flexibility and improved sample randomization which reduces quantization artifacts. This results in superior image quality without penalizing performance.

    Full-Scene Antialiasing (FSAA)

    Up to 64X FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes.

    NVIDIA FXAA and TXAA

    Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.

    16K Texture and Render Processing

    Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.

    DISPLAY FEATURES

    NVIDIA Quadro Mosaic Technology

    Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality.

    Multi-Display Support

    All-new display engine drives up to four displays simultaneously and fully supports the next generation Display Port 1.2 standard capable of resolutions such as 3840 x 2160 at 60Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.

    NVIDIA NVIEW Advanced Desktop Software

    This software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.

    DisplayPort 1.2 Support (with Audio)

    Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and ultra-high-resolution panels (up to 3840 x 2160 at 60Hz ). This enables maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.

    NVIDIA Quadro Sync

    Synchronizes the display and image output from one system or across a cluster of multiple systems. The NVIDIA Quadro Sync board manages up to 16 displays from 4 GPUs in one system, reducing the number of machines needed to power a video wall or multi-projector visualization environment, and supports image and frame synchronization between up to four GPUs when running NVIDIA Quadro Mosaic or independent GPUs in cluster. NVIDIA Quadro Sync also allows synchronization to an external timing source (also known as genlock or house sync). NVIDIA Quadro Sync enables advanced visualization systems to scale the resolution of the display surface with multiple projectors or displays with standard applications or applications designed for clusters.

    NVIDIA 3D Vision and 3D Vision Pro

    Advanced active shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro are sold separately.

    OpenGL Quad Buffered Stereo Support

    Provides a smooth and immersive 3D Stereo experience for professional applications.

    Professional 3D Stereo Synchronization

    Enables robust control of stereo effect through a dedicated three-pin mini-din connection to directly synchronize 3D stereo hardware to NVIDIA Quadro graphics card.

    Deep Color Processing and Display

    Preserve color detail and precision throughout the processing and display pipeline for smooth gradients transitions, even on high dynamic range imagery. Each color component can be processed at up to 32-bit floating point precision and displayed at up to 12-bit precision with supported DisplayPort 1.2 or HDMI 1.4 displays.

    SOFTWARE SUPPORT

    NVIDIA CUDA Parallel Computing Platform

    Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.

    Unified Memory

    A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.

    NVIDIA GPUDirect for Video

    GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.

    NVIDIA Enterprise-Management Tools

    Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.

    MULTI-GPU TECHNOLOGY SUPPORT

    NVIDIA Multi-GPU Technology

    NVIDIA Multi-GPU powered workstations combine the visualization and interactive design capability of multiple GPUs, by leveraging any combination of NVIDIA Quadro and Tesla GPUs to intelligently scale the performance of your application and dramatically speed up your production workflow.

  • Specifications

    NVIDIA Quadro M4000

    SPECIFICATIONS

    Compatible in all systems that accept an NVIDIA Quadro M4000

    CUDA Cores 1664
    GPU Memory 8GB GDDR5
    Memory Interface 256-bit
    Memory Bandwidth 192 GB/s
    System Interface PCI Express 3.0 x16
    Maximum Power Consumption 120 W
    Energy Star Enabling Yes
    Thermal Solution Ultra-quiet active fansink
    Form Factor 4.40” H x 9.50” L, Single Slot
    Display Connectors DP 1.2 (4) + Stereo
    DisplayPort 1.2 Yes
    DisplayPort with Audio Yes
    DVI-D Single-Link Connector Via included adapter
    Number of Displays Supported 4
    Maximum DP 1.2 Resolution 4096 x 2160 at 60Hz
    HDCP Support Yes
    Professional 3D Support Yes, via included stereo connector bracket
    Quadro Sync Compatible Yes
    NVIDIA GPU Direct Compatible Yes
    Graphics APIs Shader Model 5.0, OpenGL 4.5, DirectX 12
    Compute APIs CUDA, DirectCompute, OpenCL
    NVIEW Yes
    NVIDIA MOSAIC Yes (Windows 10, 8.1, 8, 7, and Linux)
    NVIDIA 3D Vision and 3D Vision Pro Yes
    Warranty 3 Years
    PNY Part Number VCQM4000-PB

    MINIMUM SYSTEM HARDWARE REQUIREMENTS

    • Microsoft Windows® 10, 8.1, 8, 7, Vista, Linux®, or Solaris®
    • PCIe x16 Gen 3 (preferred) expansion slot
    • 2 GB or more of system memory, 8 GB recommended
    • 200MB of available disk space for full driver installation
    • Blu-ray or DVD-ROM drive
    • Internet connection (if preferred for driver installation)
    • DisplayPort, DVI, or VGA compatible display(s)

    PACKAGE CONTAINS

    • NVIDIA Quadro M4000 professional graphics board
    • Stereo connector bracket
    • DisplayPort to DVI-D SL adapter
    • 6-pin auxiliary power cable
    • Software installation disc for Windows 10, 8.1, 8, 7, and Vista (32- and 64-bit)
