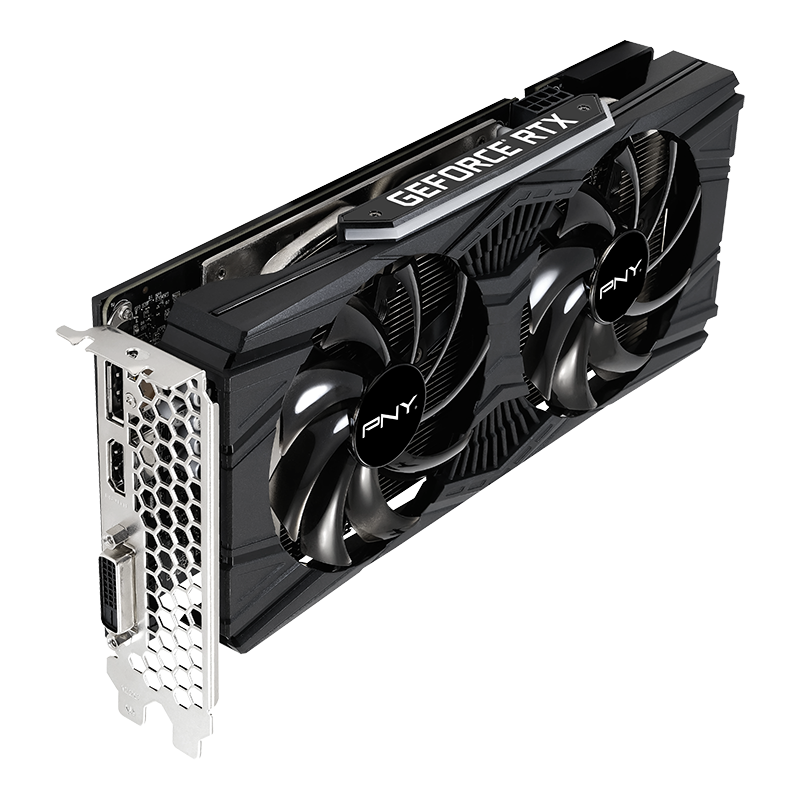

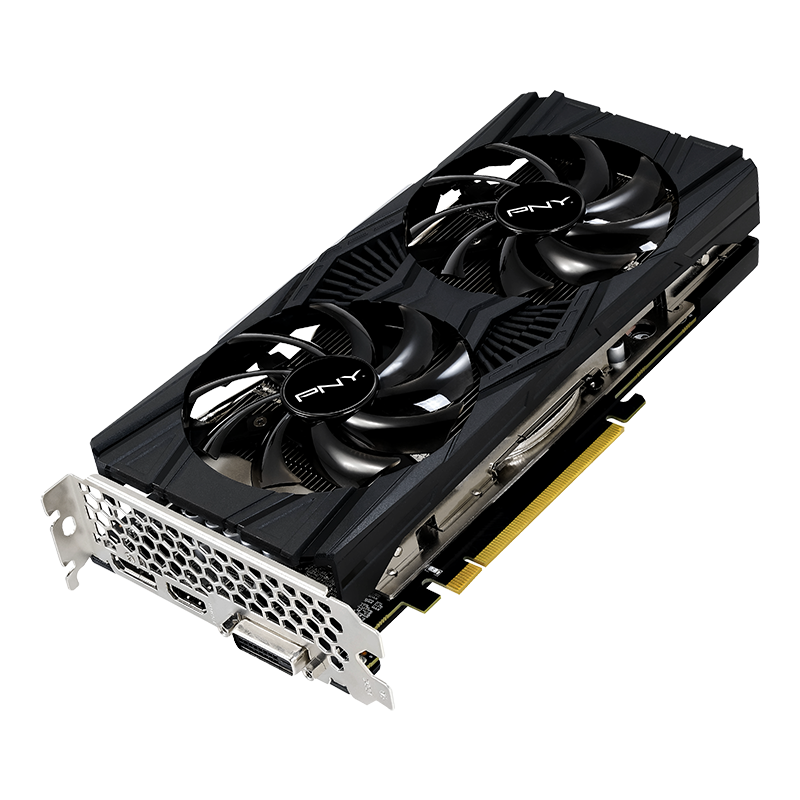

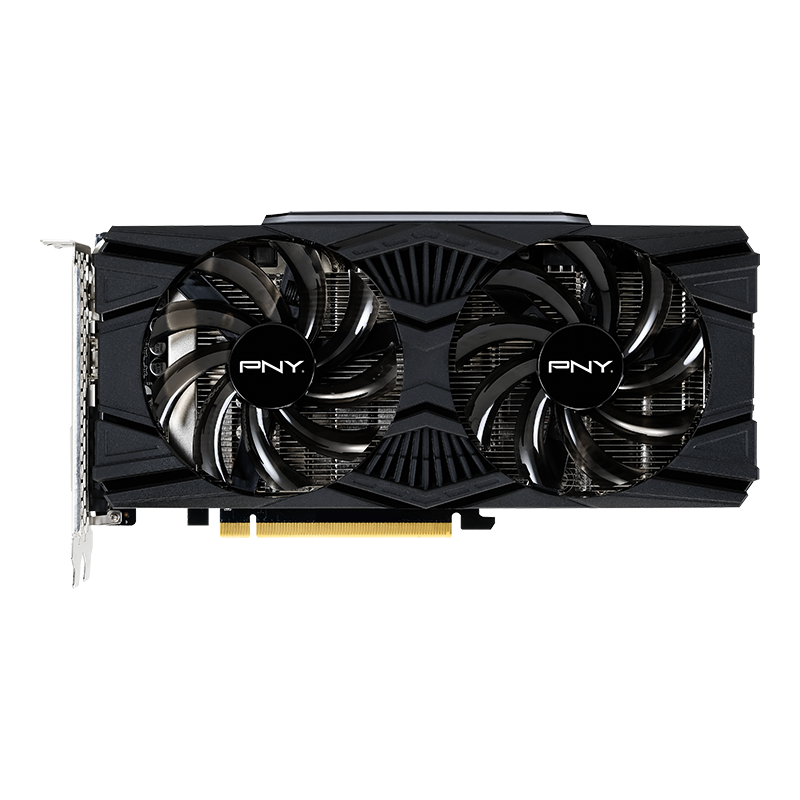

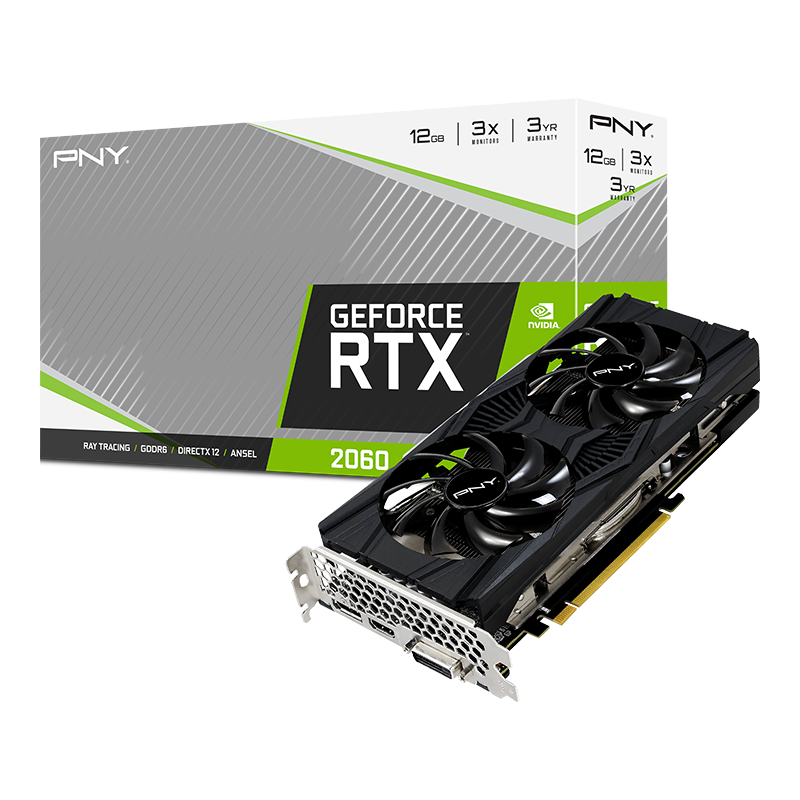

PNY GeForce RTX 2060 12GB REVEL Dual Fan

SKU: VCG206012DFPPB1

Description

PNY GeForce RTX 2060 12GB REVEL Dual Fan

Up to 6X Faster Performance

Experience 6X the performance of previous-generation graphics cards combined with maximum power efficiency.

Real-Time Ray Tracing in Games

GeForce^™ RTX^™ 2060 is light years ahead of other cards, delivering truly unique real-time ray-tracing technologies for cutting-edge, hyper-realistic graphics.

Latest AI Enhanced Graphics

Overview

The GeForce RTX 2060 is powered by the NVIDIA Turing™ architecture, bringing incredible performance and the power of real-time ray tracing and AI to the latest games and every gamer. RTX. It’s On.

GeForce RTX graphics cards are powered by the Turing GPU architecture and the all-new RTX platform. This gives you up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to your favorite games.

When it comes to next-gen gaming, it’s all about realism. GeForce RTX 2060 is light years ahead of other graphics cards.

KEY FEATURES

Real-Time Ray Tracing
NVIDIA GeForce Experience^™
NVIDIA Ansel
NVIDIA Highlights
NVIDIA G-SYNC^™ Compatible
Game Ready Drivers
Microsoft^® DirectX^® 12 API, Vulkan API, OpenGL 4.6
DisplayPort 1.4, HDMI 2.0b, DVI-D
HDCP 2.2
NVIDIA GPU Boost^™
VR Ready

MINIMUM SYSTEM REQUIREMENTS

PCI Express-compliant motherboard with one dual-width x16 graphics slot
One 8-pin supplementary power connector
500 W or greater system power supply²
1.5GB available hard-disk space
8GB system memory (16GB or higher recommended)
Microsoft Windows 10 (April 2018 Update or later), Windows 7 64-bit, Linux 64-bit
Internet connection³

Product Specifications

PNY Part Number	VCG206012DFPPB
UPC Code	751492656663
Clock Speed	1470 MHz
Boost Speed	1650 MHz
Memory Speed (Gbps)	14
Memory Size	12GB GDDR6
Memory Interface	192-bit
Memory Bandwidth (GB/sec)	336
TDP	184 W
NVLink	Not Supported

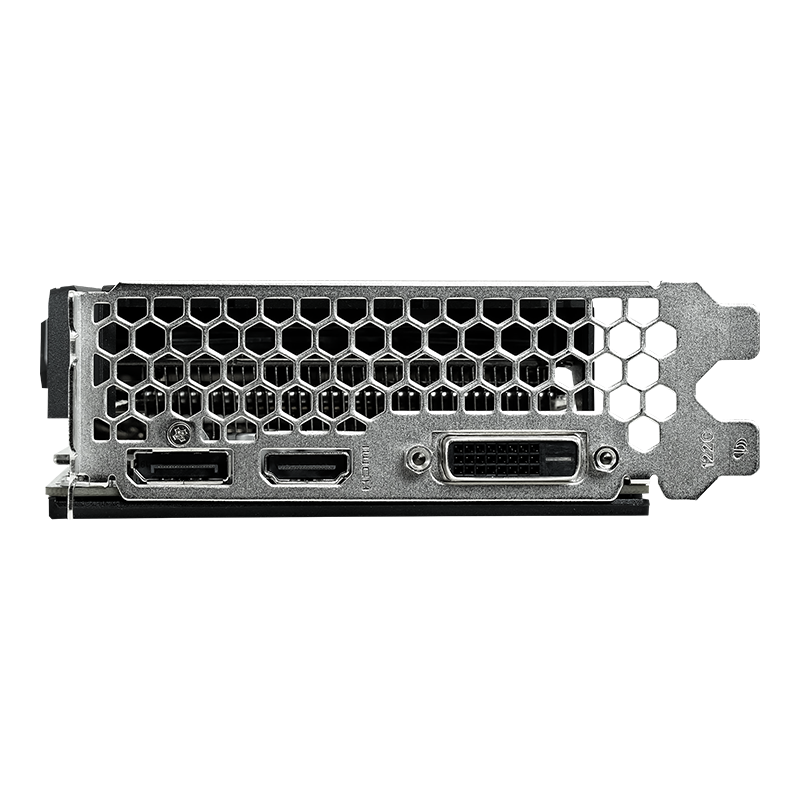

Outputs	DisplayPort 1.4, HDMI 2.0b, DVI-D
Multi-Screen	Yes
Resolution	7680 × 4320 @60Hz (Digital)¹
Power Input	One 8-Pin
Bus Type	PCI-Express 3.0 ×16
Card Dimensions	9.25" x 4.52" x 1.57"; Dual-Slot
Box Dimensions	12.63" x 3.54" x 6.69"

Warranty

3 Year

Product Resources

Resources & Downloads
Product Support & FAQs
Quick Start Guide
GeForce Experience
Resizable Bar BIOS Update

Tech Support

Have a question?
Call a Specialist or chat online.
Call 1-800-234-4597.

1. 7680 x 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 x 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.
