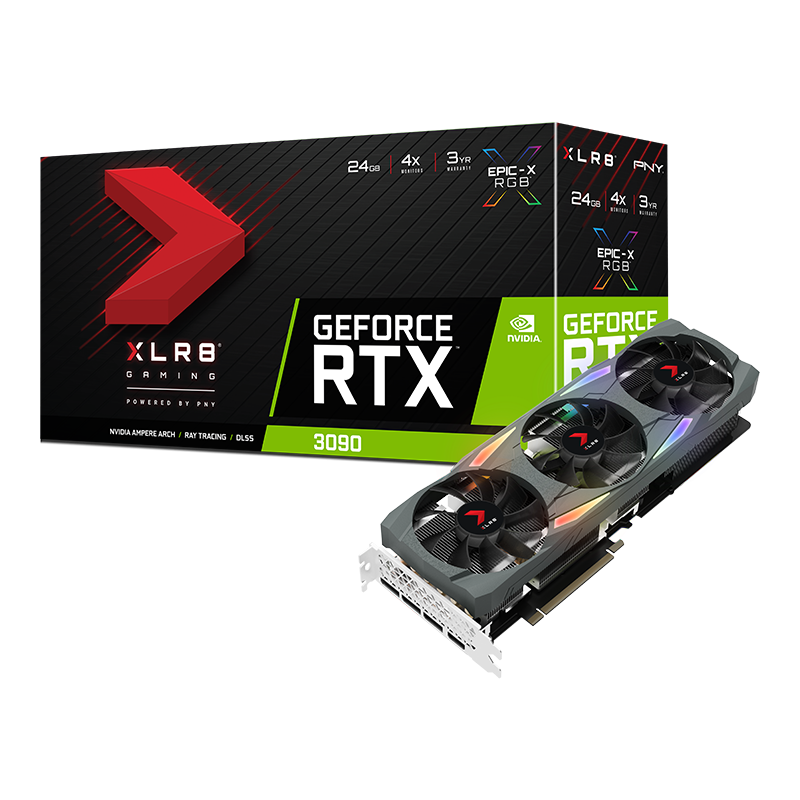

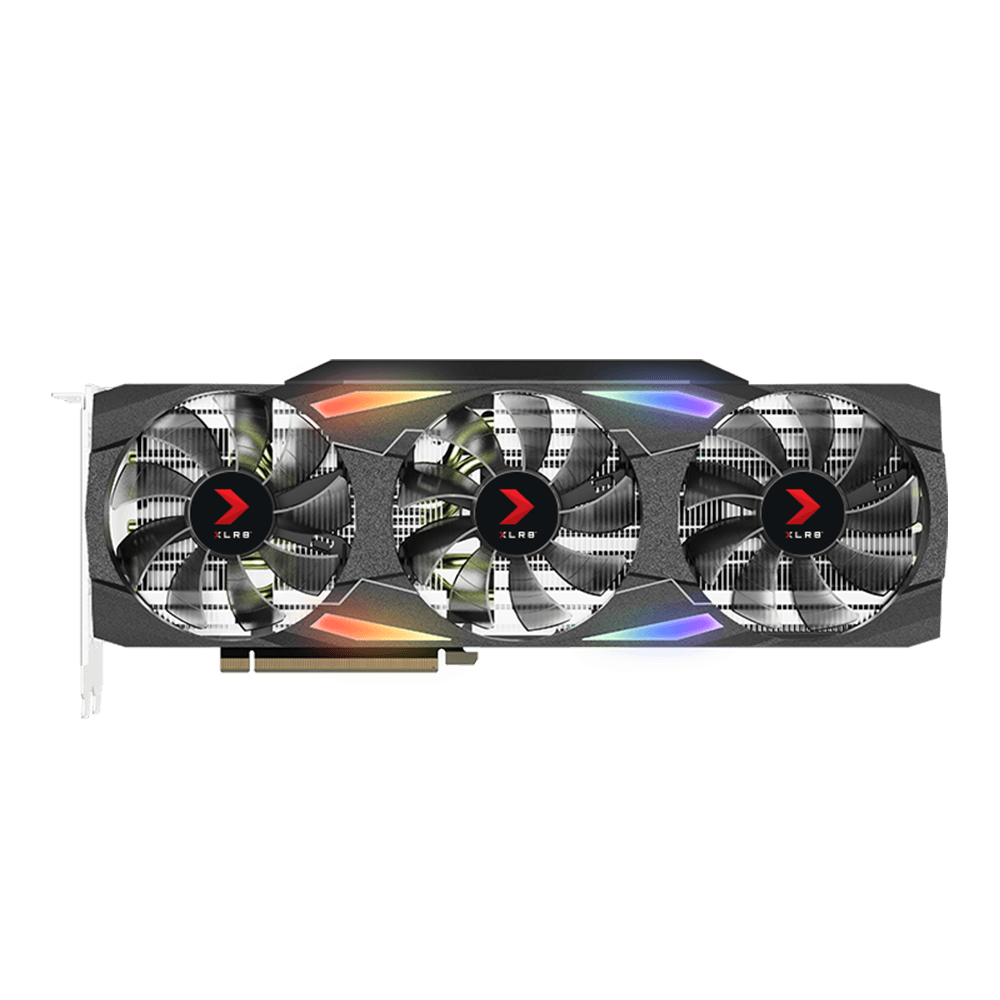

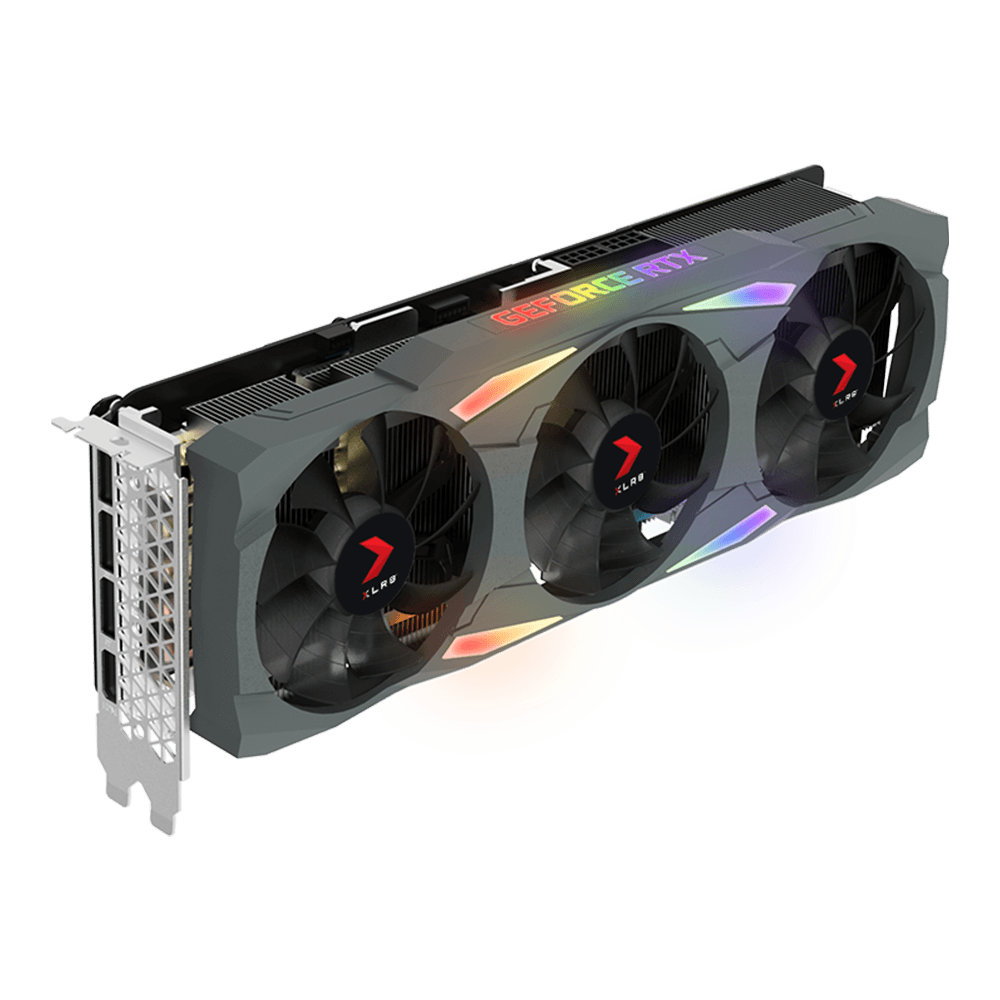

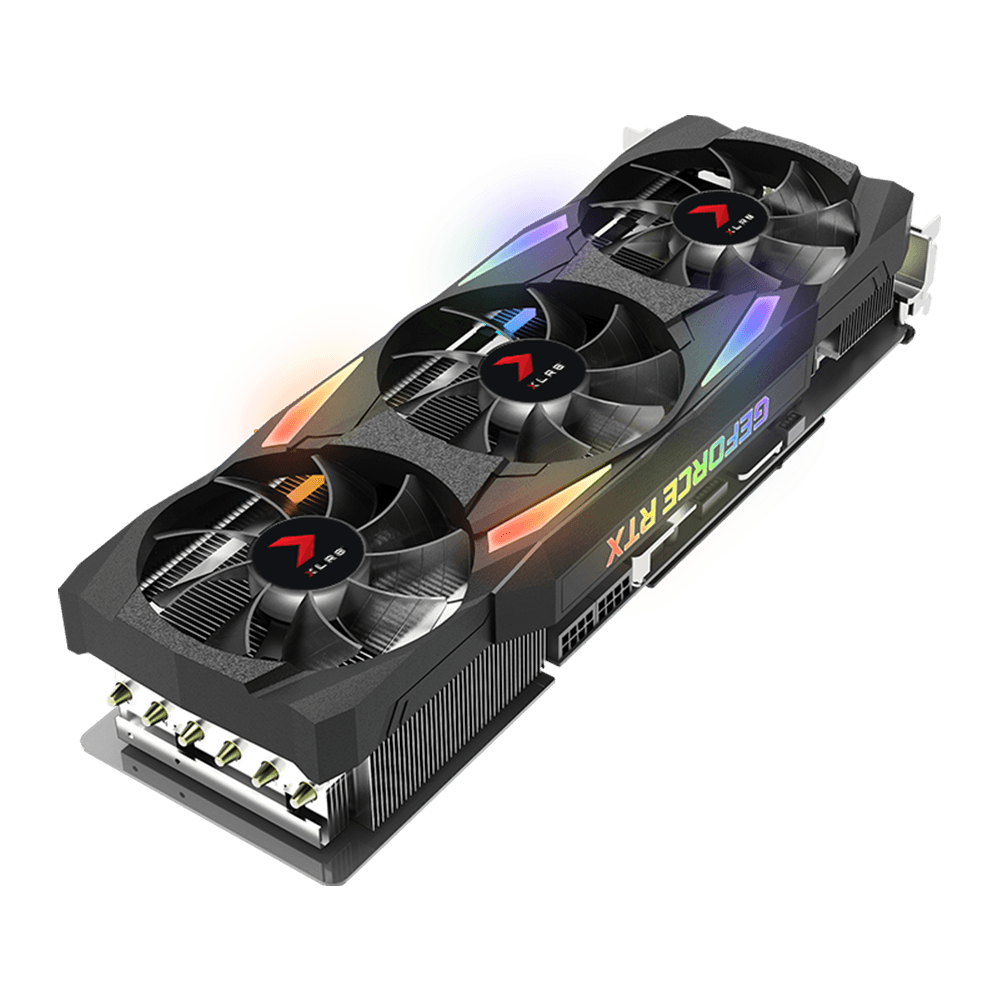

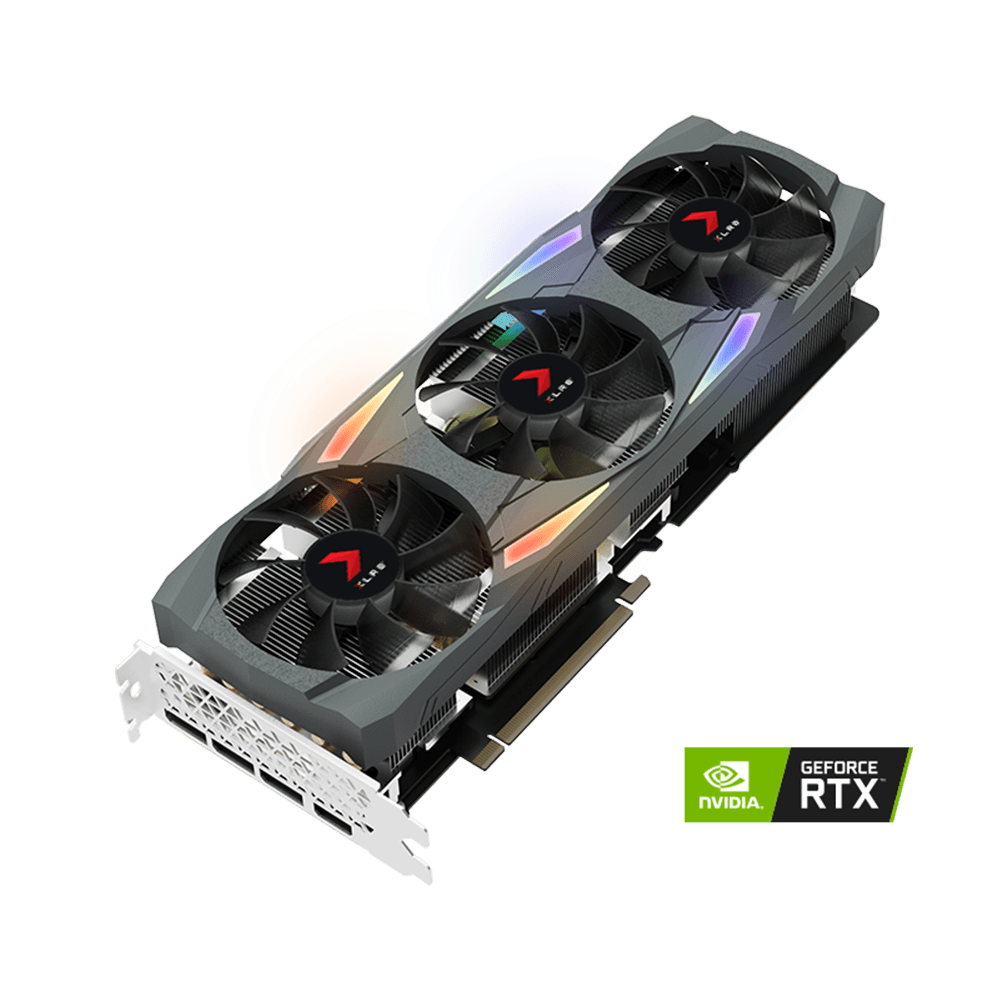

PNY GeForce RTX 3090 24GB XLR8 Gaming UPRISING EPIC-X RGB Triple Fan Edition

PNY GeForce RTX™ 3090 24GB XLR8 Gaming UPRISING EPIC-X RGB™ Triple Fan Edition

  • SKU: VCG309024TFXMPB
  • Description

    PNY GeForce RTX 3090 24GB XLR8 Gaming UPRISING EPIC-X RGB Triple Fan Edition

    NVIDIA Ampere Streaming Multiprocessors

    The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.

    2nd Generation RT Cores

    Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.

    3rd Generation Tensor Cores

    Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.


    The GeForce RTX™ 3090 is a big ferocious GPU (BFGPU) with TITAN class performance. It’s powered by Ampere—NVIDIA’s 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.

    The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators.

    GeForce RTX 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.


    • 2nd Gen Ray Tracing Cores
    • 3rd Gen Tensor Cores
    • PCI Express® Gen 4
    • Microsoft DirectX® 12 Ultimate
    • GDDR6X Graphics Memory
    • NVIDIA® GeForce Experience™
    • NVIDIA GPU Boost™
    • NVIDIA NVLink™ (SLI-Ready)
    • Game Ready Drivers
    • Vulkan RT API, OpenGL 4.6
    • HDCP 2.3
    • VR Ready
    • Supports 4k 120Hz HDR, 8K 60Hz HDR and Variable Refresh Rate as specified in HDMI 2.1


    • PCI Express-compliant motherboard with one triple-width x16 graphics slot
    • Two 8-pin supplementary power connectors
    • 750 W or greater system power supply
    • Microsoft Windows® 10 (November 2018 or later), Windows 7 64-bit, Linux 64-bit
    • Internet connection1
    Product Specifications
    PNY Part Number VCG309024TFXMPB
    UPC Code 751492639536
    CUDA Cores 10496
    Clock Speed 1395 MHz
    Boost Speed 1695 MHz
    Memory Speed (Gbps) 19.5
    Memory Size 24GB GDDR6X
    Memory Interface 384-bit
    Memory Bandwidth (GB/sec) 936
    TDP 350 W
    NVLink Supported
    Outputs DisplayPort 1.4 (x3), HDMI 2.1
    Multi-Screen 4
    Resolution 7680 × 4320 @60Hz (Digital)
    Power Input Two 8-Pin
    Bus Type PCI-Express 4.0 ×16
    Card Dimensions 12.48" x 4.53" x 2.36"; 3-Slot
    Box Dimensions 7.48" x 14.96" x 3.54"

    Click the icon below for UPRISING Overclocking Software Tool:



    3 Year

    Tech Support

    Have a question?
    Call a Specialist or chat online.
    Call 1-800-234-4597.

    1. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.
