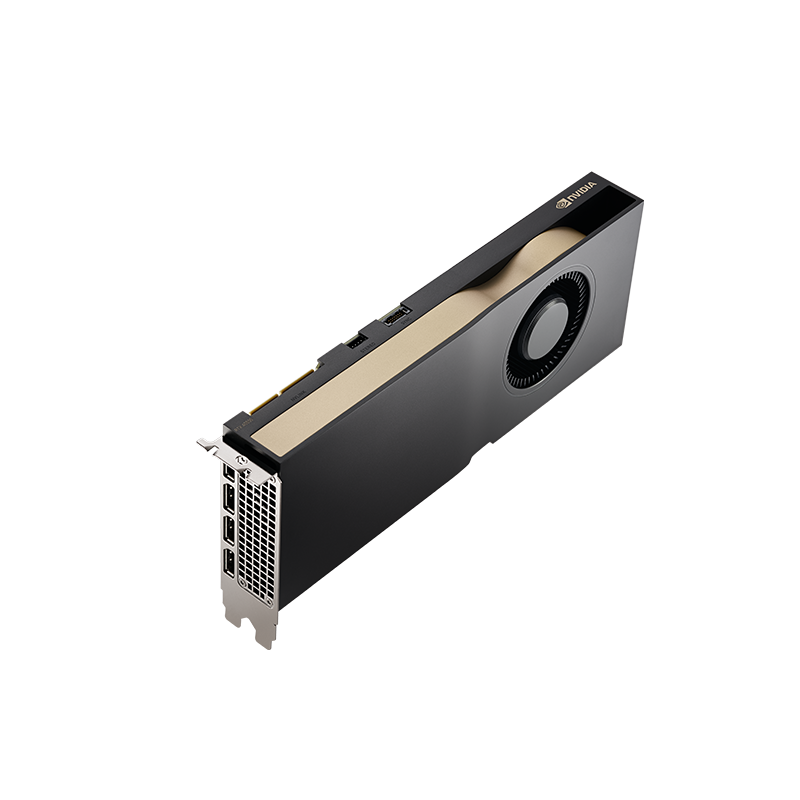

  • NVIDIA RTX A5500 HW Sync Top Left

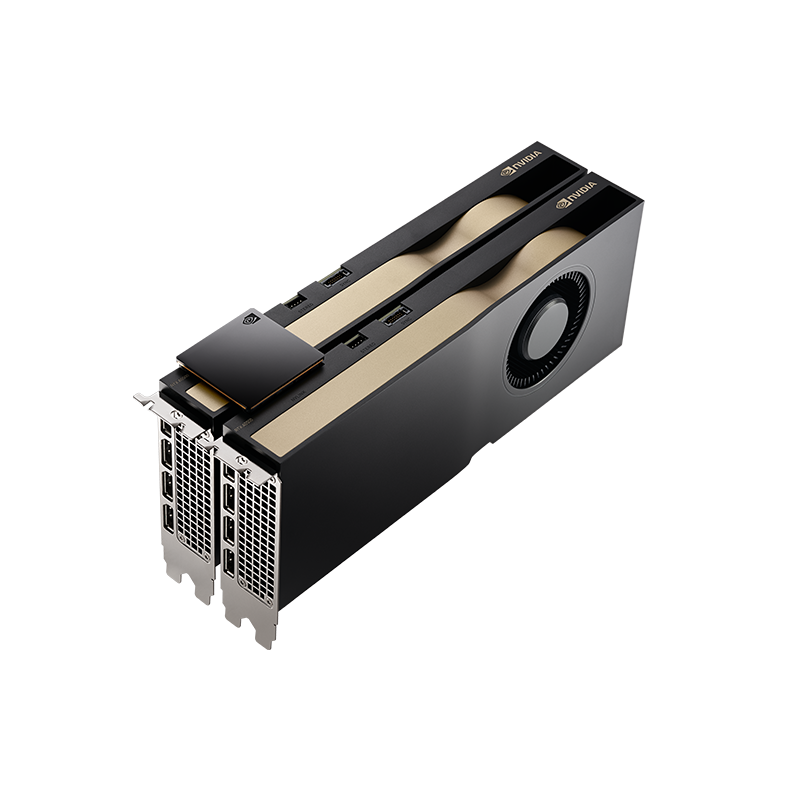

  • NVIDIA RTX A5500 HW Sync NV Link Top Left Angle

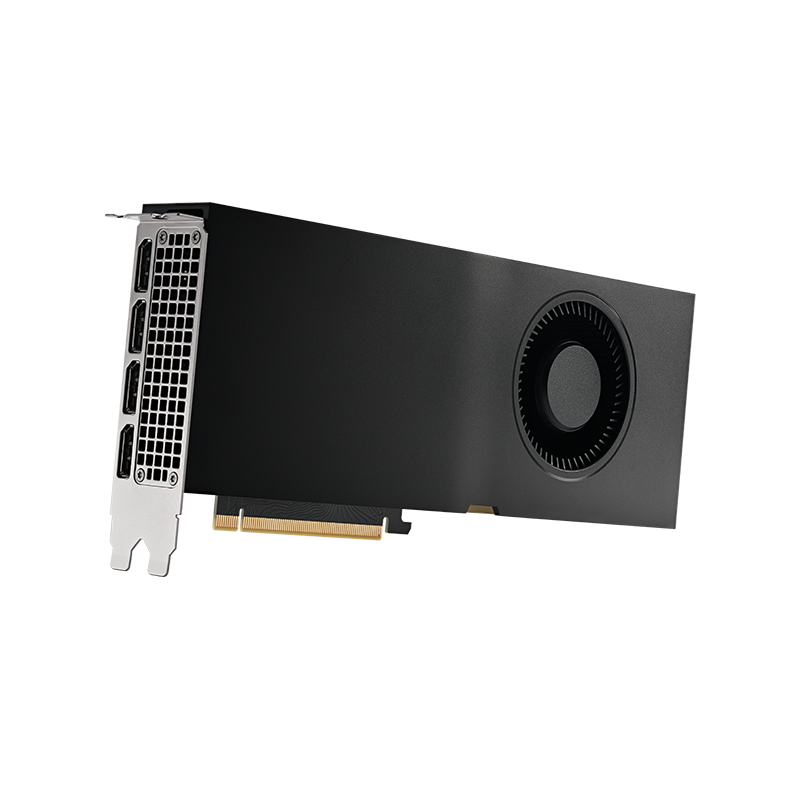

  • NVIDIA RTX A5500 HW Sync Three Quarter Left Angle

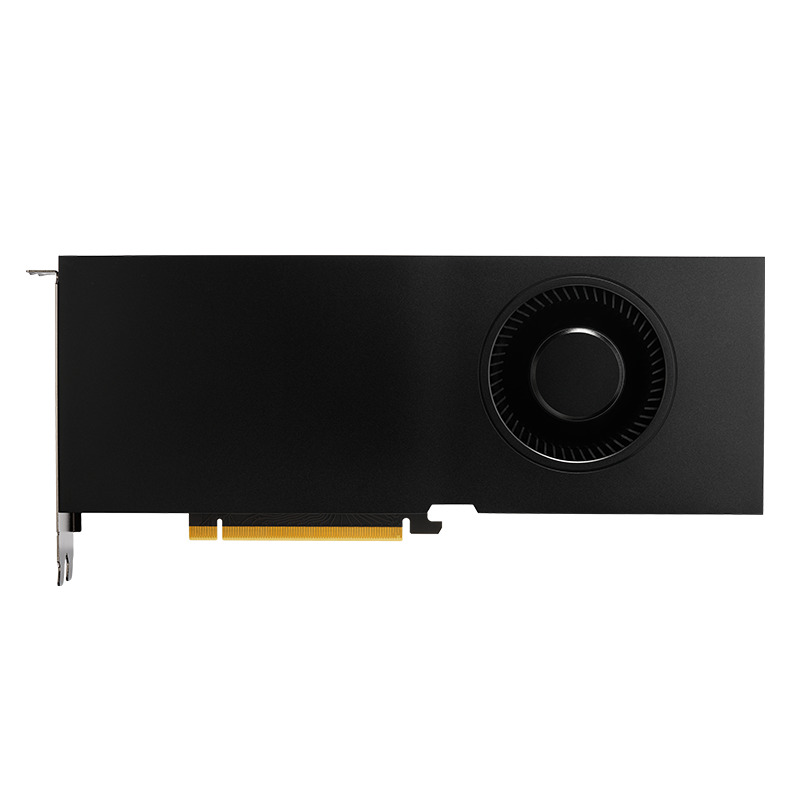

  • NVIDIA RTX A5500 HW Sync Front Angle
  • NVIDIA RTX A5500 HW Sync Left Angle

NVIDIA RTX A5500 + HW Sync

NVIDIA RTX™ A5500 + HW Sync

  • Description

    NVIDIA RTX A5500 + HW Sync

    NVIDIA Ampere
    Performance Amplified, Unprecedented Visualization

    The world of professional visualization is evolving rapidly. Advanced requirements like real-time ray tracing, AI, compute, engineering simulation, and immersive VR are common across industries, while millions of professionals have shifted to working from home. The NVIDIA RTX A5500 delivers everything designers, engineers, and artists need to meet today's demands from their desktop.

    Built on the NVIDIA Ampere architecture, the RTX A5500 combines 80 second-generation RT Cores, 320 third-generation Tensor Cores, and 10240 CUDA Cores with 24GB of graphics memory for outstanding rendering, AI, graphics, and compute performance. Connect two RTX A5500s with NVIDIA NVLink for 48GB of combined GPU memory. And access the power of your RTX workstation from anywhere with remote-access software. Engineer amazing products, design state-of-the art buildings, drive scientific breakthroughs, and create immersive entertainment with this powerful graphics solution.

    The NVIDIA Quadro Sync II board works with the RTX A5500 to synchronize up to 4 RTX A5500 boards per card for 16 synchronized displays per Sync II, and with two Sync II cards per system up to 8 RTX A5500 GPUs per chassis, for a total of 32 synchronized displays per system. The NVIDIA Quadro Sync II, combined with NVIDIA Quadro RTX A5500 powered graphics, sets an unprecedented standard for professional synchronized display deployments requiring unparalleled rendering and synchronized graphics performance, all with breakthrough possibilities real-time ray tracing and AI can provide.

    NVIDIA RTX a6000

    Performance Highlights

    CUDA Cores


    Tensor Cores


    RT Cores


    Single Precision FP32 Performance

    34.1 TFLOPS

    RT Core Performance

    66.6 TFLOPS

    Tensor Performance

    272.8 TFLOPS

    GPU Memory

    48 GB GDDR6 with ECC

    Memory Interface


    Memory Bandwidth

    768 GB/s

    System Interface

    PCI Express 4.0 x16

    Display Connectors

    4x DisplayPort 1.4a

    Maximum Power Consumption

    230 W

    Synchronized Displays per Quadro Sync II

    16 | 32 with 2x Quadro Sync II

    Quadro Sync II Boards Per System

    2x (up to 32 HW synchronized displays)

    Quadro Sync II Connectors

    2x RJ45 (Frame Lock + BNC (Genlock)

    NVIDIA RTX A5500 + HW Sync Use Cases

    Digital Signage Solutions

    • Create massive visualization solutions consisting of large numbers of synchronized displays or projectors.
    • Use multiple systems with synchronized display outputs to create massive visualization clusters.

    Manufacturing Solutions

    • Designers can create sophisticated visualization systems for collaborative design, design reviews, and retail locations.
    • Real-time ray tracing with an AI assist rendering performance opens new vistas in interactive photorealistic design across manufacturing workflows.

    Media and Entertainment Solutions

    • Broadcasters can synchronize graphics and video for broadcast solutions, virtual sets and on-air graphics.
    • Create scalable, manageable, and versatile visualization solutions for entertainment outlets or sporting and live events with hardware-synchronized monitors or projectors for artifact-free displays.

    AECO Solutions

    • Use multiple projectors or monitors to review design concepts or changes at scale.
    • Fuse design, BIM and visualization into a unified workflow environment, enhanced with real-time ray tracing and AI.

    Visual Simulation Solutions

    • Create flight, mission, training or other simulations that circle the globe seamlessly without limitations to altitude, setting, or detail.
    • Connect multiple displays or projectors to realize a 360-degree field of view.
    • NVIDIA Quadro Sync II connects multiple RTX A5500 boards and systems for category-defining multi-display or multi-projector simulation environments, all with NVIDIA RTX real-time rendering and AI-enhanced capabilities and performance.
    PNY Pro Logo

    Contact for additional information.

  • Features

    NVIDIA RTX A5500 + HW Sync


    NVIDIA Ampere Architecture

    RTX A5500 is a powerful workstation NVIDIA GPU offering high-performance real-time ray tracing, AI-accelerated compute, and professional graphics rendering. Building upon the major SM enhancements from the Turing GPU, the NVIDIA Ampere architecture enhances ray tracing operations, tensor matrix operations, and concurrent executions of FP32 and INT32 operations.

    CUDA Cores

    The NVIDIA Ampere architecture's CUDA cores bring up to 2x the single-precision floating point (FP32) throughput compared to the previous generation, providing significant performance improvements for graphics workflows such as 3D model development and compute for workloads such as desktop simulation for computer-aided engineering (CAE). The RTX A5500 enables two FP32 primary data paths, doubling the peak FP32 operations.

    Second-Generation RT Cores

    Third-generation RT Cores provide up to 2X the throughput of the previous generation and the ability to run ray tracing with either shading or denoising capabilities concurrently. This accelerates renders for M&E content creation, AECO design evaluations, and manufacturing virtual prototyping. Third-generation RT Cores deliver up to 2X the ray-tracing performance over the previous generation, delivering groundbreaking performance for photorealistic rendering. Enhanced RT Cores combined with new SER technology dynamically reorder inefficient workloads, dramatically improving shader performance to accelerate end-to-end ray-traced image rendering performance.

    Third-Generation Tensor Cores

    Purpose-built for deep learning matrix arithmetic at the heart of neural network training and inferencing functions, the RTX A5500 includes enhanced Tensor Cores that accelerate more datatypes and includes a new Fine-Grained Structured Sparsity feature that delivers up to 2x throughput for tensor matrix operations compared to the previous generation. New Tensor Cores will accelerate two new TF32 and BFloat16 precision modes. Independent floating-point and integer data paths allow more efficient execution of workloads using a mix of computation and addressing calculations.

    PCIe Gen 4

    The RTX A5500 supports PCI Express Gen 4, which provides double the bandwidth of PCIe Gen 3, improving data-transfer speeds from CPU memory for data-intensive tasks like AI and data science.

    Higher Speed GDDR6 Memory

    Built with 48GB GDDR6 memory, the RTX A5500 delivers 15% greater throughput for ray tracing, rendering, and AI workloads than the previous generation. The RTX A5500 provides a 24GB memory footprint to address large datasets and models in latency-sensitive professional applications.

    Error Correcting Code (ECC) on Graphics Memory

    Meet strict data integrity requirements for mission-critical applications with uncompromised computing accuracy and reliability for workstations.

    Fifth-Generation NVDEC Engine

    NVDEC is well suited for transcoding and video playback applications for real-time decoding. The following video codecs are supported for hardware-accelerated decoding: MPEG-2, VC-1, H.264 (AVCHD), H.265 (HEVC), VP8, VP9, and AV1.

    Seventh-Generation NVENC Engine

    NVENC can take on the most demanding 4K or 8K video encoding tasks to free up the graphics engine and the CPU for other operations. The RTX A5500 provides better encoding quality than software-based x264 encoders.

    Graphics Preemption

    Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.

    Compute Preemption

    Preemption at the instruction level provides finer-grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.


    Accelerating GPU-based lossless decompression performance by up to 100x and 20x lower CPU utilization compared to traditional storage APIs using Microsoft's new DirectStorage for Windows API. RTX IO moves data from the storage to the GPU in a more efficient, compressed form, and improving I/O performance.


    NVIDIA Quadro Mosaic Technology

    Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

    DisplayPort 1.4a

    Support up to four 5K monitors AT 60Hz, or dual 8K displays AT 60Hz per card. The RTX A5500 supports HDR color for 4K AT 60Hz for 10/12b HEVC decode and up to 4K AT 60Hz for 10b HEVC encode. Each DisplayPort connector can drive ultra-high resolutions of 4096 x 2160 AT 120 Hz with 30-bit color.

    NVIDIA RTX Desktop Software

    Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments.

    Included NVIDIA Quadro Sync II

    Synchronize the display and image output of up to 32 displays from 8 GPUs (connected through two Sync II boards) in a single system, reducing the number of machines needed to create an advanced video visualization environment.

    Frame Lock Connector Latch

    Each frame lock connector is designed with a self-locking retention mechanism to secure its connection with the frame lock cable to provide robust connectivity and maximum productivity.

    OpenGL Quad Buffered Stereo Support

    Provide a smooth and immersive 3D Stereo experience for professional applications.

    Ultra-High-Resolution Desktop Support

    Get more Mosaic topology choices with high-resolution display devices with a 32K Max desktop size.

    Professional 3D Stereo Synchronization

    Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to an NVIDIA RTX graphics card.


    Third-Generation NVLink

    Connect two RTX A5500 cards with NVLink to double the effective memory footprint and scale application performance by enabling GPU-to-GPU data transfers at rates up to 112.5 GB/s (total bandwidth).

    NVIDIA SLI Technology

    Leverage multiple GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system.


    NVIDIA RTX Experience

    NVIDIA RTX Experience delivers a suite of productivity tools to your desktop workstation, including 4K recording, automatic alerts for the latest Quadro driver updates, and access gaming features. The application is available to download at

    Software Optimized for AI

    Deep learning frameworks such as Caffe2, MXNet, CNTK, TensorFlow, and others deliver dramatically faster training times and higher multi-node training performance. GPU-accelerated libraries such as cuDNN, cuBLAS, and TensorRT delivers higher performance for both deep learning inference and High- Performance Computing (HPC) applications.

    NVIDIA CUDA Parallel Computing Platform

    Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics.

    Unified Memory

    A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.

    NVIDIA GPUDirect for Video

    GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.

    NVIDIA Enterprise-Management Tools

    Maximize system uptime, seamlessly manage wide-scale deployments, and remotely control graphics and display settings for efficient operations.

  • Specifications



    Performance Highlights



    Process Size



    28.3 Billion

    Die Size


    CUDA Cores


    RT Cores


    Tensor Cores


    Single Precision (FP32) Performance

    34.1 TFLOPS

    RT Core Performance

    66.6 TFLOPS

    Tensor Core Performance

    272.8 TFLOPS

    GPU Memory

    24GB GDDR6 with ECC

    Memory Interface


    Memory Bandwidth

    768 GB/Sec

    Display Connectors

    DisplayPort 1.4a (4)


    1x | 2x (+ AV1 decode)

    Max Power Consumption


    Graphics Bus

    PCI Express 4.0 x16

    Display Connectors

    DP 1.4a (4)3

    System Interface

    PCI Express 4.0 x16

    Form Factor

    4.4" H x 10.5" L Dual Slot

    Thermal Solution

    Active Fansink

    Maximum Power Consumption

    NVIDIA Power Guidelines

    Max Digital Resolution

    7 680 x 4320 x36 bpp at 60 Hz
    Quadro and NVS Display Resolution Support

    vGPU Software Support

    NVIDIA vPC (vPC), NVIDIA Virtual Applications (vApps), and NVIDIA RTX Virtual Workstation (vWS)

    vGPU Profiles Supported

    See vGPU Pricing and Licensing Guide

    NVIDIA 3D Vision and 3D Vision Pro

    Support via 3-pin mini-DIN

    Frame Lock

    Compatible with NVIDIA Quadro Sync II


    2-way low profile (2-slot and 3-slot) bridges connect 2x NVIDIA RTX A5500

    NVLink Bandwidth

    112.5 GB/s bidirectional

    Quadro Sync II Connectors

    2x RJ45 Frame Lock + BNC Genlock

    Status LEDs on Bracket

    Displays Quadro Sync II status at a glance


    • RTXA6000NVLINK-KIT Provides an NVLink connector for the RTX A5500 (or RTX A6000, RTX A5000, or RTX A4500) suitable for standard PCIe slot spacing motherboards, effectively fusing two physical boards into one logical entity with 20480 CUDA Cores, 672 Tensor Cores, 168 RT Cores, and 48GB of GDDR6 ECC memory, with a bandwidth of 112.5 GB/s. Order PN RTXA6000NVLINK-KIT when ultimate performance and capabilities are required with two RTX A5500 boards (application support required).
    • RTXA6000NVLINK-3S-KIT Offers an NVLink connector for the RTX A5500 (or RTX A6000, RTX 5000 or RTX A4500) compatible with motherboards featuring wider PCIe slot spacing. All other features and benefits are identical to the standard slot spacing version.
    • DP-HDMI-THREE-PCK Connect the NVIDIA Quadro RTX 8000 to HDMI displays at resolutions up to 4K with PNY Part Number DP-HDMI-THREE-PCK. The three included DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
    • DP-HDMI-SINGLE-PCK Connect the NVIDIA Quadro RTX 8000 to an HDMI display at resolutions up to 4K with PNY Part Number DP-HDMI-SINGLE-PCK. The included DisplayPort to HDMI adapter is recommended by NVIDIA, provides outstanding image quality, and is built to professional standards.


    • Intel Core i5, i7, i9, or Xeon processor or later
    • AMD Ryzen or EPYC class processor or later
    • PCI Express 4.0 x16 (preferred) expansion slot
    • System memory greater than or equal to GPU memory, twice the GPU memory recommended
    • Internet connection for driver installation
    • DisplayPort 1.4a (preferred), HDMII, or DVI display(s)


    • Microsoft Windows 11 (64-bit)
    • Microsoft Windows 10 (64-bit)
    • Red Hat Enterprise Linux 7.x
    • SUSE Linus Enterprise Desktop 15.x
    • OpenSuse 15
    • Fedora 31
    • Ubuntu 18.04
    • FreeBSD 11.x
    • Solaris 11


    • NVIDIA RTX A5500 professional graphics card
    • Auxiliary power cable
    • NVIDIA Quadro Sync II board
    • Four 12" (30.5 cm) Sync to GPU or Sync-to-Sync connector cables
    • Two 24" (61 cm) Sync to GPU or Sync to Sync connector cables
