GeForce GTX 1060 3GB

SKU: VCGGTX10603PB-SF

Description

GEFORCE GTX 1060 3GB

Performance

Ultra-fast FinFET and DirectX12 support to deliver the most powerful gaming experiences.

NVIDIA Pascal

VR Ready

Plug-and-play compatibility with leading headsets—driven by NVIDIA VRWorks™ technologies.

Velocity X Software Support

Maximize your GPU performance through real time monitoring, custom overclocking and total fan control.

Overview

10: GAMING PERFECTED

The PNY GeForce GTX 1060 graphics card is loaded with innovative new gaming technologies, making it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™ – the most advanced GPU architecture ever created – the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond.

This advanced graphics card is created with ultra-fast FinFET technology and supports DirectX 12 features to deliver fast, smooth, power-efficient gaming experiences. Boost performance by up to 3X in the high-definition and immersive VR Ready games compared to the previous generation GPUs. Bring more realism to every game with NVIDIA GameWorks™ technologies that offer a true cinematic experience-every time.

KEY FEATURES

Simultaneous Multi-Projection
VR Ready
NVIDIA Ansel Support
NVIDIA G-SYNC™
NVIDIA GameStream™
NVIDIA GPU Boost™ 3.0
Microsoft® DirectX® 12 Support
Vulkan API Support
Open GL 4.5 Support
PCI Express 3.0
Max Digital Resolution - 7680x4320 @ 60Hz

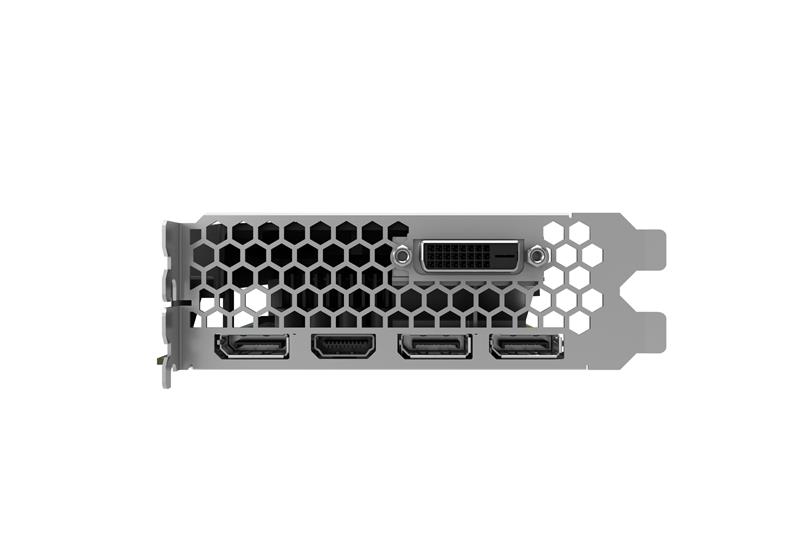

Display Connectors
- 3x DisplayPort 1.4
- HDMI 2.0b
- DL-DVI

MINIMUM SYSTEM REQUIREMENTS

PCI Express-compliant motherboard with one double-width ×16 graphics slot
One 6-pin PCI Express supplementary power connector
Minimum 400 W or greater system power supply
300MB of available hard-disk space
2 GB system memory (4GB or higher recommended)
Microsoft Windows 10, Windows 8, Windows 7, Linux, FreeBSDx86
DVD-ROM drive and Internet connection

Product Specifications

CUDA Cores	1152
Core Speed	1506 MHz
Boost Clock	1708 MHZ
Memory Clock	8 GBPS
Memory Amount	3GB GDDR5
Memory Interface	192-bit
Memory Bandwidth	192GBPS
TDP	120W
SLI	Not Supported
Multi-Screen	Yes
Max Resolution	7680 × 4320 @60Hz (Digital)
Power Input	One 6-PIN
Bus Type	PCI-Express 3.0 x 16
Card Dimensions	9.85" x 4.37"
Width	Dual Slot
Box Dimensions	14.68" x 3.78" x 8.35"
Virtual Reality Ready	Yes

Warranty

3 Year

Resources / Downloads

Product Brochure
Quick Start Guide
GeForce Experience

Tech Support

Have a question?
Call a Specialist or chat online.
Call 1-800-234-4597.

1. 7680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 × 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

4. In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the VirtualLink Advance Overview.

5. Advertised TDP does not include the additional up to 35 watts required when Type-C port is in use. TDP increases by up to 35 watts when Type-C port is being utilized for VirtualLink™.
