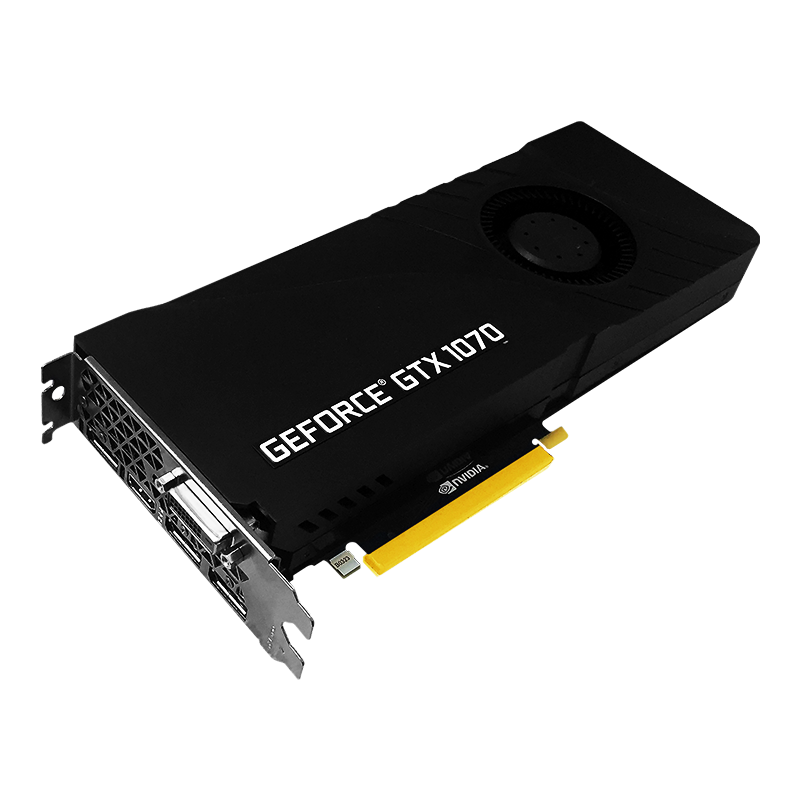

GeForce GTX 1070 8GB

SKU: VCGGTX10708PB

Description

GEFORCE GTX 1070 8GB

Performance

Ultra-fast FinFET and DirectX12 support to deliver the most powerful gaming experiences.

NVIDIA Pascal

VR Ready

Plug-and-play compatibility with leading headsets—driven by NVIDIA VRWorks™ technologies.

Velocity X Software Support

Maximize your GPU performance through real time monitoring, custom overclocking and total fan control.

Overview

GAMING PERFECTED

Take on today’s challenging, graphics-intensive games without missing a beat. The PNY GeForce® GTX 1070 graphics card delivers the incredible speed and power of NVIDIA Pascal™ — the most advanced GPU ever created — for truly revolutionary gaming and VR performance.

This advanced graphics card is created with ultra-fast FinFET technology and supports DirectX 12 features to deliver fast, smooth, power-efficient gaming experiences. Plus, it balances sleek angles and thermals for a cooler design — both inside and out.

Get up to 3X faster performance in AAA and immersive VR Ready games than with previous-generation GPUs. And bring more realism to every game with NVIDIA GameWorks™ technologies that offer a true cinematic experience and amazing new image-capture to share your game.

KEY FEATURES

Simultaneous Multi-Projection
VR Ready
NVIDIA Ansel Support
NVIDIA SLI® w/ HB Bridge Support
NVIDIA G-SYNC™
NVIDIA GameStream™
NVIDIA GPU Boost™ 3.0
Microsoft® DirectX® 12 Support
Vulkan API Support
Open GL 4.5 Support
PCI Express 3.0
Max Digital Resolution - 7680x4320@60Hz1

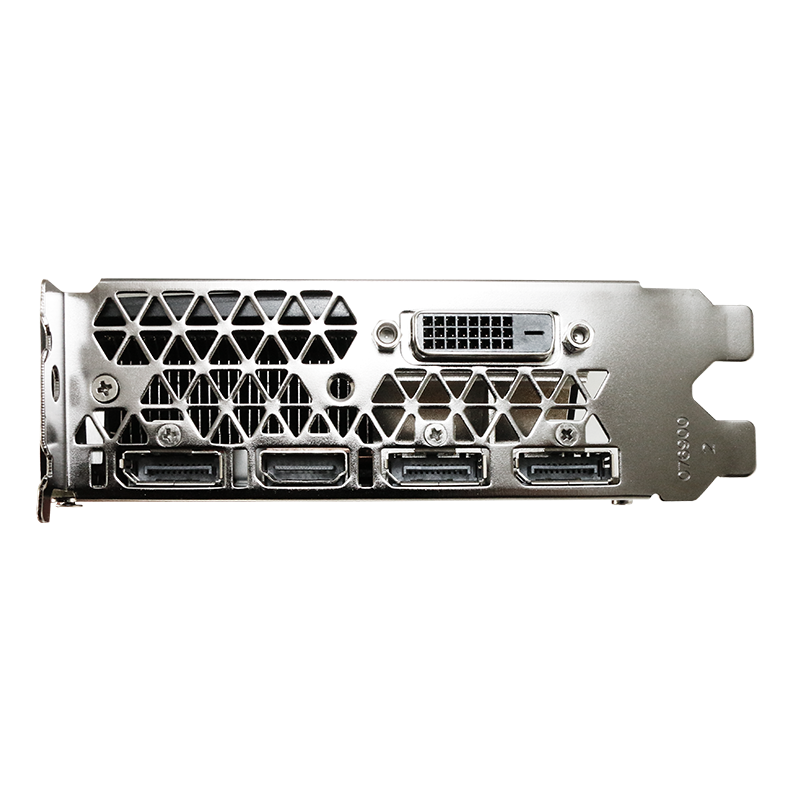

Display Connectors
- 3x DisplayPort 1.4
- HDMI 2.0b
- DL-DVI

MINIMUM SYSTEM REQUIREMENTS

PCI Express-compliant motherboard with one double-width ×16 graphics slot
One 8-pin PCI Express supplementary power connector
Minimum 500 W or greater system power supply2
300MB of available hard-disk space
2GB system memory (4GB or higher recommended)
Windows 7-10, Linux, FreeBSDx86
DVD-ROM drive and Internet connection3

Product Specifications

CUDA Cores	1920
Core Speed	1506 MHz
Boost Clock	1683 MHZ
Memory Clock	8 GBPS
Memory Amount	8GB GDDR5
Memory Interface	256-BIT
Memory Bandwidth	256 GBPs
TDP	150W
SLI	SLI HB Bridge Supported
Multi-Screen	Yes
Max Resolution	7680 × 4320 @60Hz (Digital)
Power Input	One 8-PIN
Bus Type	PCI-Express 3.0 x 16
Card Dimensions	11.02" x 4.96" x 1.49"
Width	Dual Slot
Box Dimensions	15.5" x 7.7" x 3.8"
Virtual Reality Ready	Yes

Warranty

3 Year

Resources / Downloads

Product Brochure
Quick Start Guide
GeForce Experience

Tech Support

Have a question?
Call a Specialist or chat online.
Call 1-800-234-4597.

1. 7680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 × 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

4. In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the VirtualLink Advance Overview.

5. Advertised TDP does not include the additional up to 35 watts required when Type-C port is in use. TDP increases by up to 35 watts when Type-C port is being utilized for VirtualLink™.
