GeForce GTX 1070Ti

NVIDIA® GeForce® GTX 1070 Ti

  • SKU: VCGGTX1070T8PB

NVIDIA® GeForce® GTX 1070 Ti

  • Description

    GEFORCE GTX 1070 TI

    GeForce Experience™

    Automatically update your drivers. Optimize settings. Capture and share videos, screenshots, and livestreams. Even win rewards.

    NVIDIA ShadowPlay™

    Record and share your greatest gaming moments. Easily record gameplay, capture screenshots, and share.

    4K and HDR

    Game with High Dynamic Range for the best color contrast and realism, plus 4K for crystal-clear fidelity.

    Game Ready Drivers

    Get the Perfect Driver for Every Title. The ultimate gaming performance at launch, and beyond—so you’re always ready to game.

    Overview

    10: GAMING PERFECTED

    Take on today’s most challenging, graphics-intensive games without missing a beat. The GeForce GTX 1070 Ti graphics cards delivers the incredible speed and power of NVIDIA Pascal™—the most advanced gaming GPU architecture ever created. This is the ultimate gaming platform. #GameReady.

    KEY FEATURES

    • Simultaneous Multi-Projection
    • VR Ready
    • NVIDIA Ansel Support
    • NVIDIA SLI® w/ HB Bridge Support
    • NVIDIA G-SYNC™
    • NVIDIA GameStream™
    • NVIDIA GPU Boost™ 3.0
    • Microsoft® DirectX® 12 Support
    • Vulkan API Support
    • Open GL 4.5 Support
    • PCI Express 3.0
    • Max Digital Resolution - 7680x4320 @ 60Hz

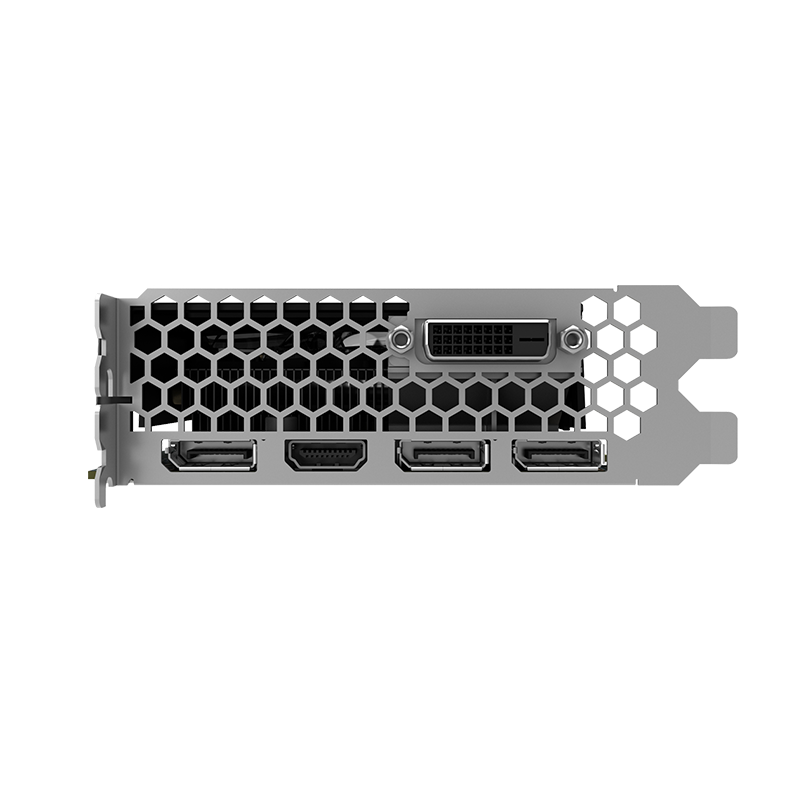

    • Display Connectors
      • 3x DisplayPort 1.4
      • HDMI 2.0b
      • DL-DVI

    MINIMUM SYSTEM REQUIREMENTS

    • PCI Express-compliant motherboard with one double-width ×16 graphics slot
    • One 8-pin PCI Express supplementary power connector
    • Minimum 500 W or greater system power supply
    • 300MB of available hard-disk space
    • 2 GB system memory (4GB or higher recommended)
    • Microsoft Windows 10, Windows 8, Windows 7, Linux, FreeBSDx86
    • DVD-ROM drive and Internet connection
    Product Specifications
    CUDA Cores 2432
    Core Speed 1607 MHz
    Boost Clock 1683 MHZ
    Memory Clock 8 GBPS
    Memory Amount 8GB GDDR5
    Memory Interface 256-BIT
    Memory Bandwidth 256 GBPs
    TDP 180W
    SLI SLI HB Bridge Supported
    Multi-Screen Yes
    Max Resolution 7680 × 4320 @60Hz (Digital)
    Power Input One 8-PIN
    Bus Type PCI-Express 3.0 x 16
    Card Dimensions 9.92" x 4.4" x 1.52"
    Width Dual Slot
    Box Dimensions 12.5" x 6.4" x 2.7"
    Virtual Reality Ready Yes

    Warranty


    3 Year

    Resources / Downloads


    Product Brochure
    Quick Start Guide
    GeForce Experience

    Tech Support


    Have a question?
    Call a Specialist or chat online.
    Call 1-800-234-4597.

    1. 7680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 × 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

    2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

    3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

    4. In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the VirtualLink Advance Overview.

    5. Advertised TDP does not include the additional up to 35 watts required when Type-C port is in use. TDP increases by up to 35 watts when Type-C port is being utilized for VirtualLink™.
