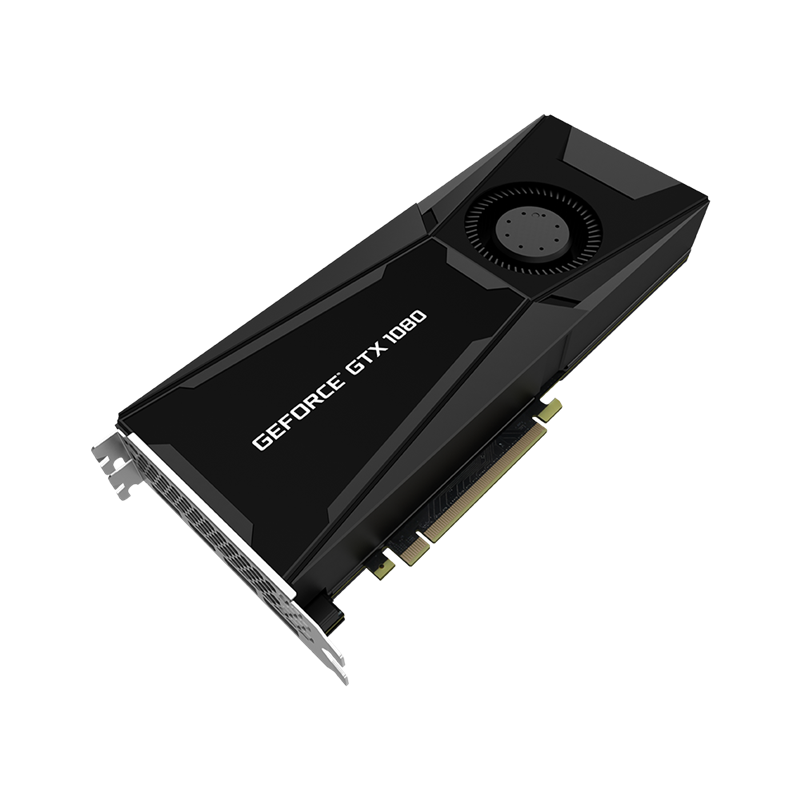

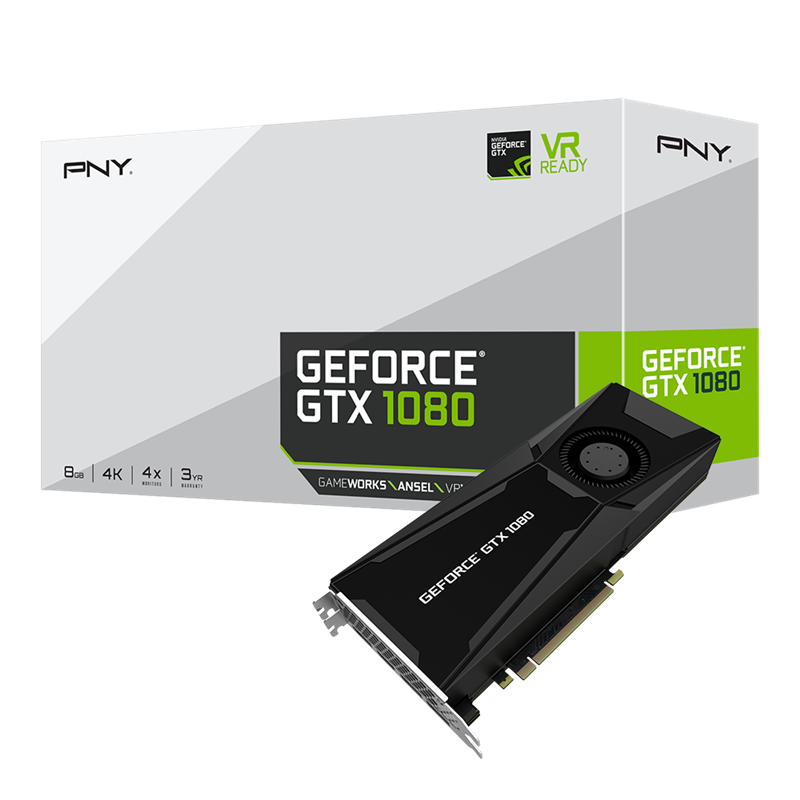

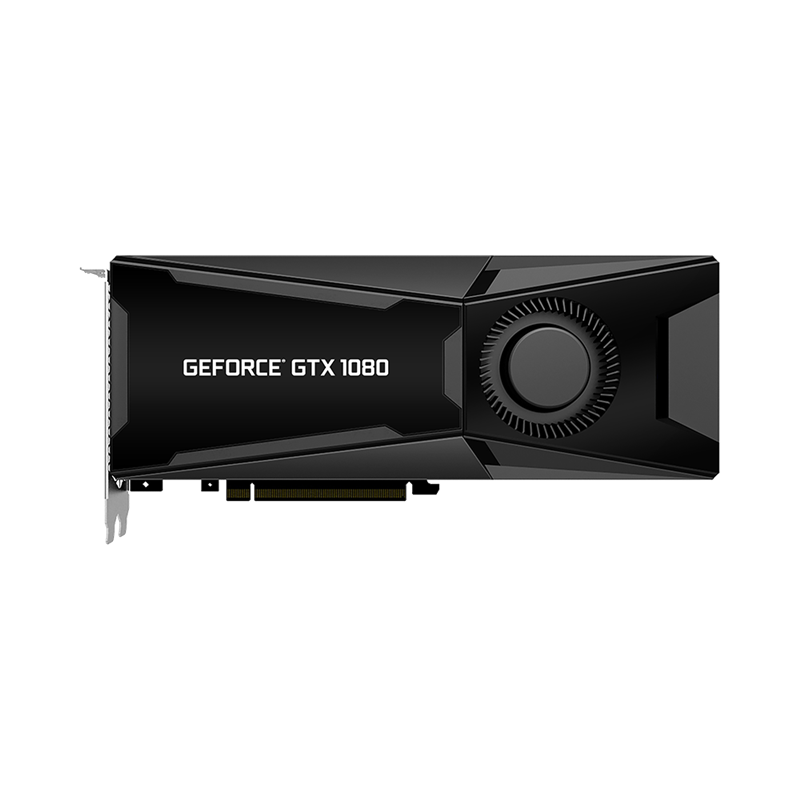

GeForce GTX 1080 8GB

SKU: VCGGTX10808PB-CG2

Description

GEFORCE GTX 1080 8GB

NVIDIA Turing™

Ultra-fast FinFET and DirectX12 support to deliver the most powerful gaming experiences.

Up to 6X Faster Performance

Real-Time RAY TRACING In Games

Plug-and-play compatibility with leading headsets—driven by NVIDIA VRWorks™ technologies.

Latest AI Enhanced Graphics

Maximize your GPU performance through real time monitoring, custom overclocking and total fan control.

Overview

GAMING PERFECTED

NVIDIA’s new flagship GeForce® GTX 1080 is the most advanced gaming GPU on the planet, driven by the high-performance, power-efficient new NVIDIA Pascal™ architecture.

The GeForce® GTX 1080 comes with ultra-fast FinFET and high-bandwidth GDDR5X technologies, plus support for DirectX 12 features to deliver the fastest, smoothest, most power-efficient gaming experiences.

Get the power to drive VR, ultra-high-resolution, and multiple monitors. Plus, bring more realism to every game with NVIDIA GameWorks™ technologies that deliver a true cinematic experience, smoother gameplay, and amazing new image-capture to share your game. All with the lowest latency and plug-and-play compatibility with leading VR headsets.

KEY FEATURES

Simultaneous Multi-Projection
VR Ready
NVIDIA Ansel Support
NVIDIA SLI® w/ HB Bridge Support
NVIDIA G-SYNC™
NVIDIA GameStream™
NVIDIA GPU Boost™ 3.0
Microsoft® DirectX® 12 Support
Vulkan API Support
Open GL 4.5 Support
PCI Express 3.0
Max Digital Resolution - 7680 × 4320 @60Hz
- 3x DisplayPort 1.4
- HDMI 2.0b
- DL-DVI

MINIMUM SYSTEM REQUIREMENTS

PCI Express-compliant motherboard with one double-width ×16 graphics slot
One 8-pin PCI Express supplementary power connector
Minimum 500 W or greater system power supply
300MB of available hard-disk space
2 GB system memory (4GB or higher recommended)
Windows 7-10, Linux, FreeBSDx86
DVD-ROM drive and Internet connection

Product Specifications

CUDA Cores	2560
Core Speed	1607 MHz
Boost Clock	1733 MHZ
Memory Clock	10 GBPS
Memory Amount	8GB GDDR5X
Memory Interface	256-BIT
Memory Bandwidth	320 GBPS
TDP	180W
SLI	SLI HB Bridge Supported
Multi-Screen	Yes
Max Resolution	7680 × 4320 @60Hz (Digital)
Power Input	One 8-PIN
Bus Type	PCI-Express 3.0 x 16
Card Dimensions	4.409" x 10.5" x 1.653"
Width	Dual Slot

Warranty

3 Year

Resources / Downloads

Product Brochure
Quick Start Guide
GeForce Experience

Tech Support

Have a question?
Call a Specialist or chat online.
Call 1-800-234-4597.

1. 7680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 × 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

4. In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the VirtualLink Advance Overview.

5. Advertised TDP does not include the additional up to 35 watts required when Type-C port is in use. TDP increases by up to 35 watts when Type-C port is being utilized for VirtualLink™.
