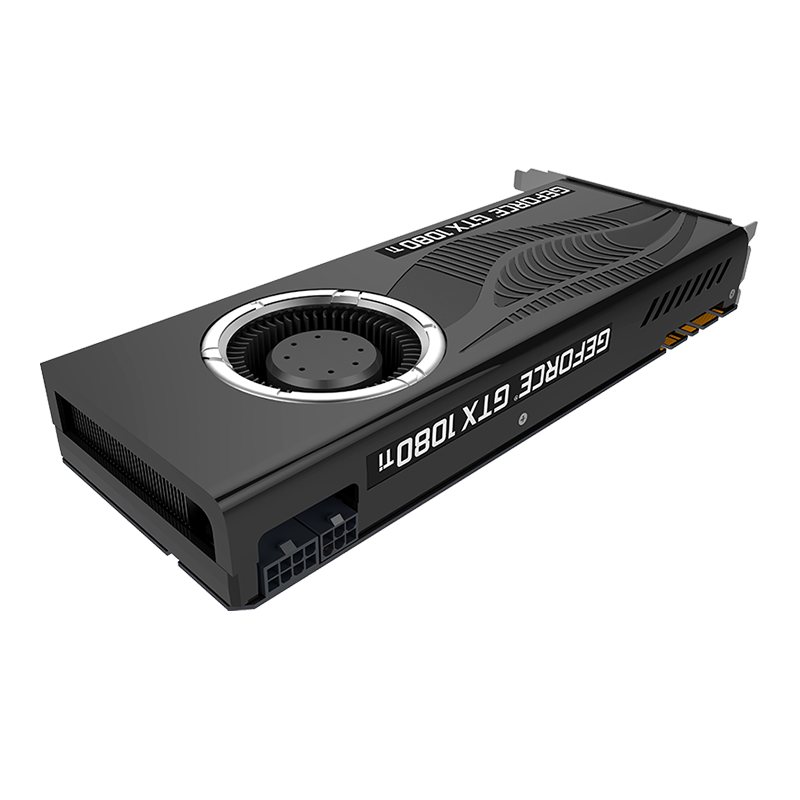

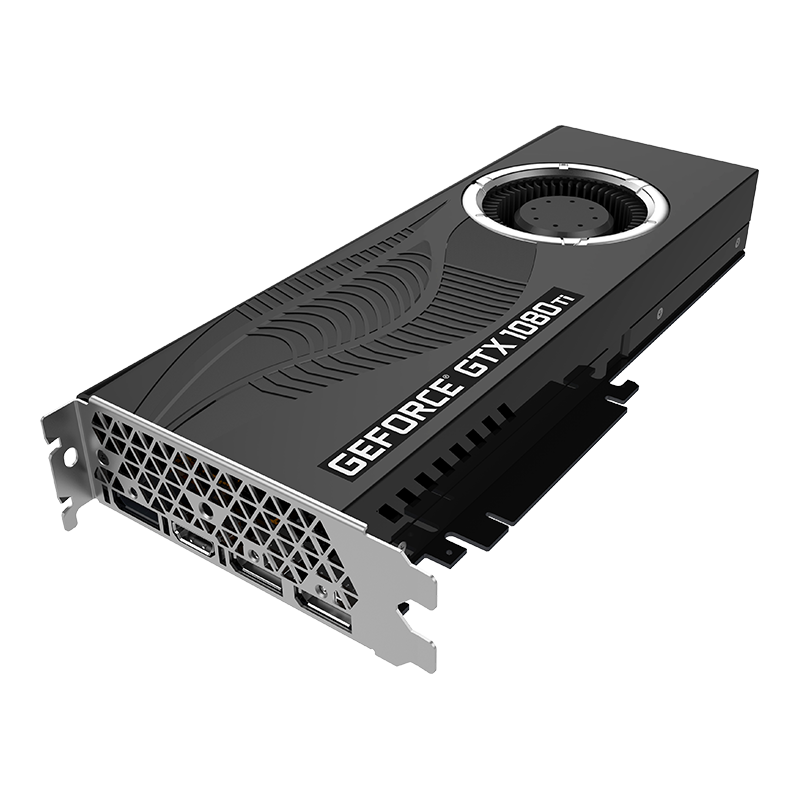

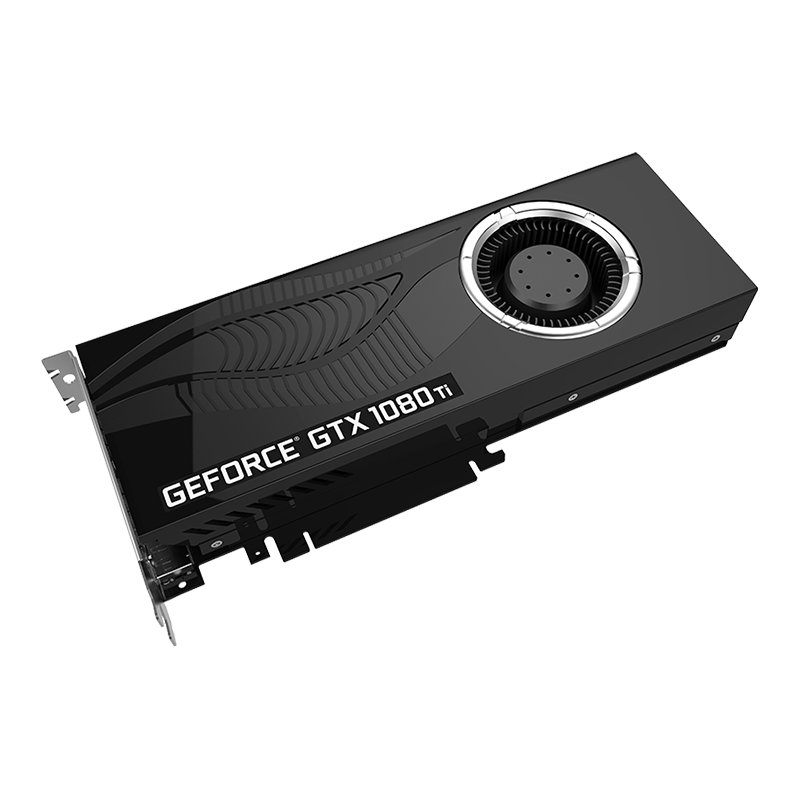

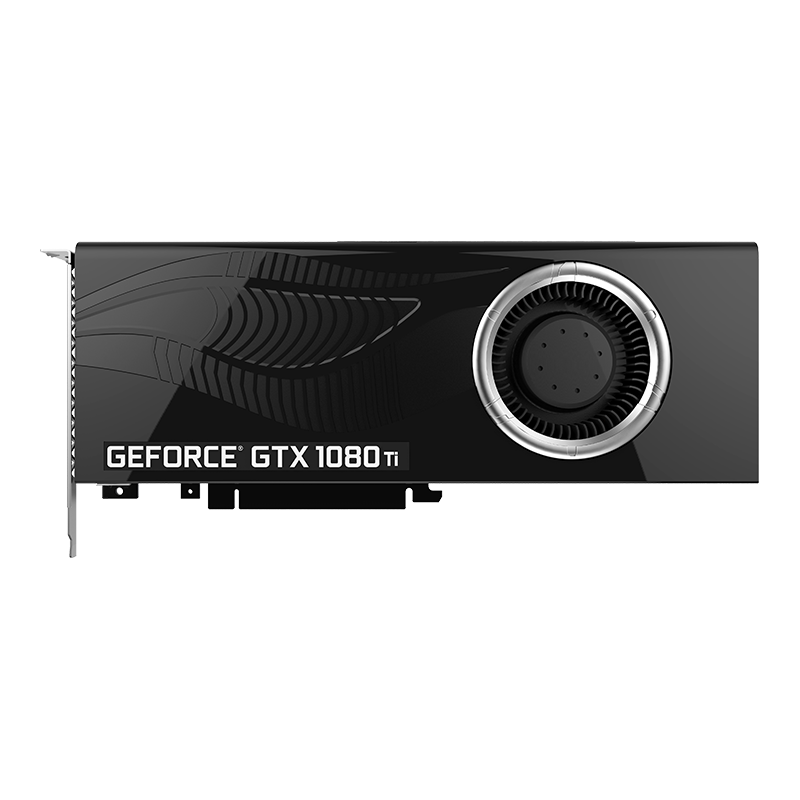

GeForce GTX 1080 Ti Blower Edition

SKU: VCGGTX1080T11PB-CG

Description

GEFORCE GTX 1080 Ti BLOWER EDITION

Performance

GeForce RTX™ graphics cards are powered by the Turing GPU architecture and the all-new RTX platform.

NVIDIA Pascal

VR Ready

Plug-and-play compatibility with leading headsets—driven by NVIDIA VRWorks™ technologies.

Velocity X Software Support

Maximize your GPU performance through real time monitoring, custom overclocking and total fan control.

Overview

Ultimate GeForce

The GeForce® GTX 1080 Ti is NVIDIA’s new flagship gaming GPU, based on the NVIDIA Pascal™ architecture. The latest addition to the ultimate gaming platform, this card is packed with extreme gaming horsepower, next-gen 11 Gbps GDDR5X memory, and a massive 11 GB frame buffer. #GameReady.

KEY FEATURES

Simultaneous Multi-Projection
VR Ready
NVIDIA Ansel Support
NVIDIA® SLI® w/ HB Bridge Support
NVIDIA G-SYNC™
NVIDIA GameStream™
NVIDIA GPU Boost™ 3.0
Microsoft® DirectX® 12 Support
Vulkan API Support
Open GL 4.5 Support
PCI Express 3.0
Max Digital Resolution - 7680x4320@60Hz1
Display Connectors
- (3x) DP 1.4
- HDMI 2.0b

MINIMUM SYSTEM REQUIREMENTS

PCI Express-compliant motherboard with one dual-width x16 graphics slot
One 6-pin, One 8-pin PCI Express supplementary power connectors
Minimum 600W or greater system power supply
300MB of available hard-disk space
8GB system memory (16GB or higher recommended)
Windows 7-10, Linux, FreeBSDx86
Internet connection

INCLUDED IN THE BOX

GeForce GTX 1080 Ti Blower Edition Graphics Card
Quick Installation Guide
One PCIe 8-pin power adapter
DisplayPort to DVI Adapter

Product Specifications

CUDA Cores	3584
Core Speed	1480 MHz
Boost Clock	1582 MHZ
Memory Clock	11 GBPS
Memory Amount	11GB GDDR5X
Memory Interface	352-BIT
Memory Bandwidth	484GBPS
TDP	250W
SLI	SLI HB Bridge Supported
Multi-Screen	Yes
Max Resolution	7680 × 4320 @60Hz (Digital)
Power Input	One 6-PIN, One 8-PIN
Bus Type	PCI-Express 3.0 x 16
Card Dimensions	4.376" x 10.5"
Width	Dual Slot
Box Dimensions	12.5" x 6.4" x 2.7"
Virtual Reality Ready	Yes

Warranty

3 Year

Resources / Downloads

Product Brochure
Quick Start Guide
GeForce Experience

Tech Support

Have a question?
Call a Specialist or chat online.
Call 1-800-234-4597.

1. 7680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 × 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.

4. In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the VirtualLink Advance Overview.

5. Advertised TDP does not include the additional up to 35 watts required when Type-C port is in use. TDP increases by up to 35 watts when Type-C port is being utilized for VirtualLink™.
