Graphics Card

Support Bracket

Step 1 Select

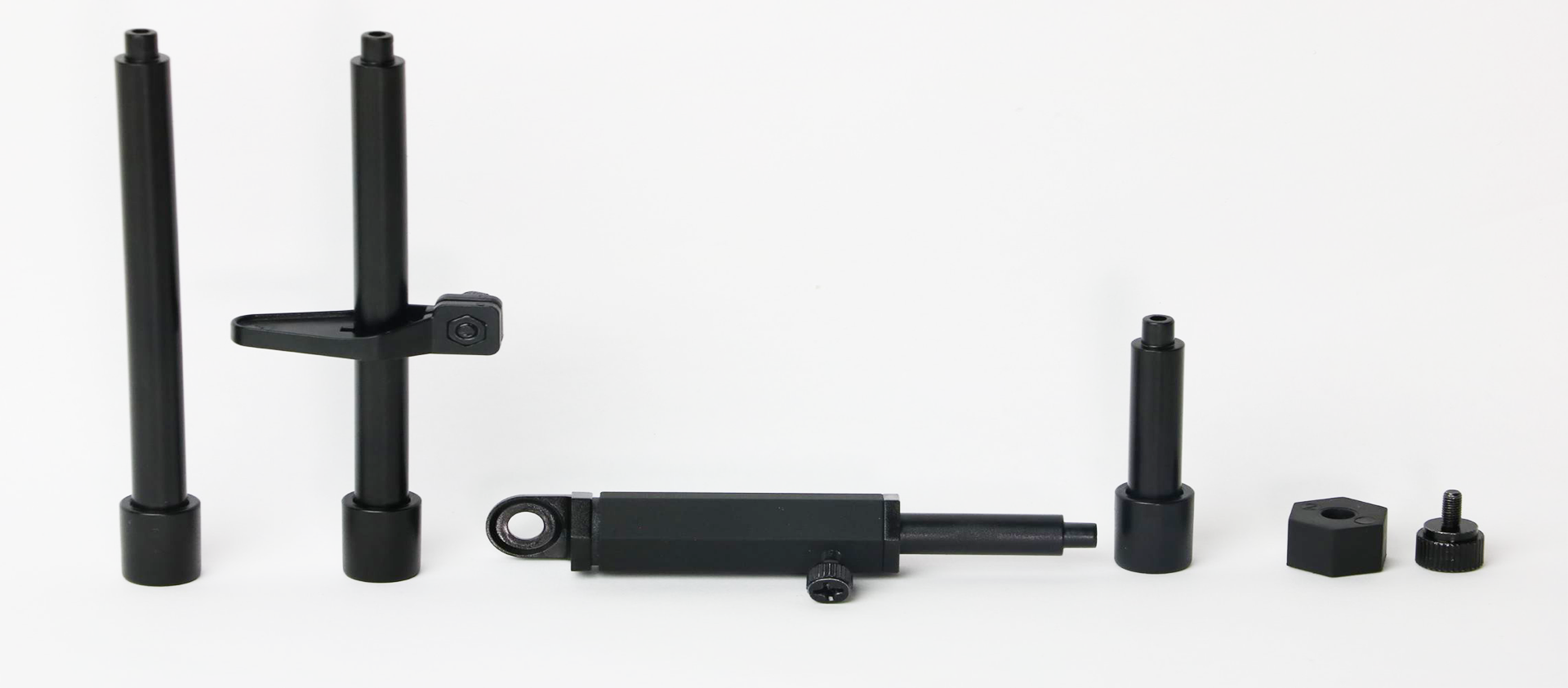

Choose the proper lengths of kits to assemble the VGA holder depending on your graphics card height

Step 2 Assemble

Starting with the main body, connect your selected pieces end to end

Step 3 Install

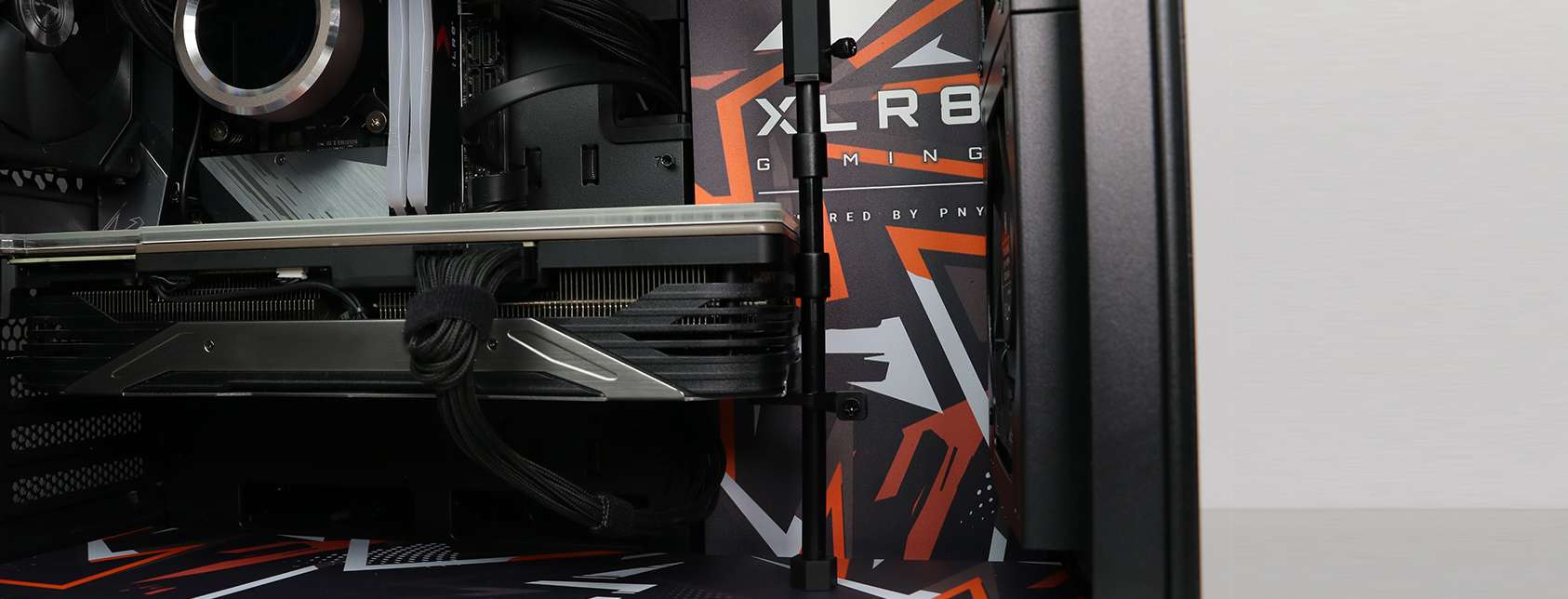

Screw the main body into the graphics card with the tool-less (thumb) screw
Screw holes are located at the north or east side of the backplate.

Step 4 Adjust

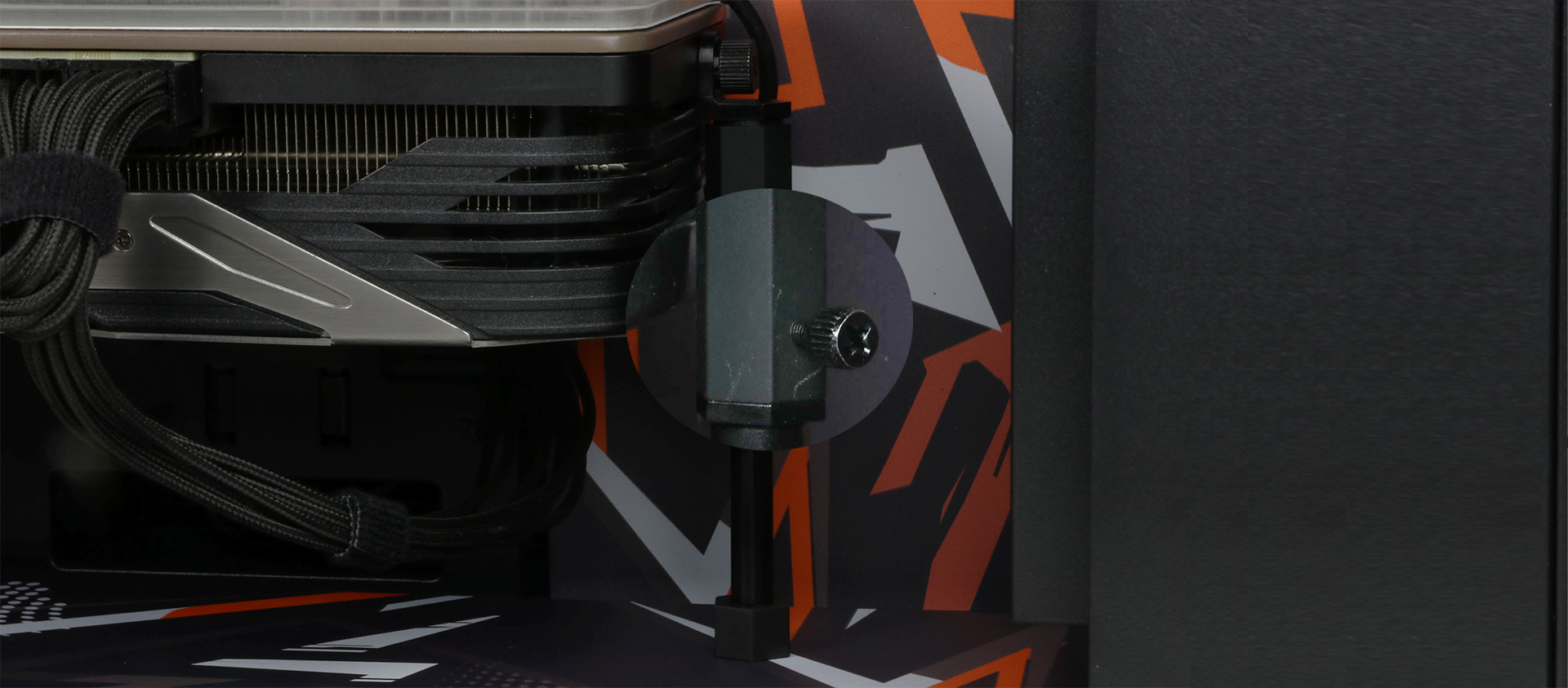

Adjust the length of the main body using the tool-less (thumb) screw to steady graphics card and prevent your graphics card from sagging

Installing via Support Bracket

Follow step 1 indicated above and for step 2 assemble with the support bracket instead of the main body.

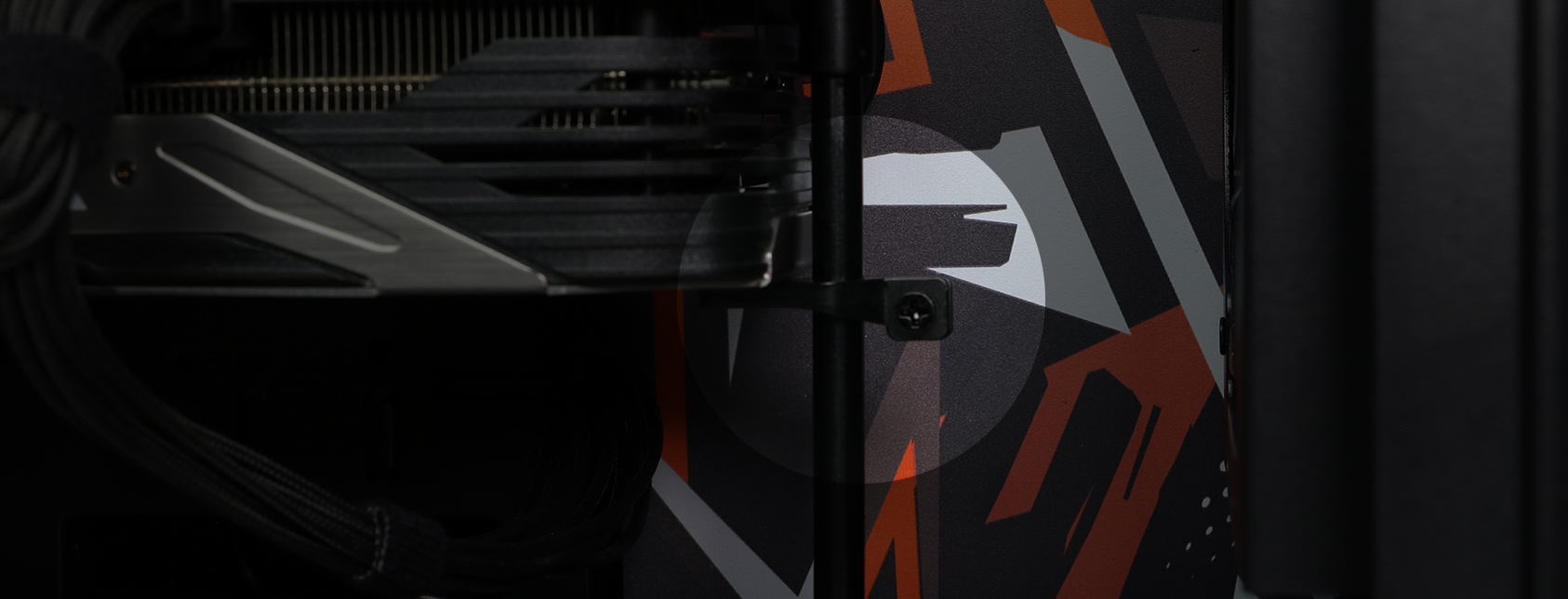

Once assembled, place the support bracket under the north or east side of your backplate.
Then adjust the location and height of the holding kit so that it firmly supports and prevents your graphics card from sagging

Dual Cards

For dual cards, use holding kit. See installation directions and image below

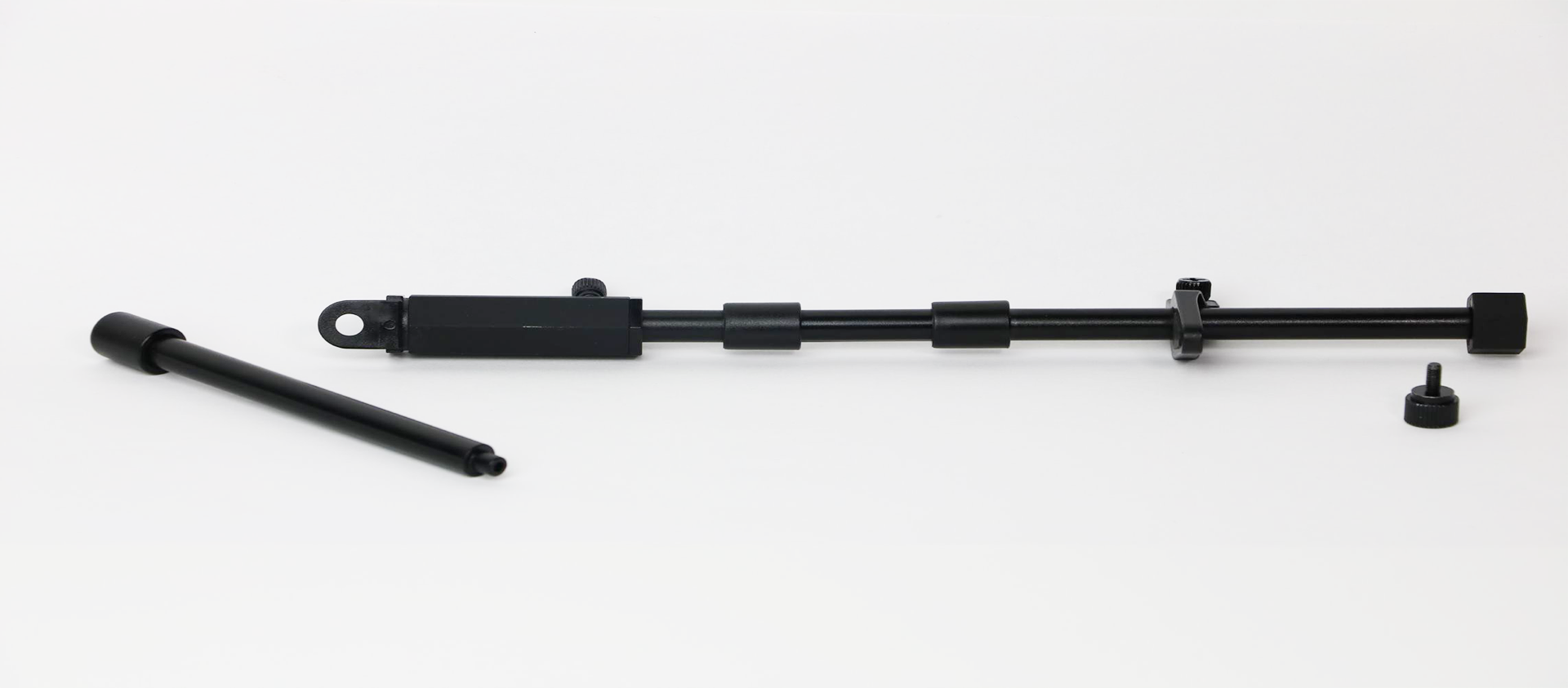

Connect additional graphics card holder kit below the main body.
Follow steps 3 & 4 above, attaching the bracket to your first graphics card.
Adjust the length of the main body using the tool-less (thumb) screw so the holding kit lines up below your second graphics card.
Install the holder under the north or east side of your second graphics card.
Adjust the location and height of the holding kit so that it firmly supports and prevents your graphics card from sagging
