PNY GeForce GTX 1660 SUPER 6GB XLR8 Gaming Overclocked Edition

PNY GeForce® GTX 1660 SUPER™ 6GB XLR8 Gaming Overclocked Edition


  • Description

    PNY GeForce GTX 1660 SUPER 6GB XLR8 Gaming Overclocked Edition

    Best-In-Class Performance

    Best-in-class performance with the advanced graphics capabilities of the award-winning NVIDIA® Turing architecture.

    Turing Shaders

    Concurrent execution of floating point and integer operations, adaptive shading technology, and a new unified memory architecture enable awesome performance increases on today’s games.


    State-of-the-art graphics features, including variable rate shading, mesh shading, and multi-view rendering.


    The GeForce® GTX 1660 SUPER™ is up to 20% faster than the original GTX 1660 and up to 1.5X faster than the previous-generation GTX 1060 6GB. Powered by the award-winning NVIDIA Turing architecture and ultra-fast GDDR6 memory, it's a supercharger for today's most popular games. Time to gear up and get SUPER.

    Experience the breakthrough graphics performance of the award- winning NVIDIA Turing™ architecture with GeForce® GTX 16 Series graphics cards and laptops. Upgrade your PC for performance that's blazing-fast on today's most popular games, and even faster with modern titles. Step up to GeForce GTX.

    Now the new GeForce GTX SUPER Series has ultra-fast GDDR6 memory, bringing you performance that's up to 50% faster than the original GTX 16 Series and up to 2X faster than previous-generation 10 Series GPUs. It's time to gear up and get SUPER.


    • Based on Turing Architecture
    • NVIDIA GeForce Experience
    • NVIDIA Ansel
    • NVIDIA Highlights
    • NVIDIA G-SYNC Compatible
    • Game Ready Drivers
    • Microsoft® DirectX® 12 API, Vulkan API, OpenGL 4.6
    • HDCP 2.2
    • NVIDIA GPU Boost
    • VR Ready


    • PCI Express-compliant motherboard with one dual-width x16 graphics slot
    • One 8-pin supplementary power connector
    • 450 W or greater system power supply2
    • 1.5GB available hard-disk space
    • 8GB system memory (16GB or higher recommended)
    • Microsoft Windows 10 (April 2018 Update or later), Windows 7 64-bit, Linux 64-bit
    • Internet connection3
    Product Specifications
    PNY Part Number VCG16606SDFMPB-O
    UPC Code 751492632698
    CUDA Cores 1408
    Clock Speed 1530 MHz
    Boost Speed 1830 MHz
    Memory Speed (Gbps) 14
    Memory Size 6GB GDDR6
    Memory Interface 192-bit
    Memory Bandwidth (GB/sec) 336
    TDP 125 W
    NVLink Not Supported

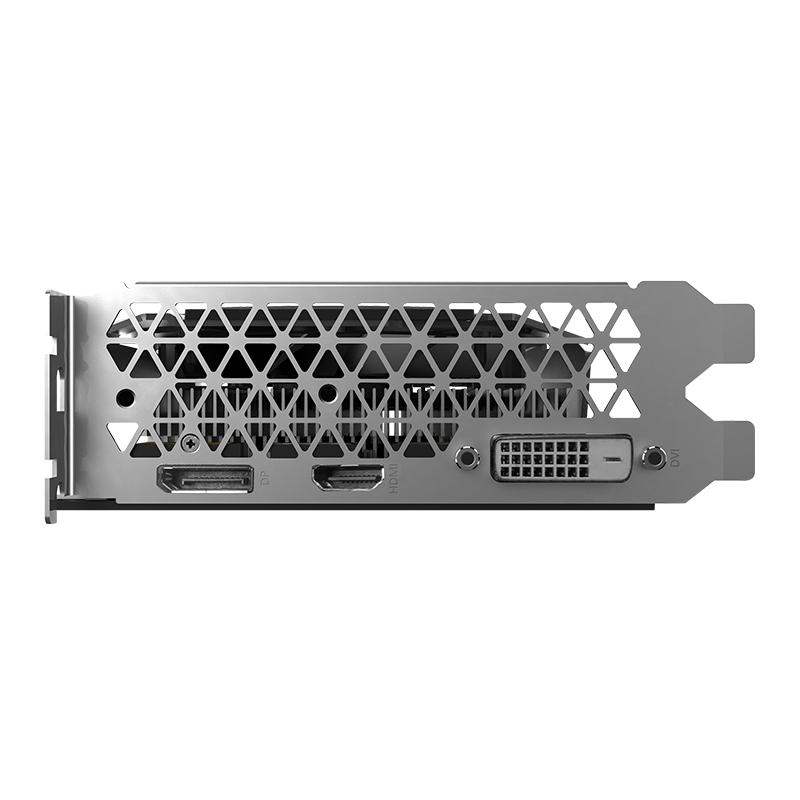

    Outputs DisplayPort 1.4, HDMI 2.0b, DVI-D
    Multi-Screen Yes
    Resolution 7680 × 4320 @60Hz (Digital)1
    Power Input One 8-pin
    Bus Type PCI-Express 3.0 ×16
    Card Dimensions 1.65” × 9.13” × 4.92”; Dual-Slot
    Box Dimensions 13.8” × 4.32” × 6.76”


    3 Year

    Tech Support

    Have a question?
    Call a Specialist or chat online.
    Call 1-800-234-4597.

    1. 7680 × 4320 @60Hz RGB8-bit with dual DisplayPort connectors or 7680 × 4320 @60Hz YUV420 8-bit with DisplayPort 1.3 connector.

    2. Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.

    3. Graphics Card driver is not included in the box; GeForce Experience will download the latest GeForce driver from the Internet after install.
