NVIDIA Quadro P4000 Sync

NVIDIA Quadro P4000 Sync

  • SKU: VCQP4000SYNC-PB
  • Description

    NVIDIA Quadro P4000 Sync

    Versatile Professional Graphics Syncronized Display Solution.

    The new NVIDIA® Quadro® P4000 combines a 1792 CUDA Core Pascal GPU, large 8GB GDDR5 memory and advanced display technologies to deliver the performance and features that are required by demanding professional applications. Display resolutions are increasing, with 4K displays becoming common and the greater availability of 5K and beyond displays. Massive visualization displays in design centers, entertainment, retail, and sporting events are pushing the boundaries of display technologies. On-air broadcasts incorporating graphics, video, and virtual sets are becoming the norm. The mixing of graphics and video, often across many display devices, is becoming part of the creative process.

    The NVIDIA Quadro Sync II card provides the solution for these advanced synchronized display requirements. The NVIDIA Quadro Sync II can synchronize up to 4 NVIDIA Quadro P4000 boards per card for 16 synchronized displays per Sync II, and with 2 Sync II cards per system, up to 8 NVIDIA Quadro P4000 GPUs per chassis for a total of 32 synchronized displays per system (until a software update is released 16 displays can be synchronized). The NVIDIA Quadro Sync II, combined with NVIDIA Quadro P4000 powered graphics, is the ultimate solution for professional synchronized display deployments requiring versatile and cost effective synchronized FP32 single precision fueled graphics performance.

    Highlights

    CUDA Cores 1792
    Peak Single Precision FP32 Performance 5.2 TFLOPS
    GPU Memory 8 GB GDDR5
    Display Connectors DP 1.4 (4) + Stereo
    Synchronized Displays per Quadro Sync II 16
    Number of Quadro Sync II Boards Per System 2
    Number of Synchronized Displays Per System 32 (16 Until Software Update Becomes Available)
    Quadro Sync II Connectors 2x RJ45 (Frame Lock) + BNC (Genlock)
    MOSAIC Platform Support Windows 10, 8.1, 8, 7, Linux

    DIGITAL SIGNAGE SOLUTIONS

    • Create massive visualization solutions consisting of large numbers of synchronized monitors or projectors.
    • Use multiple systems with synchronized display outputs to create massive visualization clusters.

    MANUFACTURING SOLUTIONS

    • Designers can create massive visualization systems for collaborative design, design reviews, and retail locations.

    MEDIA & ENTERTAINMENT SOLUTIONS

    • Broadcasters can synchronize graphics and video for broadcast solutions, virtual sets, on air graphics.
    • Massive visualization solutions can be created for entertainment outlets, sporting events, synchronizing multiple monitors or projectors for artifact free displays.

    AEC SOLUTIONS

    • Multiple projectors or monitors can be used to review design concepts or changes at scale.

    VISUAL SIMULATION SOLUTIONS

    • Create flight simulations that circle the globe seamlessly without limitations to altitude or detail.
    • Connect multiple displays or projectors to create 360-degree field of view.
    • NVIDIA Quadro Sync II can connect multiple P4000 cards and workstations for massive multi-display and multi-projector simulation environments.

    Warranty


    3-Year Limited Warranty

    Free dedicated phone and email technical support (1-800-230-0130)

    Dedicated NVIDIA Quadro Field Application Engineers

    Contact gopny@pny.com for additional information.

  • Features

    NVIDIA Quadro P4000 Sync

      IMAGE QUALITY

    Full-Scene Antialiasing (FSAA)

    Dramatically reduce visual aliasing artifacts or "jaggies" with up to 64X FSAA (128X with SLI) for unparalleled image quality and highly realistic scenes.

    16K Texture and Render Processing

    Texture from and render to 16K x 16K surfaces to support applications that demand the highest resolution and quality image processing.

    Pascal Memory Compression

    Increase bandwidth by up to 20% by reducing the amount of data fetched from memory for each frame with fourth generation, lossless delta compression.

    DISPLAY FEATURES

    NVIDIA Quadro MOSAIC Technology

    Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

    DisplayPort 1.4

    Support up to four 5K monitors at 60Hz, or dual 8K displays per card. The P4000 supports HDR color for 4K at 60Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode. Each DisplayPort connector is capable of driving ultra-high resolutions of 4096x2160 at 120 Hz with 30-bit color.

    HDR Ready

    HDR (High Dynamic Range), a Windows only feature, expands the range of contrast and color significantly. Bright parts of the image can get brighter and dark portions inky black, so the image seems to have more depth. Colors get expanded to show more bright reds, green, blues and everything in between. HDR’s wide color gamut presents colors, brightness, and black levels with unprecedented fidelity. An HDR capable display or TV is required to take advantage of the NVIDIA Quadro board’s HDR output capability.

    NVIDIA Quadro View

    NVIDIA Quadro View desktop management software helps you organize single- or multi-monitor workspaces with ease. Divide your workspace into regions to snap applications into place. Save profiles with pre-set configurations for your workflows. And set up hotkeys to quickly access common functions. Quadro View delivers the tools you need to take charge of your desktop.

    NVIDIA Quadro Experience

    NVIDIA Quadro Experience delivers productivity tools that simplify time-consuming tasks so you can get things done faster. Keep your Quadro driver up to date with automatic alerts so your system is always optimized for performance. Capture content in 4K and upload to your favorite third-party sites, broadcast live, or stream to your NVIDIA Shield for effortless collaboration. Get a suite of display management tools with NVIDIA Quadro View software. Even enjoy great gaming with just one click. NVIDIA Quadro Experience is the ultimate productivity companion to your Quadro graphics card.

    OpenGL Quad Buffered Stereo Support

    Provide a smooth and immersive 3D Stereo experience for professional applications.

    Professional 3D Stereo Synchronization

    Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to a NVIDIA Quadro graphics card.

    SOFTWARE SUPPORT

    NVIDIA CUDA Parallel Computing Platform

    Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computational fluid dynamics.

    NVIDIA GPUDirect for Video

    GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.

    NVIDIA Enterprise-Management Tools

    Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.

    MULTI-GPU TECHNOLOGY SUPPORT

    NVIDIA Multi-GPU Technology

    Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of NVIDIA Quadro GPUs to dramatically improve the production workflow.

    NVIDIA SLI HB Technology

    Leverage multiple P4000 GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system. 5K resolution in SLI mode supported

  • Specifications

    NVIDIA Quadro P4000 SYNC

    SPECIFICATIONS

    Compatible in all systems that accept an NVIDIA Quadro P4000

    CUDA Cores 1792
    Peak Single Precision FP32 Performance 5.3 TFLOPS
    GPU Memory 8 GB GDDR5
    Memory Bandwidth 243 GB/Sec
    Memory Interface 256-Bit
    System Interface PCI Express 3.0 x16

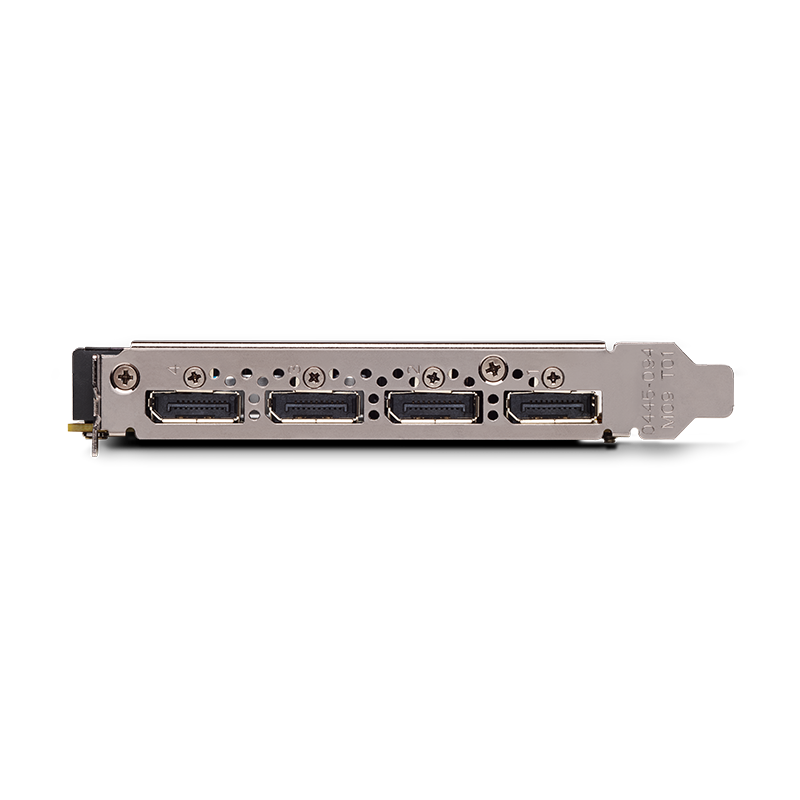

    Display Connectors DisplayPort 1.4 (4)
    Maximum DVI-D DL Resolution 1920 x 1200 at 60Hz with Included Adapter
    HDMI Support Optional Accessory
    Stereo Connector Optional Accessory
    NVIDIA Mosaic Support Yes
    Quadro Sync II Advanced Display Frame Lock and Genlock up to 32 Displays
    Max Power Consumption 105 W + 12 W for Quadro Sync II
    NVIDIA Quadro Power Guidelines
    Max Digital Resolution
    (2x DP Links)
    5120 x 2880 x24 bpp at 60hz
    (7680 x 4320 x24 bpp at 60hz)
    NVIDIA Quadro and NVS Display Resolution Support

    View All Product Specifications

    3D GRAPHICS ARCHITECTURE

    • Scalable geometry architecture
    • Hardware tessellation engine
    • NVIDIA GigaThread engine with dual copy engines
    • Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
    • Up to 16K x 16K texture and render processing
    • Transparent multisampling and super sampling
    • 16x angle independent anisotropic filtering
    • 32-bit per-component floating point texture filtering and blending
    • 64x full scene antialiasing (FSAA)/128x FSAA in NVIDIA SLI Mode
    • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
    • Dedicated H.264 and HEVC Encoder
    • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
    • NVIDIA GPU Boost 3.0 (Automatically improves GPU engine throughput to maximize application performance

    NVIDIA CUDA PARALLEL PROCESSING ARCHITECTURE

    • Pascal SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
    • Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
    • Mixed-precision (16-, 32- and 64-bit) computing
    • API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
    • 96 KB of RAM (dedicated shared memory per SM)

    ADVANCED DISPLAY FEATURES

    • Support for any combination of four connected displays
    • Four DisplayPort 1.4 outputs supporting resolutions such as 3840 x 2160 at 120Hz and 5120 x 2880 at 60Hz
    • DVI-D Dual Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz), internal 400 MHz DAC DVI-D output (analog display up to 2048 x 1536 at 85Hz)
    • DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI adapters optionally available (resolution support based on dongle specifications)
    • HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60Hz 10b/12b HEVC Decode, 4K at 60Hz 10b HEVC Encode)
    • HDCP 2.2 support over DisplayPort, DVI and HDMI connectors
    • Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA MOSAIC, NVIDIA Quadro Sync II and NVIDIA Warp/Blend technologies
    • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
    • NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
    • Full OpenGL quad buffered stereo support
    • Underscan/overscan compensation and hardware scaling
    • NVIDIA NVIEW multi-display technology

    AVAILABLE ACCESSORIES

    • NVIDIA SLI HB Technology Kit Leverage multiple GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system. 5K resolution in SLI mode supported. Order PNY Part Number HBSLIBRIDGE-2W2S-KIT.
    • Connect the NVIDIA Quadro P4000 to HDMI displays at resolutions up to 4K with PNY Part Number DP-HDMI-FOUR-PCK. The four included DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.

    SUPPORTED PLATFORMS

    • Microsoft Windows 10 (64- and 32-bit)
    • Microsoft Windows 8.1 and 8 (64- and 32-bit)
    • Microsoft Windows 7 (64- and 32-bit)
    • Microsoft Windows Server 2008 (64- and 32-bit)
    • Microsoft Windows Server 2012
    • Microsoft Windows Server 2012 R2 64
    • Microsoft Windows Server 2016
    • Linux – Full OpenGL implementation, complete with NVIDIA and ARB extensions (64- and 32-bit)

    MINIMUM SYSTEM HARDWARE REQUIREMENTS

    • Intel Core i5, i7, Xeon or later
    • AMD Phenom or Opteron-class or later
    • PCIe x16 Gen 3 (preferred) expansion slot
    • 2 GB or more of system memory, 8 GB recommended
    • 200MB of available disk space for full driver installation
    • Blu-ray or DVD-ROM drive
    • Internet connection (if preferred for driver installation)
    • DisplayPort (preferred) or DVI compatible displays
    • HDMI display(s) with purchase of optional DP to HDMI adapter(s)

    PACKAGE CONTAINS

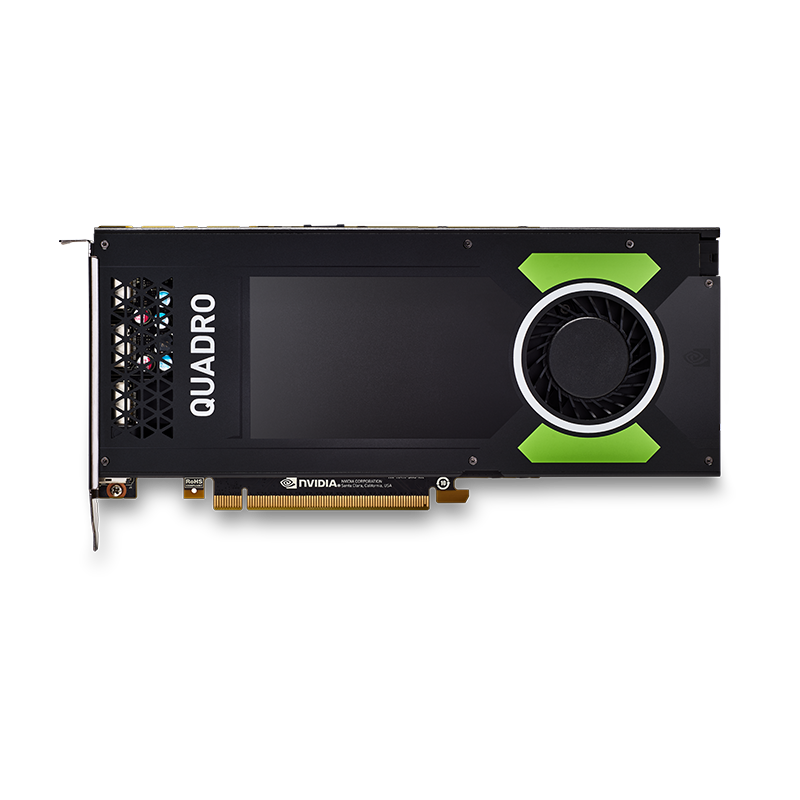

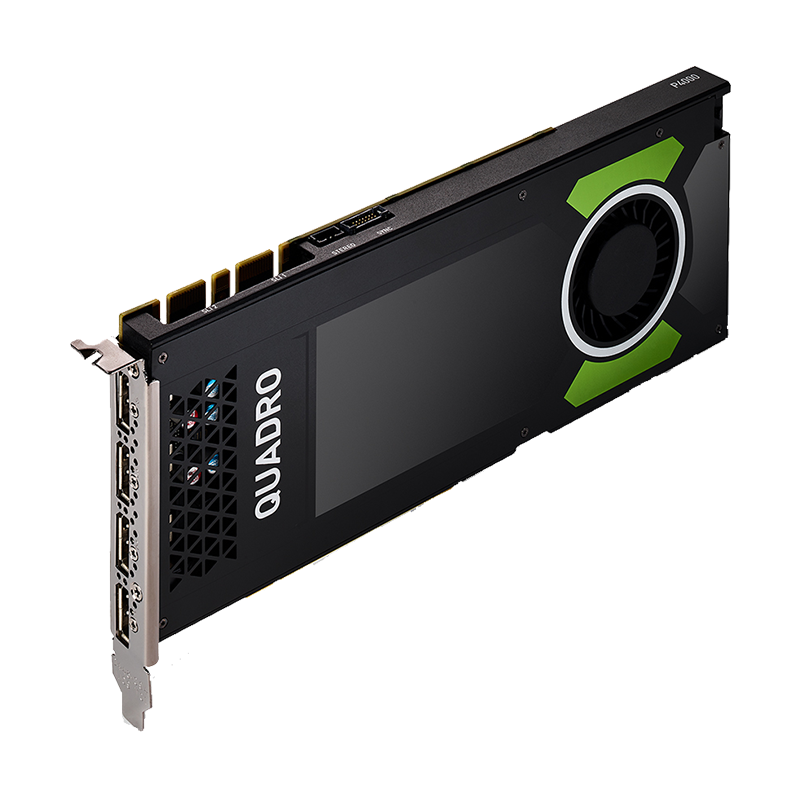

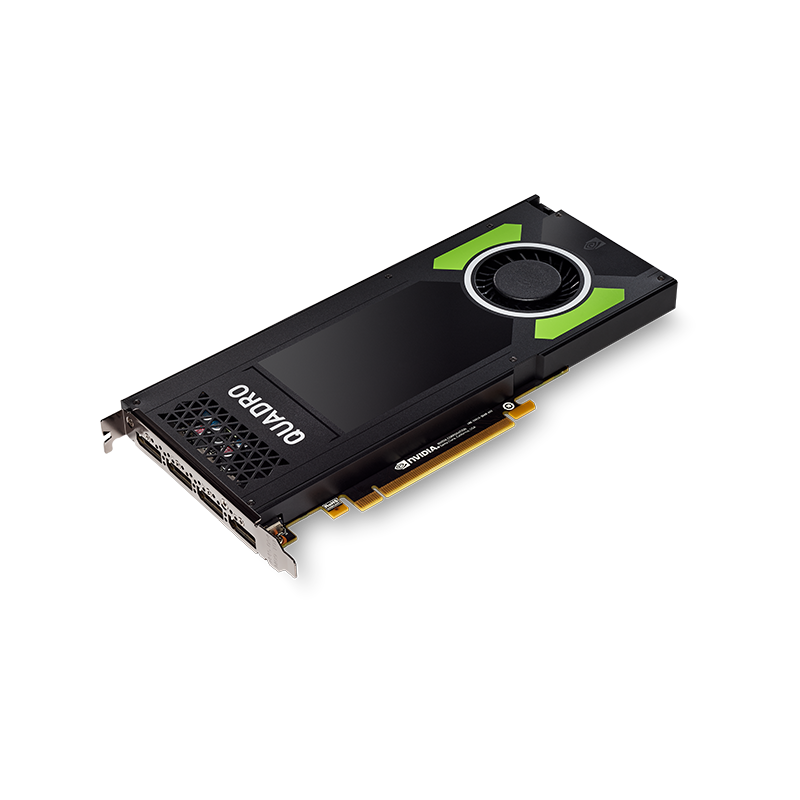

    • NVIDIA Quadro P4000 professional graphics board
    • Auxiliary power cable

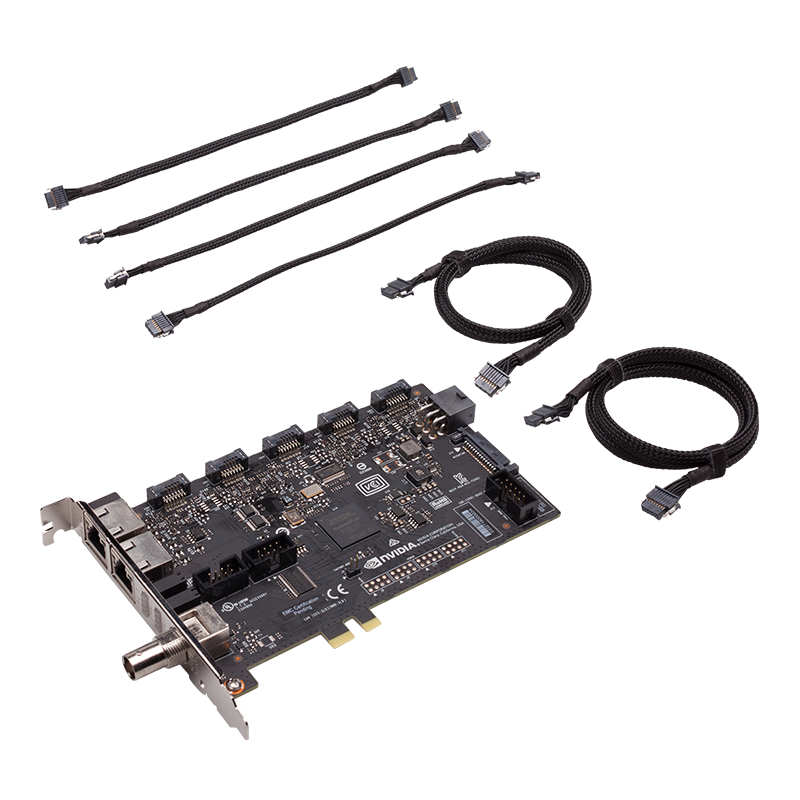

    • NVIDIA Quadro Sync II board
    • Printed Quick Start Guides for NVIDIA Quadro GP100 and NVIDIA Quadro Sync II
    • Four 12” (30.5 cm) Sync to GPU or Sync to Sync connector cables
    • Two 24” (61 cm) Sync to GPU or Sync to Sync connector cables
    • Software installation disc for Windows 10, 8.1, 8, and 7 (64- and 32-bit)
