NVIDIA Quadro P5000

SKU: VCQP5000-PB

Where to Buy

Commercial Sales

Description

Certification Request

NVIDIA Quadro P5000

Performance And Features Master Challenging Professional Workflows

The NVIDIA^® Quadro^® P5000 combines the latest GPU, memory and display technologies, resulting in outstanding performance and breakthrough capabilities. Professionals across a range of industries can now create their most complex designs, solve the most challenging visualization problems and experience their creations within the most detailed, lifelike and immersive VR environments. Additionally, you can create massive digital signage solutions by connecting multiple NVIDIA Quadro P5000s via NVIDIA Quadro Sync II.

Designs become more complex over time. Visual effects grow in size, complexity, and scope. Scientific visualization and compute challenges continue to push the boundaries of workstation capabilities. VR is changing all facets of entertainment, design, engineering, architecture and medicine. As professional workflows grow in size and complexity the demand for visual compute power grows with it.

The new NVIDIA Quadro P5000’s carefully tuned balance of graphics and single precision (FP32) compute performance, fast and expansive GDDR5X GPU memory, alongside sophisticated VR hardware and software optimizations coupled with advanced development frameworks, allow the creation of extremely large and complex designs, rapid rendering of photorealistic imagery, and startlingly immersive VR experiences.

Highlights

CUDA Cores	Peak Single Precision FP32 Performance	GPU Memory	Memory Interface	Memory Bandwidth	Stystem Interface	Display Connectors
2560	8.9 TFLOPS	16 GB GDDR5X	256-bit	288 GB/s	PCI Express 3.0 x16	DP 1.4 (4) + DVI-D DL (1) + Stereo

Manufacturing Solutions

Designers and engineers can create models with larger assemblies and larger numbers of components, render with higher image quality, or resolution.
NVIDIA Quadro P5000 supports multiple displays at up to 5K resolution.
Use real-world physics, lighting, and materials during interactive design and visualize with photo-realistic image quality.
Integrate simulation during design with finer time-steps, more depth of field, larger assemblies, and more detail in components.
NVIDIA Iray plug-ins enable designers to visualize designs with photorealistic image quality using physically based lights and materials as an integrated part of their workflow.
Combine multiple P5000 cards to provide incredible rendering power for larger, more demanding rendering workloads.
Pascal’s simultaneous multi-projection feature brings VR-based virtual prototyping to the next level. Larger, more complex designs can be experienced at scale, complete with virtual audio and touch integration.

Media & Entertainment Features And Benefits

Editors can work in real time with HDR content and up to 8K full resolution on more complex projects with more layers and effects.
Animators can create complex simulations and interactive visual effects. This includes building larger scenes with greater numbers of 3D elements—all fitting in graphics memory.
3D texture painting artists can enjoy more creative flexibility in their workflow by keeping a larger number of textures and assets in graphics memory.
Visual effects artists can create the more complex special effects, maintaining a larger number of assets in graphics memory and streamlining the effects workflow.
GPU-powered rendering lets artists visualize creations with photorealistic image quality using application-based, GPU-accelerated rendering or with NVIDIA Iray plug-ins using physically based lights and materials.
Create and play back ultra-high quality HDR content with dual H.264/HEVC encode engines and one decode engine.
NVIDIA Quadro P5000 brings new levels of VR content-creation power, for more complex, detailed, and lifelike VR experiences. Dual H.264/HEVC encode engines and one decode engine let you create and playback ultra-high quality HDR content.
NVIDIA Quadro P5000 brings new levels of VR content creation power, enabling more complex, more detailed, and more lifelike VR experiences than ever before.

Energy (Oil & Gas) Solutions

The P5000 GDDR5X memory provides up to twice the performance of the previous generation, allowing seismic interpreters to examine larger data sets with higher levels of interactivity than ever before without cutting down the size of the data or reducing fidelity. Reservoir simulations can also traverse GPU memory more quickly for better performance.
With more than 50% better compute performance than the previous generation, geoscientists can run simulations faster on the P5000, speeding up time to solution.

AEC Solutions

Architects can create larger models—including designing, conducting analysis, and making detailed walkthroughs of structures with greater levels of realism.
Plant designers can create more complex plant designs and conduct verifications and walkthroughs.
Urban designers can create larger models with more detail and complexity.
Powered by the P5000, VR-enabled walkthroughs allow customers to experience buildings at scale, providing instant feedback on designs, colors, textures, and features, and reducing costly rework once construction has begun.

Immersive Visualization Solutions

Drive more complex, lifelike HMD-based VR experiences by taking advantage of the P5000’s VR-specific GPU hardware.
Build completely immersive environments with a single P5000 driving multiple 4K projectors.
NVIDIA Quadro Sync with multiple P5000 configurations can be used to create extremely large virtual environments.
NVIDIA MOSAIC technology, combined with the P5000, enables seamless multi-projector implementations.

Visual Simulation Solutions

The P5000 features 16 GB of fast GDDR5X memory to enable more realistic simulations covering larger geographic areas with greater detail.
Connect multiple displays or projectors to create 360° field of view.
NVIDIA Quadro Sync II can connect multiple P5000 cards and workstations for massive multi-display and multi-projector simulation environments.

Warranty

PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3-year warranty, free pre- and post-sales support, dedicated NVIDIA Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install.

3-Year Limited Warranty

Free dedicated phone and email technical support (1-800-230-0130)

Dedicated NVIDIA Quadro Field Application Engineers

Resources

Product Brochure
NVIDIA Quadro Comparison
NVIDIA Quadro Configurator
NVIDIA Quadro Power Guidelines
Quadro and NVS Display Resolution Support
GPU Accelerated Applications

Contact gopny@pny.com for additional information.

Features

NVIDIA Quadro P5000

GPU PERFORMANCE FEATURES

Pascal GPU Architecture

State-of-the-art 16nm FinFET Plus process technology packs 2560 CUDA Cores and delivers up to 8.9 TFLOPS of single precision compute performance. The NVIDIA Quadro P5000 graphics board is one of the world’s most powerful dual-slot form factor graphics-optimized boards, with features required by computationally demanding FP32 single precision design visualization or immersive design reviews. Get real interactive expression with today’s demanding professional workflows.

Simultaneous Multi-Projection

Complete stereo rendering of geometry in a single pass to double the effective throughput for applications such as VR.

Pascal Dynamic Load Balancing

Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.

Pascal Graphics Preemption

First ever pixel level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.

Pascal Compute Preemption

Preemption at the thread and instruction level provides finer grain control over compute tasks.

H.264 and HEVC Encode/Decode Engines

Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with one dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.

NVIDIA GPU Boost

Achieve higher application performance without exceeding the power and thermal envelope of the board. Pascal GPU technology maximizes the boost potential of the GPU.

IMAGE QUALITY FEATURES

Full-Scene Antialiasing (FSAA)

Dramatically reduce visual aliasing artifacts or "jaggies" with up to 64X FSAA (128X with SLI) for unparalleled image quality and highly realistic scenes.

16K Texture and Render Processing

Texture from and render to 16K x 16K surfaces to support applications that demand the highest resolution and quality image processing.

Pascal Memory Compression

Increase bandwidth by up to 20% by reducing the amount of data fetched from memory for each frame with fourth generation, lossless delta compression.

DISPLAY FEATURES

NVIDIA Quadro Mosaic™ Technology

Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

NVIDIA Quadro Sync II

Synchronize the display and image output of up to 32 displays from 8 GPUs (connected through two Sync II boards) in a single workstation, reducing the number of machines needed to create an advanced video visualization environment. Each frame lock cable is designed with a self-locking retention mechanism to secure its connection with the frame lock connector to provide robust connectivity and maximum productivity. P5000 + NVIDIA Quadro Sync II turnkey bundles are available.

DisplayPort 1.4

Support up to four 5K monitors at 60Hz, or dual 8K displays per card. The P5000 supports HDR color for 4K at 60Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode. Each DisplayPort connector is capable of driving ultra-high resolutions of 4096 x 2160 at 120 Hz with 30-bit color.

HDR Ready

HDR (High Dynamic Range), a Windows only feature, expands the range of contrast and color significantly. Bright parts of the image can get brighter and dark portions inky black, so the image seems to have more depth. Colors get expanded to show more bright reds, green, blues and everything in between. HDR’s wide color gamut presents colors, brightness, and black levels with unprecedented fidelity. An HDR capable display or TV is required to take advantage of the NVIDIA Quadro board’s HDR output capability.

NVIDIA Quadro View

NVIDIA Quadro View desktop management software helps you organize single- or multi-monitor workspaces with ease. Divide your workspace into regions to snap applications into place. Save profiles with pre-set configurations for your workflows. And set up hotkeys to quickly access common functions. Quadro View delivers the tools you need to take charge of your desktop.

NVIDIA Quadro Experience

NVIDIA Quadro Experience delivers productivity tools that simplify time-consuming tasks so you can get things done faster. Keep your Quadro driver up to date with automatic alerts so your system is always optimized for performance. Capture content in 4K and upload to your favorite third-party sites, broadcast live, or stream to your NVIDIA Shield for effortless collaboration. Get a suite of display management tools with NVIDIA Quadro View software. Even enjoy great gaming with just one click. NVIDIA Quadro Experience is the ultimate productivity companion to your Quadro graphics card.

OpenGL Quad Buffered Stereo Support

Provide a smooth and immersive 3D Stereo experience for professional applications.

Professional 3D Stereo Synchronization

Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to a NVIDIA Quadro graphics card.

SOFTWARE SUPPORT

NVIDIA CUDA Parallel Computing Platform

Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.

NVIDIA GPUDirect for Video

GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.

NVIDIA Enterprise-Management Tools

Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.

NVIDIA Multi-GPU Technology

Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of NVIDIA Quadro GPUs to dramatically improve the production workflow.

NVIDIA SLI Technology

Leverage multiple P5000 GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system. 5K resolution in SLI mode supported.

Specifications

NVIDIA Quadro P5000

SPECIFICATIONS

Compatible in all systems that accept an NVIDIA Quadro P5000

CUDA Cores	2560
Peak Single Precision FP32 Performance	8.9 TFLOPS
GPU Memory	16 GB GDDR5X ECC
Memory Bandwidth	432 GB/Sec
Memory Interface	256-Bit
System Interface	PCI Express 3.0 x16

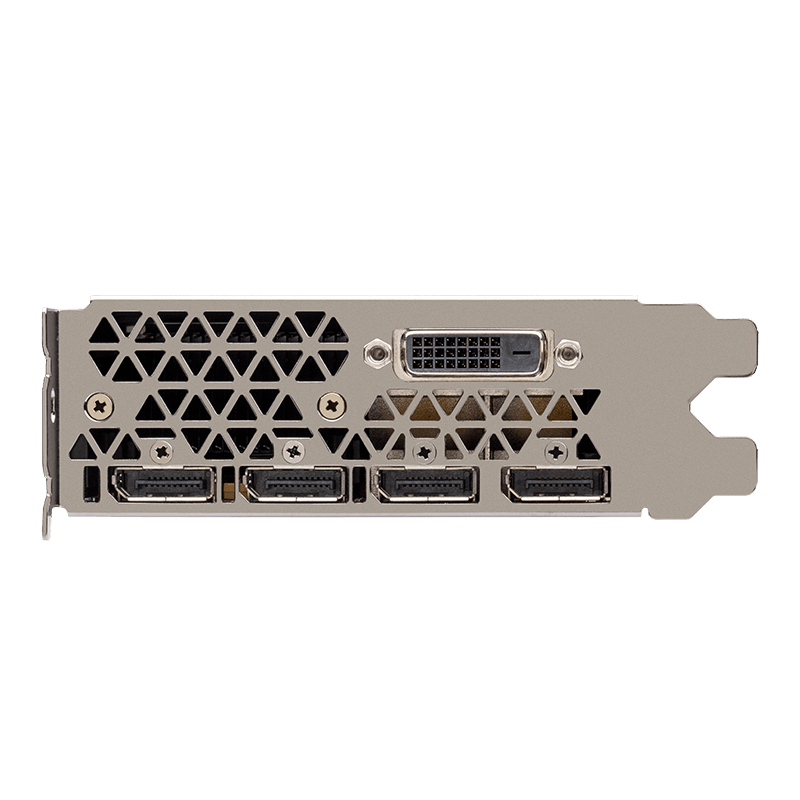

Display Connectors	DisplayPort 1.4 (4) + DVI-D DL
Maximum DVI-D DL Resolution	2560 x 1600 at 60Hz
HDMI Support	Optional Accessory
Stereo Connector	Optional Accessory
Thermal Management	Ultra-Quiet Fansink
Max Power Consumption	180 W NVIDIA Quadro Power Guidelines
Max Digital Resolution (2x DP Links)	5120 x 2880 x24 bpp at 60hz (7680 x 4320 x24 bpp at 60hz) NVIDIA Quadro and NVS Display Resolution Support

View All Product Specifications

3D GRAPHICS ARCHITECTURE

Scalable geometry architecture
Hardware tessellation engine
NVIDIA GigaThread engine with dual copy engines
Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
Up to 16 K x 16 K texture and render processing
Transparent multisampling and super sampling
16x angle independent anisotropic filtering

32-bit per-component floating point texture filtering and blending
64x full scene antialiasing (FSAA)/128x FSAA in NVIDIA SLI Mode
Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, and VC1
Dedicated H.264 and HEVC encoder
Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance.

NVIDIA CUDA PARALLEL PROCESSING ARCHITECTURE

Pascal SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)

API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
96 KB of RAM (dedicated shared memory per SM)

ADVANCED DISPLAY FEATURES

Support for any combination of four connected displays
Four DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 at 120 Hz and 5120 x 2880 at 60 Hz)
Dual-Link DVI-D output (up to 2560 x 1600 at 60 Hz and 1920 x 1200 at 120 Hz) Internal 400 MHz DAC DVI-D output (analog display up to 2048 x 1536 at 85 Hz)
DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link), and DisplayPort to HDMI cables available separately (resolution support based on dongle specifications)
HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60 Hz 10b/12b HEVC Decode, 4K at 60 Hz 10b HEVC Encode)
HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)

NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
Full OpenGL quad buffered stereo support
Underscan/overscan compensation and hardware scaling
NVIDIA NVIEW multi-display technology
Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA MOSAIC, NVIDIA Sync and NVIDIA Warp/Blend technologies
Turnkey NVIDIA Quadro P5000 + NVIDIA Quadro Sync II bundles available

AVAILABLE ACCESSORIES

BSLIBRIDGE-2W2S-KIT / HBSLIBRIDGE-2W3S-KIT NVIDIA SLI HB Technology Kit leverages multiple GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate. Order PNY Part Number HBSLIBRIDGE-2W2S-KIT or HBSLIBRIDGE-2W3S-KIT depending on motherboard PCIe slot spacing.
DP-HDMI-FOUR-PCK Connect the NVIDIA Quadro P5000 to HDMI displays at resolutions up to 4K with PNY Part Number DP-HDMI-FOUR-PCK. The four included DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
DP-HDMI-SINGLE-PCK Connect the NVIDIA Quadro P5000 to an HDMI display at resolutions up to 4K with PNY Part Number DP-HDMI-SINGLE-PCK. The included DisplayPort to HDMI adapter is recommended by NVIDIA, provides outstanding image quality, and is built to professional standards.

DP-DVI-QUADKIT-PB Connect the NVIDIA Quadro P5000 to DVI-D SL displays at resolutions up to 1920 x 1200 with PNY Part Number DP-DVI-QUADKIT-PB. The four included DisplayPort to DVI-D SL adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
DP-VGA-QUADKIT-PB Connect the NVIDIA Quadro P5000 to DVI-D SL displays at resolutions up to 2048 x 1536 with PNY Part Number DP-VGA-QUADKIT-PB. The four included DisplayPort to VGA adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.

SUPPORTED PLATFORMS

Microsoft Windows 10 (64-bit and 32-bit)
Microsoft Windows 8.1 and 8 (64-bit and 32-bit)

Microsoft Windows 7 (64-bit and 32-bit)
Linux – Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit and 32-bit)

MINIMUM SYSTEM HARDWARE REQUIREMENTS

Intel Core i5, i7, Xeon or later
AMD Phenom or Opteron-class or later
PCIe x16 Gen 3 (preferred) expansion slot
2 GB or more of system memory, 8 GB recommended
200MB of available disk space for full driver installation

Blu-ray or DVD-ROM drive
Internet connection (if preferred for driver installation)
DisplayPort (preferred) or DVI compatible displays
HDMI display(s) with purchase of optional DP to HDMI adapter(s)

PACKAGE CONTAINS

NVIDIA Quadro P5000 professional graphics board
Two DisplayPort to DVI-D SL adapters
Auxiliary power cable
Software installation disc for Windows 10, 8.1, 8, and 7 (64- and 32-bit)
Printed Quick Start Guide
