NVIDIA RTX A6000

NVIDIA RTX™ A6000

  • SKU: VCNRTXA6000-PB
  • Description

    NVIDIA RTX A6000

    Performance Amplified

    The world of professional visualization is evolving rapidly. Advanced requirements like real-time ray tracing, AI, compute, engineering simulation, and immersive VR are common across industries, while millions of professionals have shifted to working from home.

    The NVIDIA RTX A6000 delivers everything designers, engineers, and artists need to meet today's demands from their desktop. Built on the NVIDIA Ampere architecture, the RTX A6000 combines 84 second-generation RT Cores, 336 third-generation Tensor Cores, and 10,752 CUDA cores with 48 GB of graphics memory for unprecedented rendering, AI, graphics, and compute performance. Connect two RTX A6000s with NVIDIA NVLink for 96 GB of combined GPU memory. And access the power of your workstation from anywhere with remote-access software. Engineer amazing products, design state-of-the art buildings, drive scientific breakthroughs, and create immersive entertainment with the world's most powerful graphics solution.

    Watch Video

    NVIDIA RTX A6000

    Highlights

    CUDA Cores 10752
    Tensor Cores 336
    RT Cores 84
    Single Precision Performance 38.7 TFLOPS
    RT Core Performance 75.6 TFLOPS
    Tensor Performance 309.7 TFLOPS
    GPU Memory 48 GB GDDR6 with ECC
    Memory Interface 384-bit
    Memory Bandwidth 768 GB/sec
    System Interface PCI Express 4.0 x16

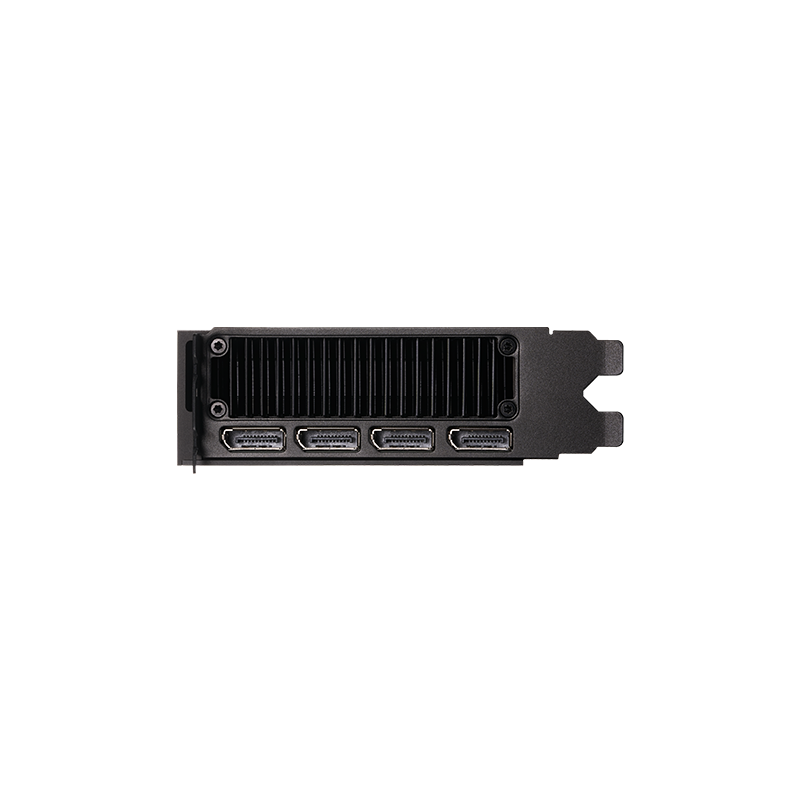

    Display Connectors 4x DisplayPort 1.4a
    Maximum Power Consumption 300 W

    Incredible Application Performance

    Experience fast, interactive performance—powered by the latest NVIDIA Ampere architecture-based GPU—with ultra-fast, on-board graphics memory technology and optimized software drivers for professional applications.

    The NVIDIA RTX A6000 includes 84 RT Cores to accelerate photorealistic ray-traced rendering up to 80% faster than the previous generation. Hardware accelerated Motion BVH (bounding volume hierarchy) improves motion blur rendering performance by up to 7X when compared to previous generation.

    With 336 Tensor Cores to accelerate AI workflows, the RTX A6000 provides the power necessary for AI development and training workloads. Incredible inferencing performance, combined with enterprise-class stability and reliability, make RTX A6000-powered desktop workstations ideal for professional AI training and inferencing deployments.

    Scale application performance even more with NVIDIA NVLink technology that lets you combine two RTX A6000 cards to double the effective GPU memory and performance in a single workstation chassis to 96 GB.

    Ensure hardware compatibility and stability through NVIDIA support of the latest OpenGL, DirectX, Vulkan, and CUDA standards, deep independent software vendor (ISV) developer engagements, and certification with over 100 professional software applications.

    NGC support gives engineers, researchers, and data scientists access to NVIDIA-tuned, tested, certified, and maintained containers for the top deep learning frameworks, as well as third-party managed high-performance computing (HPC) containers, NVIDIA HPC visualization containers, and partner applications.

    Rich, Expansive Visual Workspace

    Experience stunning imagery through movie-quality, anti-aliasing techniques, high-dynamic range (HDR) color support, higher refresh rates, and up to 8K screen resolution at 60 Hz from a single cable with the DisplayPort 1.4a standard.

    Value for IT Administrators

    Experience higher-quality products driven by power-efficient hardware and components selected for optimum operational performance, durability, and longevity.

    Enjoy maximum uptime thanks to exhaustive product testing with leading OEMs and system integrators that simulates the most demanding real-world conditions.

    Remotely monitor and manage NVIDIA professional products in your enterprise by integrating the NVIDIA Enterprise Management Toolkit (NVWMI) in your IT asset management framework.

    Scale up NVIDIA RTX Enterprise driver deployment to hundreds of workstations using NVWMI’s powerful driver installer.

    NVIDIA NVLink

    • Scales memory and performance for the largest visual computing workloads
    • Faster than PCIe-based solutions and offers flexible configurations

    vGPU Software Support

    • NVIDIA Virtual PC (vPC)
    • NVIDIA Virtual Applications (vApps)
    • NVIDIA RTX Virtual Workstation (vWS)
    • NVIDIA Virtual Compute Server (vCS)
    • vGPU Profiles from 1 GB to 48 GB


    PNY Logo

    Contact gopny@pny.com for additional information.

  • Features

    NVIDIA RTX A6000

    PERFORMANCE AND USEABILITY FEATURES

    NVIDIA Ampere Architecture

    NVIDIA RTX A6000 is the most powerful workstation GPU NVIDIA offering high performance real-time ray tracing, AI-accelerated compute, and professional graphics rendering. Building upon the major SM enhancements from the Turing GPU, the NVIDIA Ampere architecture enhances ray tracing operations, tensor matrix operations, and concurrent executions of FP32 and INT32 operations.

    CUDA Cores

    The NVIDIA Ampere architecture-based CUDA cores bring up to 2X the single-precision floating point (FP32) throughput compared to the previous generation, providing significant performance improvements for graphics workflows such as 3D model development and compute for workloads such as desktop simulation for computer-aided engineering (CAE). The RTX A6000 enables two FP32 primary data paths, doubling the peak FP32 operations.

    Second Generation RT Cores

    Incorporating second generation ray tracing engines, NVIDIA Ampere architecture-based GPUs provide incredible ray traced rendering performance. A single RTX A6000 board can render complex professional models with physically accurate shadows, reflections, and refractions to empower users with instant insight. Working in concert with applications leveraging APIs such as NVIDIA OptiX, Microsoft DXR and Vulkan ray tracing, systems based on the RTX A6000 will power truly interactive design workflows to provide immediate feedback for unprecedented levels of productivity. The RTX A6000 is up to 2X faster in ray tracing compared to the previous generation. This technology also speeds up the rendering of ray-traced motion blur for faster results with greater visual accuracy.

    Third Generation Tensor Cores

    Purpose-built for deep learning matrix arithmetic at the heart of neural network training and inferencing functions, the RTX A6000 includes enhanced Tensor Cores that accelerate more datatypes, and includes a new Fine-Grained Structured Sparsity feature that delivers up to 2X throughput for tensor matrix operations compared to the previous generation. New Tensor Cores will accelerate two new TF32 and BFloat16 precision modes. Independent floating-point and integer data paths allow more efficient execution of workloads using a mix of computation and addressing calculations.

    PCIe Gen 4

    The RTX A6000 supports PCI Express Gen 4, which provides double the bandwidth of PCIe Gen 3, improving data-transfer speeds from CPU memory for data-intensive tasks like AI and data science.

    Higher Speed GDDR6 Memory

    Built with 48GB GDDR6 memory delivering up to 15% greater throughput for ray tracing, rendering, and AI workloads than the previous generation. The RTX A6000 provides the industry’s largest graphics memory footprint to address the largest datasets and models in latency-sensitive professional applications.

    Error Correcting Code (ECC) on Graphics Memory

    Meet strict data integrity requirements for mission critical applications with uncompromised computing accuracy and reliability for workstations.

    Fifth Generation NVDEC Engine

    NVDEC is well suited for transcoding and video playback applications for real-time decoding. The following video codecs are supported for hardware-accelerated decoding: MPEG-2, VC-1, H.264 (AVCHD), H.265 (HEVC), VP8, VP9, and AV1.

    Seventh Generation NVENC Engine

    NVENC can take on the most demanding 4K or 8K video encoding tasks to free up the graphics engine and the CPU for other operations. The RTX A6000 provides better encoding quality than software-based x264 encoders.

    Graphics Preemption

    Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.

    Compute Preemption

    Preemption at the instruction-level provides finer grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.

    NVIDIA RTX IO

    Accelerating GPU-based lossless decompression performance by up to 100x and 20x lower CPU utilization compared to traditional storage APIs using Microsoft’s new DirectStorage for Windows API. RTX IO moves data from the storage to the GPU in a more efficient, compressed form, and improving I/O performance.

    MULTI-GPU TECHNOLOGY SUPPORT

    Third Generation NVLink

    Connect two RTX A6000 cards with NVLink to double the effective memory footprint and scale application performance by enabling GPU-to-GPU data transfers at rates up to 112.5 GB/s (total bandwidth).

    NVIDIA SLI Technology

    Leverage multiple GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system.

    DISPLAY FEATURES

    NVIDIA Quadro Mosaic™ Technology

    Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

    DisplayPort 1.4a

    Support up to four 5K monitors at 60Hz, or dual 8K displays at 60Hz per card. The RTX A6000 supports HDR color for 4K at 60Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode. Each DisplayPort connector can drive ultra-high resolutions of 4096 x 2160 at 120 Hz with 30-bit color.

    NVIDIA RTX Desktop Manager

    Gain unprecedented end-user control of the desktop experience for increased productivity in single large display or multi-display environments, especially in the current age of large, widescreen displays.

    NVIDIA Quadro Sync II

    Synchronize the display and image output of up to 32 displays[iii] from 8 GPUs (connected through two Sync II boards) in a single system, reducing the number of machines needed to create an advanced video visualization environment.

    OpenGL Quad Buffered Stereo Support

    Provides a smooth and immersive 3D Stereo experience for professional applications.

    Ultra-High-Resolution Desktop Support

    Get more Mosaic topology choices with high resolution displays devices with a 32K Max desktop size.

    Professional 3D Stereo Synchronization

    Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to an NVIDIA RTX professional graphics card.

    SOFTWARE SUPPORT

    NVIDIA Virtual GPU Software

    Support for NVIDIA virtual GPU (vGPU) software allows a personal workstation to be repurposed into multiple high-performance virtual workstation instances enabling remote users, to share resources to drive high-end design, AI, and compute workloads.

    NVIDIA RTX Experience

    NVIDIA RTX Experience delivers a suite of productivity tools to your desktop workstation, including desktop recording in up to 8K, automatic alerts for the latest NVIDIA RTX Enterprise driver updates, and access gaming features. The application is available for download.

    Software Optimized for AI

    Deep learning frameworks such as Caffe2, MXNet, CNTK, TensorFlow, and others deliver dramatically faster training times and higher multi-node training performance. GPU accelerated libraries such as cuDNN, cuBLAS, and TensorRT delivers higher performance for both deep learning inference and High- Performance Computing (HPC) applications.

    NVIDIA CUDA Parallel Computing Platform

    Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.

    Unified Memory

    A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.

    NVIDIA GPUDirect for Video

    GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.

    NVIDIA Enterprise-Management Tools

    Maximize system uptime, seamlessly manage wide-scale deployments, and remotely control graphics and display settings for efficient operations.

  • Specifications

    NVIDIA RTX A6000

    SPECIFICATIONS

    Compatible in all systems that accept an NVIDIA RTX A6000

    Architecture NVIDIA Ampere Architecture
    Process Size 8nm
    Transistors 28.3 Billion
    Die Size 628.4 mm
    CUDA Cores 10752
    Tensor Cores 336
    RT Cores 84
    Single Precision Performance 38.7 TFLOPS
    RT Core Performance 75.6 TFLOPS
    Tensor Performance 309.7 TFLOPS
    GPU Memory 48 GB GDDR6 with ECC
    Memory Interface 384-bit
    Memory Bandwidth 768 GB/sec
    Display Connectors 4x DisplayPort 1.4a
    NVENC | NVDEC 1x | 2x (+ AV1 decode)
    System Interface PCI Express 4.0 x16
    Form Factor 4.4" H x 10.5" L Dual Slot
    Thermal Solution Active Fansink
    Maximum Power Consumption 300 W
    NVIDIA Quadro and RTX Power Guidelines
    Power Connector 1x 8-pin CPU
    Max Digital Resolution 7680 x 4320 x36 bpp at 60 Hz
    NVIDIA Quadro and RTX Display Resolution Support
    vGPU Software Support NVIDIA GRID, NVIDIA Virtual Data Center Workstation, NVIDIA Virtual Compute Server
    vGPU Profiles Supported 1 GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB, 48 GB
    NVIDIA 3D Vision and 3D Vision Pro Support via 3-pin mini DIN
    Frame Lock Compatible with NVIDIA Quadro Sync II
    NVLink 2-way low profile (2-slot and 3-slot bridges) connects 2x NVIDIA RTX A6000
    NVLink Interconnect 112.5 GB/sec bidirectional

    AVAILABLE ACCESSORIES

    • RTXA6000NVLINK-KIT provides an NVLink connector for the RTX A6000 suitable for standard PCIe slot spacing motherboards, effectively fusing two physical boards into one logical entity with 21504 CUDA Cores, 672 Tensor Cores, 168 RT Cores, and 96 GB of GDDR6 ECC memory, with a bandwidth of 100 GB/Sec. Order PN RTXA6000NVLINK-KIT when ultimate performance and capabilities are required with two RTX A6000 boards (application support required).
    • RTXA6000NVLINK-3S-KIT offers an NVLink connector for the RTX A6000 compatible with motherboards featuring wider PCIe slot spacing. All other features and benefits are identical to the standard slot spacing version.
    • DP-HDMI-THREE-PCK connects the NVIDIA RTX A6000 to HDMI displays at resolutions up to 4K with PNY Part Number DP-HDMI-THREE-PCK. The three included DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
    • DP-HDMI-SINGLE-PCK connect the NVIDIA RTX A6000 to an HDMI display at resolutions up to 4K with PNY Part Number DP-HDMI-SINGLE-PCK. The included DisplayPort to HDMI adapter is recommended by NVIDIA, provides outstanding image quality, and is built to professional standards.

    SUPPORTED PLATFORMS

    • Microsoft Windows 11 (64-bit)
    • Microsoft Windows 10 (64-bit)
    • Red Hat Enterprise Linux 7.x
    • SUSE Linux Enterprise Desktop 15.x
    • OpenSuse 15
    • Fedora 31
    • Ubuntu 18.04
    • FreeBSD 11.x
    • Solaris 11

    MINIMUM SYSTEM HARDWARE REQUIREMENTS

    • Intel Core i5, i7, i9, or Xeon processor or later
    • AMD Ryzen or Epyc class processor or later
    • PCI Express 4.0 x16 (preferred) expansion slot
    • System memory greater than or equal to GPU memory, twice the GPU memory recommended
    • Internet connection for driver installation
    • DisplayPort 1.4a (preferred), HDMI, or DVI compatible display(s)

    PACKAGE CONTAINS

    • NVIDIA RTX A6000 professional graphics card
    • Auxiliary power cable
