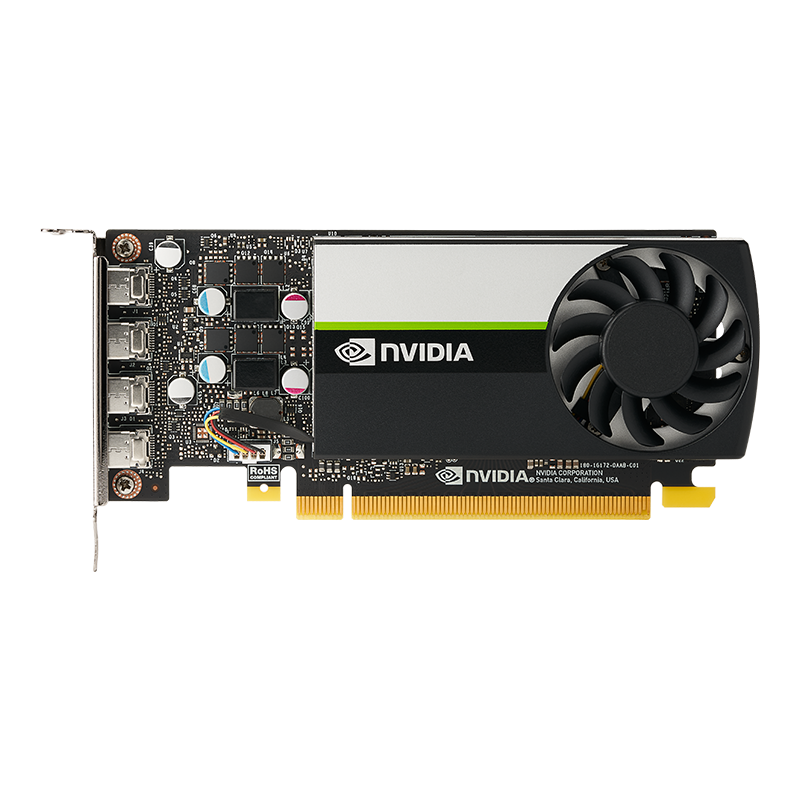

NVIDIA T1000E

NVIDIA^® T1000E

SKU: VCNT10008GB-LLP

Product Brochure Linecard

The NVIDIA Turing architecture provides significant performance improvements with NVIDIA T1000E, resulting in more than 50% graphics performance, compared to the previous generation P1000. Ultra-fast GDDR6 graphics memory technology provides twice the memory bandwidth of the previous generation. The NVIDIA T1000E is also part of the PNY Long Life Program*.

* Must be enrolled in the long-life program.

Features
- NVIDIA Turing Architecture
- 8 GB GDDR6
- PCI Express 3.0 x16
- 4 x MiniDisplayPort
- 896 CUDA^® Cores
- 50 W Max Power Consumption
Specifications

CUDA^® Cores

896

GPU Memory

8 GB GDDR6

Peak FP32 Performance

2.50 TFLOPS

Memory Interface

128-bit

Memory Bandwidth

160 GB/s

Max Power Consumption

50 W

View All Specifications

Specifications

CUDA^® Cores

896

GPU Memory

8 GB GDDR6

Peak FP32 Performance

2.50 TFLOPS

Memory Interface

128-bit

Memory Bandwidth

160 GB/s

Max Power Consumption

50 W

System Interface PCI Express

3.0 x16

Display Connectors

4x mDP

Max Digital Resolution

7680 x 4320 at 60 Hz

Max Displays

4x at 5K | 5120 x 2880 at 60 Hz

HDR Support

Yes

Quad Buffered Stereo

Yes

NVENC | NVDEC 2x H.264 and HVEC Encoders

1x Decode Engine

Form Factor

2.713" H x 6.137" L, Low-Profile, Single Slot

Thermal Solution:

Active Fansink
System Requirements
Hardware Requirements
- Intel Core i5, i7, i9, or Xeon processor or later
- AMD Ryzen or Epyc class processor or later
- PCI Express 4.0 x16 (preferred) expansion slot
- System memory greater than or equal to GPU memory, twice the GPU memory recommended
- Internet connection for driver installation
- DisplayPort 1.4a (preferred), HDMI, or DVI compatible display(s)
Supported Platforms
- Microsoft Windows 11 (64-bit)
- Microsoft Windows 10 (64-bit)
- Red Hat Enterprise Linux 7.x
- SUSE Linux Enterprise Desktop 15.x
- OpenSuse 15
- Fedora 31
- Ubuntu 18.04
- FreeBSD 11.x
- Solaris 11
Package Contains
NVIDIA T1000E Professional Graphics Card

Attached Low-profile (SFF) Bracket

Unattached Full-height (ATX) Bracket
Available Accessories

DP-HDMI-FOUR-PCK

DP-HDMI-FOUR-PCK connects the NVIDIA T1000 8GB (or T1000 4GB) to HDMI displays at resolutions up to 4K with PNY Part Number DP-HDMI-FOUR-PCK. The four included DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.

DP-HDMI-SINGLE-PCK

DP-HDMI-SINGLE-PCK connects the NVIDIA T1000 8GB (or T1000) to an HDMI display at resolutions up to 4K with PNY Part Number DP-HDMI-SINGLE-PCK. The included DisplayPort to HDMI adapter is recommended by NVIDIA, provides outstanding image quality, and is built to professional standards.

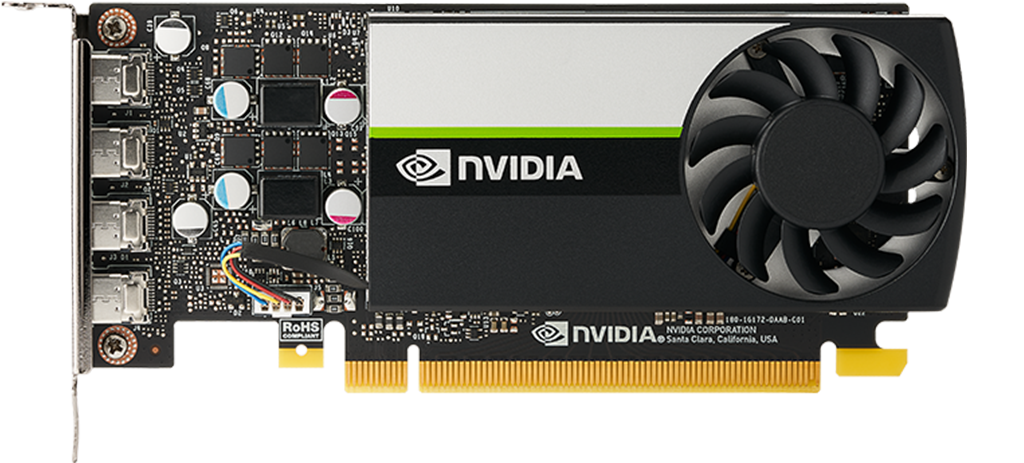

NVIDIA T1000E

Full Performance in a Small Form Factor Solution

The NVIDIA^® T1000E, built on the NVIDIA Turing™ GPU architecture, is a powerful, low-profile solution that delivers the full-size features, performance and capabilities required by demanding professional applications in a compact graphics card. The NVIDIA T1000E is also part of the PNY Long Life Program*.

* Must be enrolled in the long-life program.

Turing GPU Architecture

The NVIDIA T1000E GPU, built on a cutting-edge 12nm FFN process with 896 CUDA cores, is a powerful single-slot solution for professionals in CAD, DCC, financial services, and visualization. It delivers exceptional performance in a compact, efficient form factor.

Advanced Shading Technologies

The Turing GPU architecture includes advanced shader technologies: Mesh Shading speeds up geometry processing, offering up to 2x performance. Variable Rate Shading enhances efficiency by adjusting shading rates, cutting shaded pixels by 50%. Texture Space Shading boosts performance in pixel shader-heavy tasks like depth-of-field.

High-Performance GDDR6 Memory

The NVIDIA T1000E features 8GB of frame buffer capacity and 160 GB/s of peak bandwidth for double the throughput of the previous generation. NVIDIA T1000E boards are the ideal platform for 3D professionals and high demanding with vast arrays of datasets and multi display environments.

H.264 and HEVC Encode/Decode Engines

Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with two dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.

NVIDIA GPU BOOST 4.0

Automatically maximize application performance without exceeding the power and thermal envelope of the card. Allows applications to stay within the boost clock state longer under higher-temperature threshold before dropping to a secondary temperature setting base clock.

Compute Preemption

Preemption at the instruction-level provides finer grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.

Graphics Preemption

Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.

Single Instruction, Multiple Thread (SIMT)

New independent thread scheduling capability enables finer-grain synchronization and cooperation between parallel threads by sharing resources among small jobs.

Mixed-Precision Computing

Double the throughput and reduce storage requirements with 16-bit floating point precision computing to enable the training and deployment of larger neural networks. With independent parallel integer and floating-point data paths, the Turing SM is also much more efficient on workloads with a mix of computation and addressing calculations.
