NVIDIA 100GbE QSFP28 Direct Attach Copper Cable

NVIDIA 100GbE QSFP28 Direct Attach Copper Cable

NVIDIA MCP1600-C003E26N Direct Attach Copper Cable, Ethernet 100GbE QSFP28 3m Black 26AWG CA-N

  • SKU: MCP1600-C003E26N
  • Description

    100GbE QSFP28 Direct Attach Copper Cable

    Ethernet

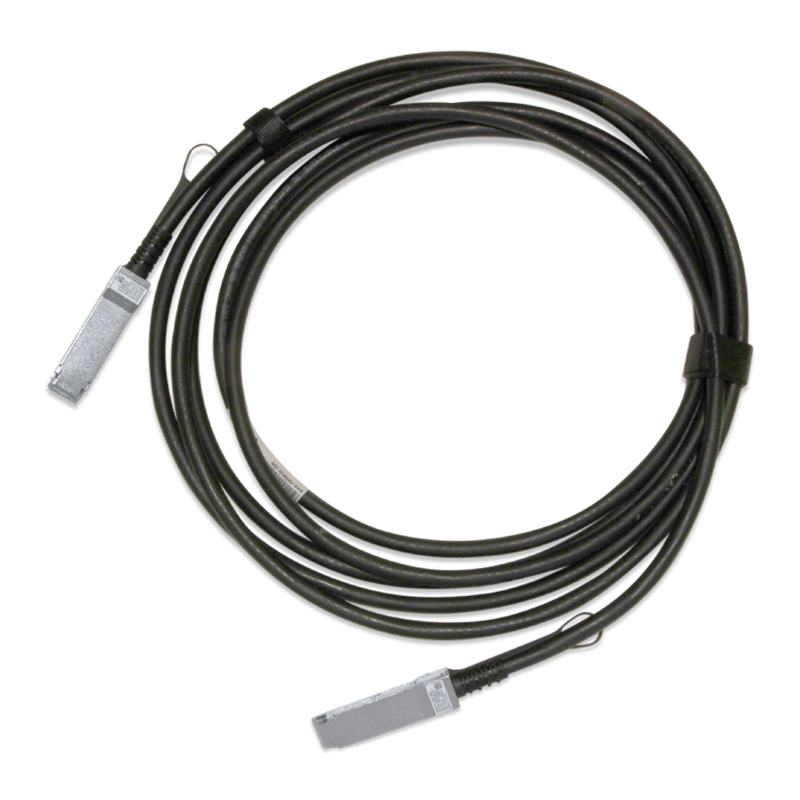

    NVIDIA MCP1600-C0xxEyyz direct attach copper (DAC) cables are high speed, cost-effective alternatives to fiber optics in 100Gb/s Ethernet applications.

    NVIDIA QSFP28 passive copper cable contains four high-speed copper pairs, each operating at data rates of up to 25GbE. Each QSFP28 connector includes an EEPROM providing product information which can be read by the host system.

    NVIDIA’s unique quality, passive, copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

    100GbE QSFP28 Direct Attach Copper Cable

    MCP1600-C0xxEyyz cables up to 2m support IEEE 802.3bj CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.3bj CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.

    NVIDIA’s unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
