NVIDIA 25GbE SPF28 Direct Attach Copper Cable

NVIDIA 25GbE SPF28 Direct Attach Copper Cable

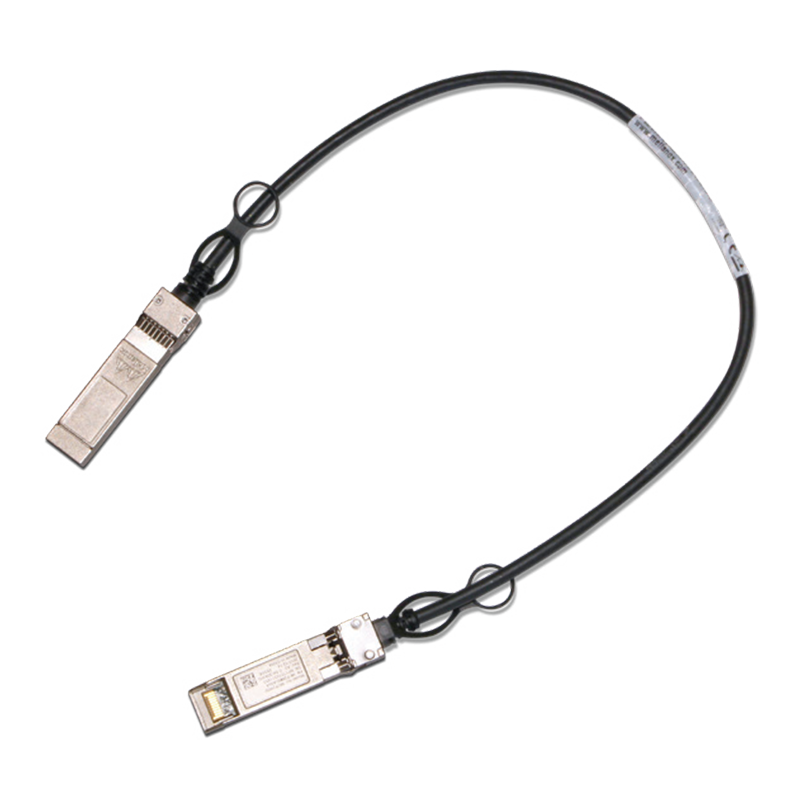

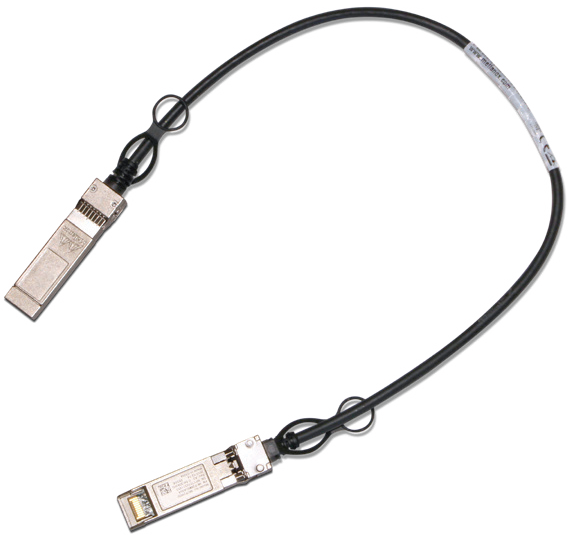

NVIDIA MCP2M00-A003E30L Direct Attach Copper Cable, Ethernet 25GbE SFP28 3m Black 30AWG CA-L

  • SKU: MCP2M00-A003E30L
  • Description

    25GbE SPF28 Direct Attach Copper Cable

    Ethernet

    NVIDIA MCP2M00-A0xxxxxx direct attach copper cables are high speed, cost-effective alternatives to fiber optics in 25GbE Ethernet applications.

    MCP2M00 passive copper cables contain a single high-speed copper pair, operating at data rates of up to 25GbE. The cables are compliant SFF-8402 SFP28 standard. Each SFP28 port comprises an EEPROM providing product information, which can be read by the host system.

    25GbE SPF28 Direct Attach Copper Cable

    MCP2M00 cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 4m to 5m support IEEE 802.3by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.

    NVIDIA’s unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

    Warranty


    Free dedicated technical support at the link below*
    Networking Support Self Register

    Dedicated NVIDIA professional products Field Application Engineers

    *When filling out the form under “Customer Type” please select “Mellanox System Customer”. Once the process is successful you will receive an automated e-mail with instructions to activate your account. Once approved, please open a new Support case for your issue.

    Resources


    Product Brochure

    Links


    Resource Center

    NVIDIA Networking Solutions Opportunity Form


    Register for an Opportunity

    Contact gopny@pny.com for additional information.

  • Specifications

    Specifications

    NVIDIA MCP2M00-A003E30L Direct Attach Copper Cable, Ethernet 25GbE SFP28 3m Black 30AWG CA-L

    Technology Ethernet
    Max Speed 25GbE
    Connector Type SFP28
    Length 3m
    AWG 30
    ECCN EAR99
