NVIDIA ConnectX-5 EN Card

NVIDIA ConnectX-5 EN Card

ConnectX-5 EN Card – Up to 25Gb/s Ethernet Adapter

  • Description

    ConnectX-5 EN Card

    Up to 25Gb/s Ethernet Adapter

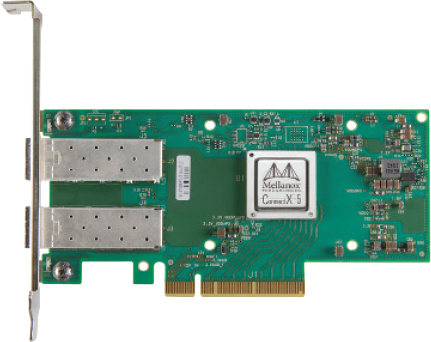

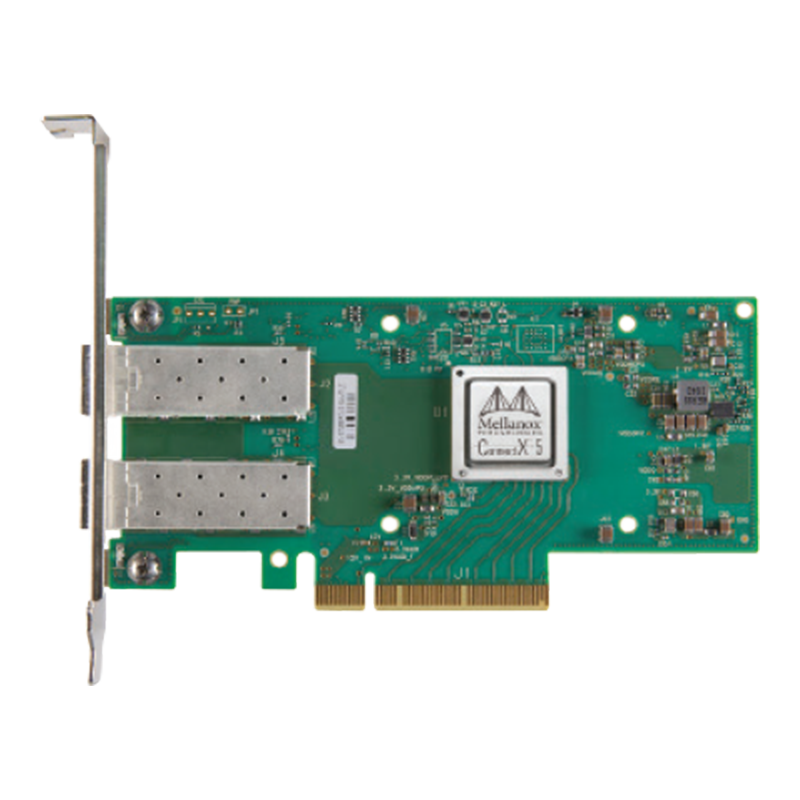

    NVIDIA Networking MCX512A-ACAT ConnectX-5 EN Adapter Card 10/25GbE, Dual-Port SFP28, PCIe 3.0 x8, Tall Bracket, RoHS R6

    Intelligent RDMA-enabled, single and dual-port network adapter with advanced application offload capabilities for Web 2.0, Cloud, Storage, and Telco platforms.

    ConnectX-5 Ethernet adapter cards provide high performance and flexible solutions with up to two ports of 100GbE connectivity and 750ns latency. For storage workloads, ConnectX-5 delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads. ConnectX-5 adapter cards also bring advanced Open vSwitch offloads to telecommunications and cloud data centers to drive extremely high packet rates and throughput with reduced CPU resource consumption, thus boosting data center infrastructure efficiency.

    ConnectX-5 adapter cards are available for PCIe Gen 3.0 and Gen 4.0 servers and provide support for 1, 10, 25, 40, 50 and 100 GbE speeds in stand-up PCIe cards, OCP 2.0, and OCP 3.0 form factors. ConnectX-5 cards also offer advanced NVIDIA Multi-Host and NVIDIA Networking Socket Direct technologies.



    Technology Ethernet
    Max Speed 25GbE
    Connector Type SPF28
    ECCN 5A991
