NVIDIA RTX 4000 SFF Ada Generation + HW Sync

NVIDIA RTX™ 4000 SFF Ada Generation + HW Sync

  • Description


    Power for Endless Performance

    In recent years, the demand for smaller footprint workstations has been skyrocketing, fueled by an array of factors, including cutting-edge hardware advancements, the extreme miniaturization of components, an increase in remote and mobile workforces, and the need for more energy efficient solutions suited for space available in modern offices and data centers. To meet this growing demand, NVIDIA has introduced the NVIDIA RTX™ 4000 SFF Ada Generation, the most powerful GPU on the market for Small Form Factor (SFF) workstations. Built on the revolutionary NVIDIA Ada Lovelace GPU architecture, the RTX 4000 SFF Ada brings new levels of performance, features, and capabilities to compact workstations, continuing to drive the evolution of visual computing for professionals. Designed for the needs of artists, architects, designers, and engineers across industries, the RTX 4000 SFF Ada is the ultimate compact computing solution to help you take your work to the next level

    The NVIDIA Quadro Sync II board synchronizes up to 4 RTX NVIDIA RTX 4000 SFF Ada boards for 16 synchronized displays per Sync II, and with two Sync II cards per system, up to 8 RTX 4000 SFF Ada GPUs per chassis, for a total of 32 synchronized displays per system. The NVIDIA Quadro Sync II, combined with NVIDIA RTX 4000 SFF Ada powered graphics, sets an high price/performance standard for professional synchronized display deployments requiring unparalleled rendering and graphics performance, all with breakthrough possibilities real-time ray tracing and AI can provide.

    NVIDIA RTX a6000


    Architecture NVIDIA Ada Lovelace Architecture
    Process Size 4nm NVIDIA Custom Process | TSMC
    Die Size 294.5 mm2
    Transistors 35.8 Billion
    CUDA Cores 6144
    Tensor Cores 192 | Gen 4
    RT Cores 48 | Gen 3
    FP32 Performance 19.2 TFLOPS
    Tensor Performance 306.8 TFLOPS
    RT Core Performance 44.3 TFLOPS
    GPU Memory 20 GB GDDR6 ECC
    Memory Interface 160-bit
    Memory Bandwidth 320 GB/s
    Display Connectors mDP 1.4a (4)
    Form Factor 2.7” H x 6.6” L | Dual Slot
    Thermal Solution Active Fansink
    AR/MR/VR/XR Capable Yes
    NVIDIA 3D Vision and 3D Vision Pro Support via Optional 3-pin mini-DIN
    Frame Lock Compatible with NVIDIA Quadro Sync II
    Maximum Power Consumption 70W | No Auxiliary Power Required
    NVENC | NVDEC 2x | 2x | Includes AV1 Encode and Decode
    NVIDIA RTX 4000 SFF Ada Generation + HW Sync Use Cases

    Digital Signage Solutions

    • Create impressive and eye-catching digital signage solutions consisting of large numbers of synchronized displays or projectors.
    • Use multiple systems with synchronized display outputs to create massive display walls, with interactivity if desired.

    Manufacturing Solutions

    • Designers can create sophisticated visualization systems for collaborative design, design reviews, and retail locations.
    • Real-time ray tracing with an AI assist rendering performance opens new vistas in interactive photorealistic design across manufacturing workflows.

    Media and Entertainment Solutions

    • Broadcasters can synchronize graphics and video for broadcast solutions, virtual sets, and on-air graphics
    • Create scalable, manageable, and versatile visualization solutions for entertainment outlets or sporting and live events, with hardware synchronized displays or projectors for artifact-free displays.

    AEC Solutions

    • Use multiple projectors or monitors to review design concepts or changes at scale.
    • Fuse design, BIM and visualization into a unified workflow environment, enhanced with real-time ray tracing and AI.

    Visual Simulation Solutions

    • Create flight, mission, training or other simulations that circle the globe seamlessly without limitations to altitude, setting, or detail.
    • Connect multiple displays or projectors to realize a 360-degree field of view.
    • NVIDIA Quadro Sync II connects multiple RTX 4000 SFF Ada board-based systems for cost-reduced multi-display or multi-projector simulation, visualization, virtual set or digital signage environments, all with NVIDIA RTX real-time rendering and AI enhanced capabilities and performance.

    PNY Logo

    Contact for additional information.

  • Features

    NVIDIA RTX 4000 SFF Ada Generation + HW Sync


    NVIDIA Ada Lovelace Architecture

    NVIDIA RTX 4000 SFF Ada is the most powerful dual slot, low profile workstation GPU offering high-performance, real-time ray tracing, AI-accelerated compute, and professional graphics rendering, all of this in a compact design with unmatched performance. Building upon the major SM enhancements from the Ada Lovelace GPU, the NVIDIA Ada Lovelace architecture provides more cores, higher clocks, and a larger L2 cache for more performance to enhance ray tracing operations, tensor matrix operations, and frame rates with DLSS 3.0.

    CUDA Cores

    The NVIDIA Ada Lovelace architecture-based CUDA Cores offer more than 2X the single-precision floating point (FP32) throughput compared to the previous generation, providing significant performance improvements for graphics workflows such as 3D model development and compute for workloads such as desktop simulation for computer-aided engineering (CAE). The NVIDIA RTX 4000 SFF Ada enables two FP32 primary data paths, doubling the peak FP32 operations.

    Third Generation RT Cores

    Incorporating 3rd generation ray tracing engines, NVIDIA Ada Lovelace architecture-based GPUs provide incredible ray-traced rendering performance. A single RTX 4000 SFF Ada board can render complex professional models with physically accurate shadows, reflections, and refractions to empower users with instant insight. Working in concert with applications leveraging APIs such as NVIDIA OptiX, Microsoft DXR, and Vulkan ray tracing, systems based on the RTX 4000 SFF Ada will power truly interactive design workflows to provide immediate feedback for unprecedented levels of productivity. The NVIDIA RTX 4000 SFF Ada features up to 2X faster ray-triangle intersection throughput compared to the previous generation.

    Fourth Generation Tensor Cores

    Specialized for deep learning matrix multiply and accumulate math operations at the heart of neural network training and inferencing functions, the RTX 4000 SFF Ada includes enhanced Tensor Cores that accelerate more data types and still support the Fine-Grained Structured Sparsity feature that delivers more than 2X throughput for tensor matrix operations compared to the previous generation. New Tensor Cores will accelerate new FP8 precision modes. Independent floating-point and integer data paths allow more efficient execution of workloads using a mix of computation and addressing calculations.

    PCIe Gen 4

    The RTX 4000 SFF Ada supports PCI Express Gen 4, which provides double the bandwidth of PCIe Gen 3, improving data-transfer speeds from CPU memory for data-intensive tasks like AI and data science.

    Higher Speed GDDR6 Memory

    Built with 20GB GDDR6 memory, the RTX 4000 SFF Ada provides an ideal memory footprint to address datasets and models in latency-sensitive professional applications and at volume.

    Error Correcting Code (ECC) on Graphics Memory

    Meet strict data integrity requirements for mission-critical applications with uncompromised computing accuracy and reliability for workstations.

    Fifth Generation NVDEC Engine

    NVDEC is well suited for transcoding and video playback applications for real-time decoding. The following video codecs are supported for hardware-accelerated decoding: MPEG-2, VC-1, H.264 (AVCHD), H.265 (HEVC), VP8, VP9, and AV1 video formats. Video encoding at 8K/60 will be achievable for professional video editing.

    Eighth Generation NVENC Engine

    NVENC can take on the most demanding 4K or 8K video encoding tasks to free up the graphics engine and the CPU for other operations. The RTX 4000 SFF Ada provides better encoding quality than software-based x264 encoders. The RTX 4000 SFF Ada incorporates AV1 video encoding which is 40% more efficient than H.264 encoding for 4K HDR video. AV1 will provide better quality at the same bitrate bandwidth.

    Graphics Preemption

    Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.

    Compute Preemption

    Preemption at the instruction level provides finer-grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.


    NVIDIA Mosaic Technology

    Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

    Mini DisplayPort 1.4a

    Support up to four 5K monitors at 60Hz, or dual 8K displays at 60Hz per card. The RTX 4000 SFF Ada supports HDR color for 4K at 60Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode. Each Mini DisplayPort connector can drive ultra-high resolutions of 4096 x 2160 at 120 Hz with 30-bit color.

    NVIDIA RTX™ Desktop Manager

    Gain unprecedented end-user control of the desktop experience for increased productivity in a single large display or multi-display environments, especially in the current age of large, widescreen displays.

    Included NVIDIA Quadro Sync II

    Synchronize the display and image output of up to 32 displays from 8 GPUs (connected through two Sync II boards) in a single system, reducing the number of machines needed to create an advanced video visualization environment.

    Frame Lock Connector Latch

    Each frame lock connector is designed with a self-locking retention mechanism to secure its connection with the frame lock cable to provide robust connectivity and maximum productivity.

    OpenGL Quad Buffered Stereo Support

    Provide a smooth and immersive 3D Stereo experience for professional applications.

    Ultra-High-Resolution Desktop Support

    Get more Mosaic topology choices with high-resolution display devices with a 32K Max desktop size.

    Professional 3D Stereo Synchronization

    Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to an NVIDIA RTX professional graphics card.


    NVIDIA RTX Experience

    NVIDIA RTX Experience delivers a suite of productivity tools to your desktop workstation, including desktop recording in up to 8K, automatic alerts for the latest NVIDIA RTX Enterprise driver updates, and access gaming features. The application is available for download here.

    NVIDIA CUDA Parallel Computing Platform

    Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC, and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics.

    Unified Memory

    A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.

    NVIDIA GPUDirect for Video

    GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.

    NVIDIA Enterprise-Management Tools

    Maximize system uptime, seamlessly manage wide-scale deployments, and remotely control graphics and display settings for efficient operations.

  • Specifications

    NVIDIA RTX 4000 SFF + HW Sync


    Architecture NVIDIA Ada Lovelace Architecture
    Process Size 4nm NVIDIA Custom Process | TSMC
    Transistors 28.3 Billion
    Die Size 294.5 mm2
    Transistors 35.8 Billion
    CUDA Cores 6144
    Tensor Cores 192 | Gen 4
    RT Cores 48 | Gen 3
    Single Precision Performance 38.7 TFLOPS
    RT Core Performance 75.6 TFLOPS
    FP32 Performance1 19.2 TFLOPS
    Tensor Performance1 306.8 TFLOPS2
    RT Core Performance1 44.3 TFLOPS
    GPU Memory 20 GB GDDR6 ECC
    Memory Interface 160-bit
    Memory Bandwidth 320 GB/s
    Display Connectors mDP 1.4a (4)3
    Graphics Bus PCI Express 4.0 x16
    Form Factor 2.7” H x 6.6”L | Low Profile Dual Slot
    Thermal Solution Active Fansink
    AR/MR/VR/XR Capable Yes
    NVIDIA 3D Vision and 3D Vision Pro Support via Optional 3-pin mini-DIN
    Frame Lock Compatible with NVIDIA Quadro Sync II
    NVLink Not Supported
    Maximum Power Consumption 70W | No Auxiliary Power Required
    NVIDIA Quadro Sync II Connectors RJ45 Frame Lock (2) + BNC Genlock
    Sync II Status Bracket LEDs Displays NVIDIA Quadro Sync II status

    1 Peak rates are based on GPU boost clock.

    2 Effective FP8 TFLOPS using the new sparsity feature.

    3 Display ports are on by default for the RTX 4000 SFF Ada Generation.


    • MDP-HDMI-THREE-PCK connects the NVIDIA RTX 4000 SFF Ada to HDMI displays at resolutions up to 4K with PNY Part Number MDP-HDMI-THREE-PCK. The three included DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
    • MDP-HDMI-SINGLE-PCK connect the NVIDIA RTX 4000 SFF Ada to an HDMI display at resolutions up to 4K with PNY Part Number MDP-HDMI-SINGLE-PCK. The included DisplayPort to HDMI adapter is recommended by NVIDIA, provides outstanding image quality, and is built to professional standards.


    • Microsoft Windows 11 (64-bit)
    • Microsoft Windows 10 (64-bit)
    • Microsoft Windows 8.1 and 8 (64-bit)
    • Linux – Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit)


    • Intel Core i5, i7, i9, or Xeon processor or later
    • AMD Ryzen or Epyc class processor or later
    • PCI Express 4.0 x16 (preferred) expansion slot
    • System memory greater than or equal to GPU memory, twice the GPU memory recommended
    • Internet connection for driver installation
    • DisplayPort 1.4a (preferred), HDMI, or DVI compatible display(s)

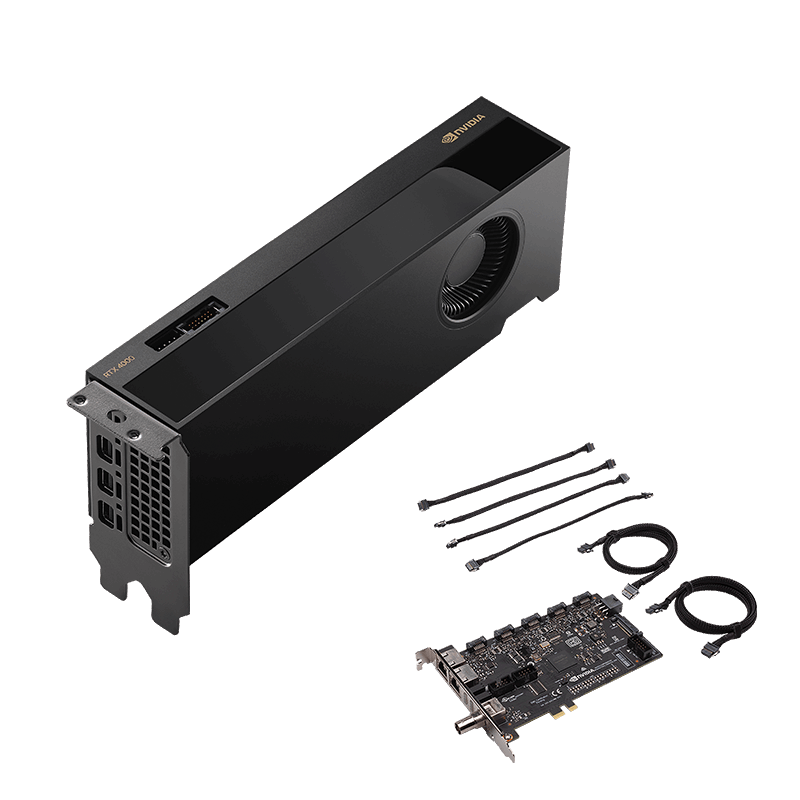

    • NVIDIA RTX 4000 SFF Ada Generation professional graphics card
    • 4x mDP to DP adapters
    • NVIDIA Quadro Sync II board
    • Four 12” (30.5 cm) sync to GPU or sync-to-sync connector cables
    • Two 24” (61 cm) sync to GPU or sync-to-sync connector cables
    • Printed NVIDIA Quadro Sync II Quick Start Guide
